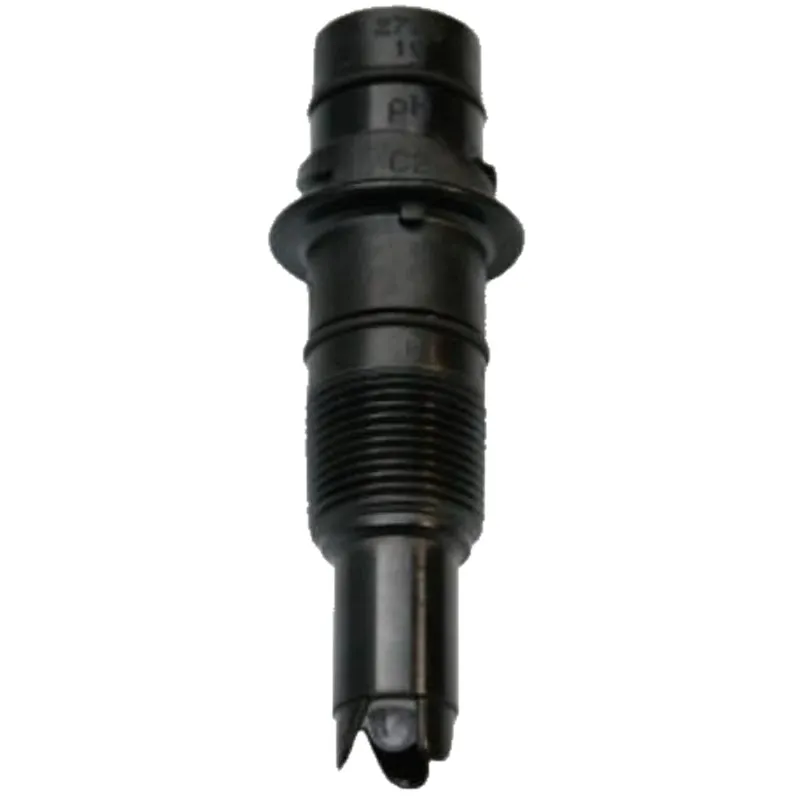

GF Signet 3-2726-LC-11 [159001560] DryLoc pH Electrode, ISO, 3K

GF Signet 3-2726-LC-11 [159001560] DryLoc pH Electrode, ISO, 3K
GF Signet 3-2726-LC-11 [159001560] DryLoc pH Electrode, ISO, 3K
0 reviews • Write a review
from
Rp.14,500,0000
Georg Fischer / GF Signet Georg Fischer / GF Signet
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

GF Signet 3-2726-LC-11 pH Electrode, flat surface, 3/4" NPT threads. The Signet 2724-2726 pH and ORP Electrodes features a patented reference electrode design and uses the unique foul-proof patented DryLoc® connector. The large area PE reference junction and pathway is constructed to increase the total reference effectiveness and ensures long service life.

The DryLoc® connector with corrosion resistant gold plated contacts readily connects the sensor to the mating 2760 preamplifier or the 2750 sensor electronics. The robust Ryton® threaded sensor body and choice of flat pH, bulb pH, or flat ORP sensing elements provides broad range of chemical compatibility for a wide variety of applications. There are two optional pH sensing versions available, HF and LC. The HF version is for applications where traces of hydrofluoric acid (2% or less) will attack standard pH glass in levels of pH 6 and below. The LC version can be used for low conductivity fluids 20 - 100 μS/cm nominal and below 20 μS when mounted under controlled conditions.

The quick temperature response is available in either a PT1000 or 3 KΩ temperature sensor and allows compatibility with all Signet pH/ORP instruments. The 2724-2726 electrodes are general-purpose sensors ideal for a wide range of applications. The sensors incorporate ¾ inch NPT or ISO 7/1-R 3/4 threads for installing into standard pipe-tees. They can also be mounted directly into Signet standard fittings, DN15 to DN100 (½ to 4 inch).

Features:

  • Sensing Element: Bulb pH - Low conductivity
  • Temperature Sensor: 3K-use w/2760 preamp for 8750/5700 transmitter
  • Threads: ISO

What's In The Box:

  • (1) GF Signet 3-2726-LC-11 DryLoc pH Electrode, ISO, 3K

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice
