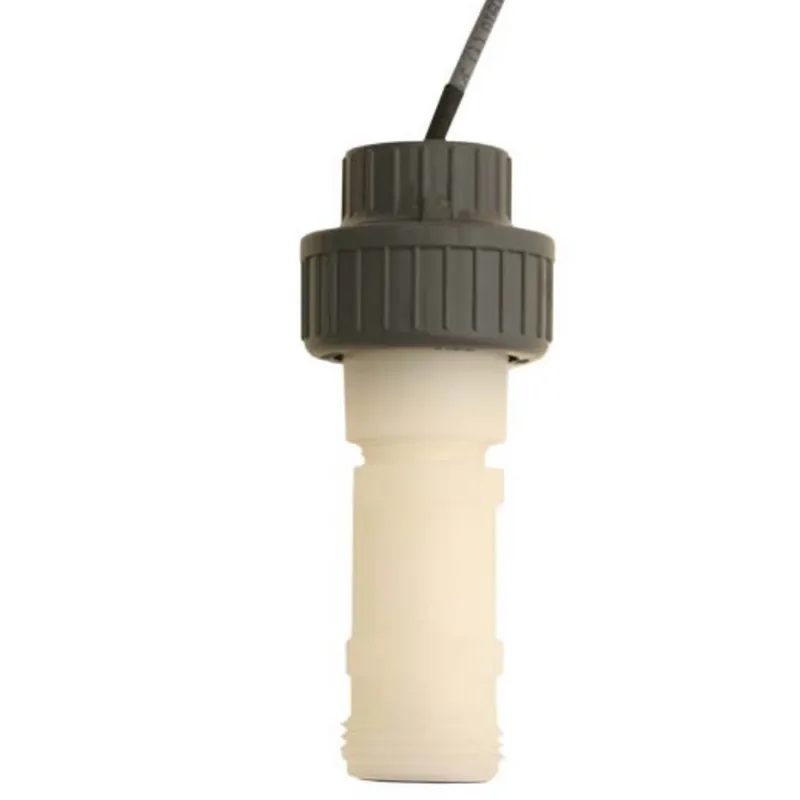

GF Signet 2250 Submersible Hydrostatic Pressure Sensor For Level and Depth Control (8 Models In This Product Family)

GF Signet 2250 Submersible Hydrostatic Pressure Sensor For Level and Depth Control (8 Models In This Product Family)
GF Signet 2250 Submersible Hydrostatic Pressure Sensor For Level and Depth Control (8 Models In This Product Family)
from
Rp.35,207,840
 Configure Options

The GF Signet 2250 Submersible Pressure Sensor is for level and depth control has a one-piece injection molded PVDF body and ceramic diaphragm for superior compatibility in corrosive liquids. Utilizing hydrostatic pressure, the 2250 disregards false level signals from steam vapors, foam or any other debris on the liquid surface. Two pressure ranges allow for optimal resolution matched to your sensing needs. Solid state circuitry eliminates drift (no internal potentiometers). These sensors are available with a proprietary digital (S3L) output, or 4 to 20 mA output. The extended cable and capillary tubing with the union connection and a customer supplied conduit, allow submersion in process vessels.

  PVC Union connection - ¾ in. pipe connection 0 Item Selected
Model
Product Name
Price
Available
Quantity
GF Signet 3-2250-11L [159 001 241] 2250 Hydrostatic Level Sensor, S3L Output, 3/4" NPT Connection, 0 - 3.4 bar (0-50 psi), 35 m (115 ft) Range
159 001 241
Rp.35,207,840
4 - 6 WEEKS
GF Signet 3-2250-11U [159 001 242] 2250 Hydrostatic Level Sensor, S3L Output, 3/4" NPT Connection,  0 - 0.7 bar (0-10 psi), 7 m (23 ft) Range
159 001 242
Rp.35,207,840
4 - 6 WEEKS
GF Signet 3-2250-21L [159 001 247] 2250 Hydrostatic Level Sensor, 4-20mA Output, 3/4" NPT Connection,  0 - 3.4 bar (0-50 psi), 35 m (115 ft) Range
159 001 247
Rp.39,562,400
4 - 6 WEEKS
GF Signet 3-2250-21U [159 001 248] 2250 Hydrostatic Level Sensor, 4-20mA Output, 3/4" NPT Connection,  0 - 0.7 bar (0-10 psi), 7 m (23 ft) Range
159 001 248
Rp.39,562,400
4 - 6 WEEKS
  PVC Union connection - Metric pipe connector 0 Item Selected
