General Tools DSM402SD [DSM402SD] Class 2 Sound Level Meter

General Tools DSM402SD [DSM402SD] Class 2 Sound Level Meter
General Tools DSM402SD [DSM402SD] Class 2 Sound Level Meter
0 reviews • Write a review
from
Rp.9,800,000
  • Brand: General Tools
  • Part Number: DSM402SD
  • Availability: 3 - 4 WEEKS
  • Last Updated: 28 May 2024
General Tools General Tools
Add to Cart
Add to Wish List Compare this Product
This product has a minimum quantity of 2
Tags: AEMC , CA832 , 2121.23 , Sound Level Meter

The DSM402SD is a general-purpose handheld instrument that measures the noise level of an environment or the amplitude of sound produced by a piece of machinery. Using an integrated 0.5 in. condenser microphone, the meter can measure sound levels from 30 to 130 dB with a resolution of 0.1 dB and show the results on a front-panel LCD.

Several features and capabilities enhance the meter’s versatility. Among them are the option to make measurements using autoranging or any of three manual ranges, the ability to hold readings and display maximum and minimum readings, and user-settable measurement parameters such as frequency weighting (using the “A” and “C” standards) and time weighting (fast or slow). The DSM402SD can be calibrated by an optional laboratory instrument.

Because it is microprocessor-based, the DSM402SD can make full use of the portability, reliability and large storage capacities that SD memory cards offer. Measurements can be made automatically at any sampling rate between one second and one hour. After time stamping and storing the measurements on an SD card plugged into the instrument (a process called data logging), the user can remove the card and plug it into to a laptop or desktop computer either directly or via a USB card reader. The data logs are stored on the card as files with the .xls extension, which can be opened by Microsoft’s Excel application. The DSM402SD has a backlit 2-1/2 in. diagonal display and is powered by six “AA” batteries or an optional 9V AC/DC adapter.

Features:

  • Big (2.5 in. diagonal) front-panel green backlit LCD is easy to read
  • Makes measurements in autoranging mode or within any of three manual ranges
  • Displays maximum and minimum readings and holds any reading
  • Performs automatic data logging at sampling time settable from 1 second to 1 hour
  • Also supports continuous manual data logging and changing of card storage location
  • Outputs Excel-compatible data logs
  • Accepts SD memory cards of up to 16 GB capacity
  • Auto power off function that can be disabled to enable long-term data logging
  • Powered by six “AA” batteries or optional 9V AC/DC adapter

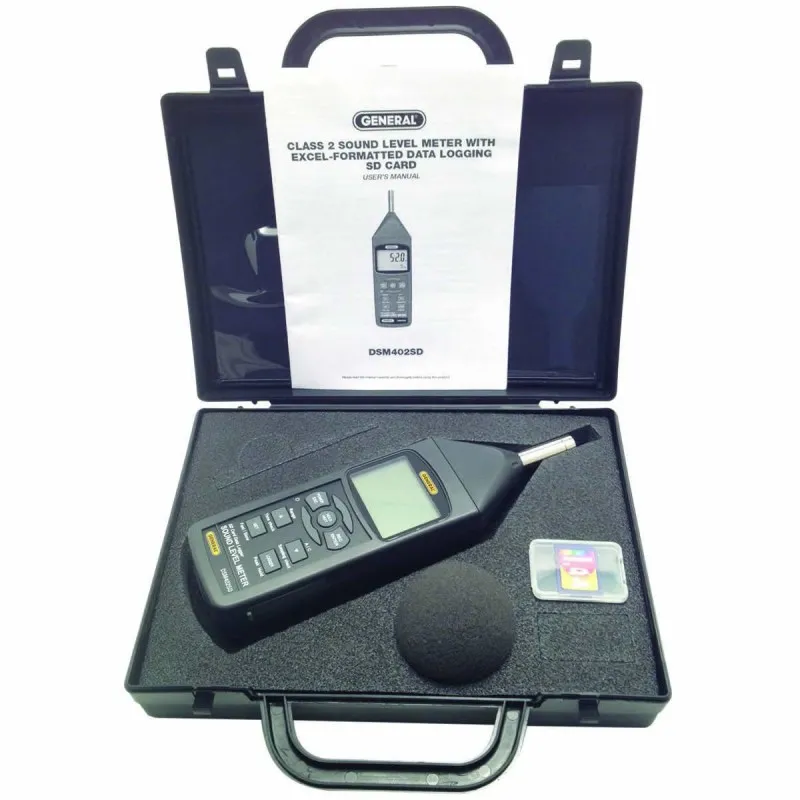

What's In The Box:
  • (1) Hard carrying case
  • (1) Sound wind shield ball
  • (1) 2 GB SD memory card
  • (1) User's manual

Brochure/Datasheet

Instruction manual
