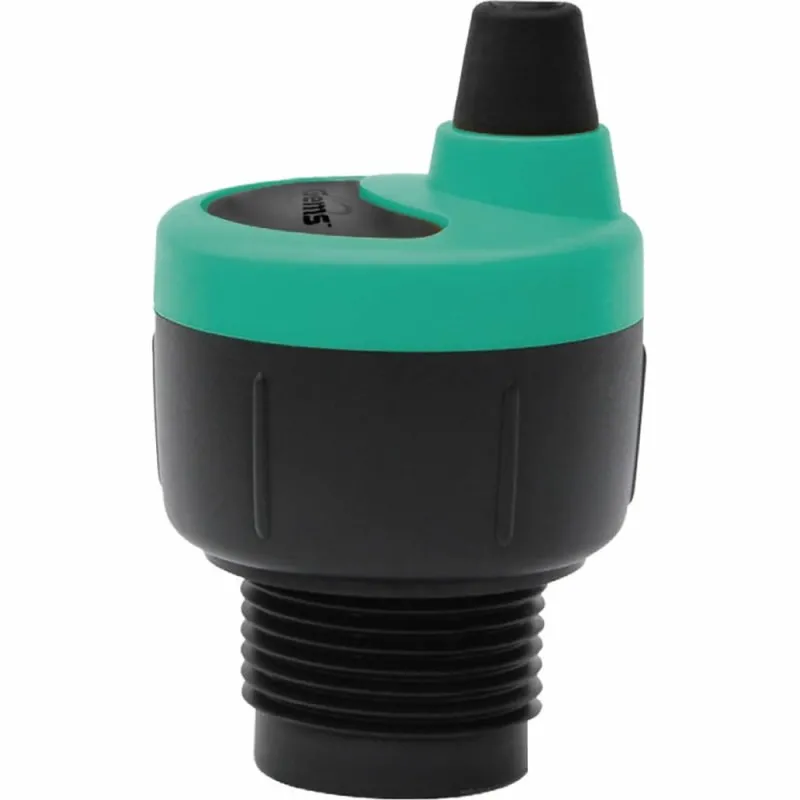

Gems UCL-510 [225100] Ultrasonic Level Sensor, 49.2” (1.25 m) 24 VDC 1" NPT

Gems UCL-510 [225100] Ultrasonic Level Sensor, 49.2” (1.25 m) 24 VDC 1" NPT
Gems UCL-510 [225100] Ultrasonic Level Sensor, 49.2” (1.25 m) 24 VDC 1" NPT
from
Rp.24,500,0000
Ex Tax: Rp.24,500,0000
  • Brand: Gems Sensors
  • Part Number: 225100
  • Availability: 3 - 4 WEEKS
  • Last Updated: 28 May 2024
Gems Sensors Gems Sensors
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

Non-contact ultrasonic level sensor with no moving parts, built for challenging fluid measurement in small tank applications.
The The Gems UCL-510 Ultrasonic Level Sensor is built for general purpose, small tank applications 49.2" (1250 mm) or less and offers switch, controller and transmitter capabilities in one multi-function transmitter. The UCL-510 is suited for corrosive and dirty applications and is virtually maintenance free. The UCL-510 combines 4 relays, 4-20mA output and pump/valve control in one small sensor.

The configuration software, supplied with the sensor, provides flexible system integration or retrofit of existing level devices with configuration control. Integral level automation functions can further reduce system costs through the reduction of external control hardware. The analog output enables local tank level indication, remote PLC monitoring or automation fuctions. Gems UCL-510 is the non-contact solution for small tank level switch, control and measurement.

Gems UCL-510 Ultrasonic Level Transmitter Applications:

  • Water and waste water
  • Control automation
  • Chemical feed
  • Food and beverage
  • Acids, inks & paints
  • Slurries

Features:
  • PVDF transducer for corrosive liquid media
  • 1in NPT process mount
  • 2 to 49in (50 to 1245mm) level range
  • 0.125in (3mm) accuracy
  • 0.019in (0.5mm) resolution
  • 2in (5cm) beam width
  • 2in (5cm) dead band
  • 24VDC (loop) supply voltage
  • 400Ω max loop resistance
  • CE and cFMus approvals

                        What's In The Box:

                        • (1) Instruction manual

                        Brochure/Datasheet

                        Instruction manual
