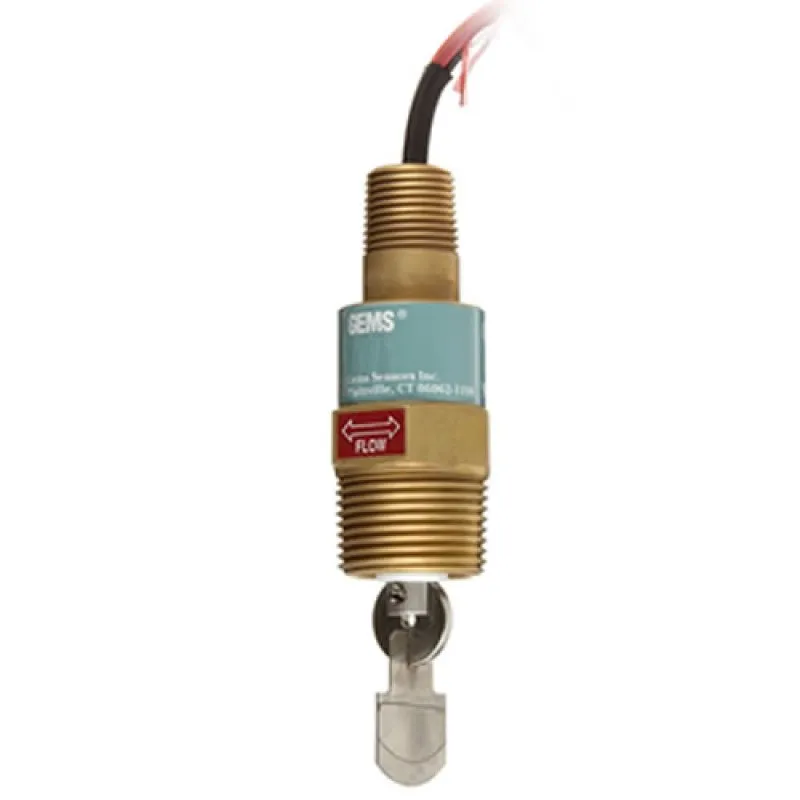

Gems FS-550 Series [30641] Flow Switch Paddle Type, Brass, 1" NPT Male

Gems FS-550 Series [30641] Flow Switch Paddle Type, Brass, 1" NPT Male
Gems FS-550 Series [30641] Flow Switch Paddle Type, Brass, 1" NPT Male
from
Rp.7,400,0000
Ex Tax: Rp.7,400,0000
  • Brand: Gems Sensors
  • Part Number: 30641
  • Availability: 4 - 6 WEEKS
  • Last Updated: 27 May 2024
Gems Sensors Gems Sensors
Add to Cart
Add to Wish List Compare this Product
This product has a minimum quantity of 2
Tags: Additel , Digital , Pressure , Calibrators

The Gems FS-550 series are high pressure, metal paddle flow switches that sense liquid flow in either direction to monitor flow/no-flow conditions. Featuring rugged brass or stainless steel bodies, the FS-550 utilizes a simple and reliable design suitable for operating temperatures from -30 to 300°F and line pressures up to 2000 psig. The FS-550 is available with a standard SPDT switch or an optional 3-pin J-box electrical connection.

The FS-550 series is for use in pipes from 1-1/4 to 4". The unit has two paddle lengths dependent upon pipe size. The short paddle, for 1/1/4" pipes has actuation (or de-actuation) rates from 5 to 29 gpm. The long paddle, for pipes from 1-1/2 to 4" has actuation (or de-actuation) rates from 15 to 52 gpm. Paddles are trimmed during installation to permit switch actuation at the desired flow rate. As flow increases in a pipe, the paddle of the switch pivots to move out of the liquid path, producing less than 3 psig (.21 bar) of pressure drop regardless of pipe size.

Features:

  • Unique Cam Design Assures Low Pressure Drop and Does not Require Bellows, Seals, or Mechanical Linkages
  • Minimum In-Line Restriction
  • Pipe Line Size: 1 1/4" and up
  • Primary Construction Material: Stainless Steel or Brass
  • Maximum Operating Pressure: 2000 PSIG
  • Pressure Drop: 3 PSIG Maximum
  • Operating Temperature: -30 to 300°F
  • Set Point Accuracy: ± 25%
  • Switch: SPDT, 20 VA
  • Repeatability: ± 5%

What's In The Box:

  • (1) Instruction manual

Brochure/Datasheet

Instruction manual

    Note: Prices are not binding , subject to change without prior notice
