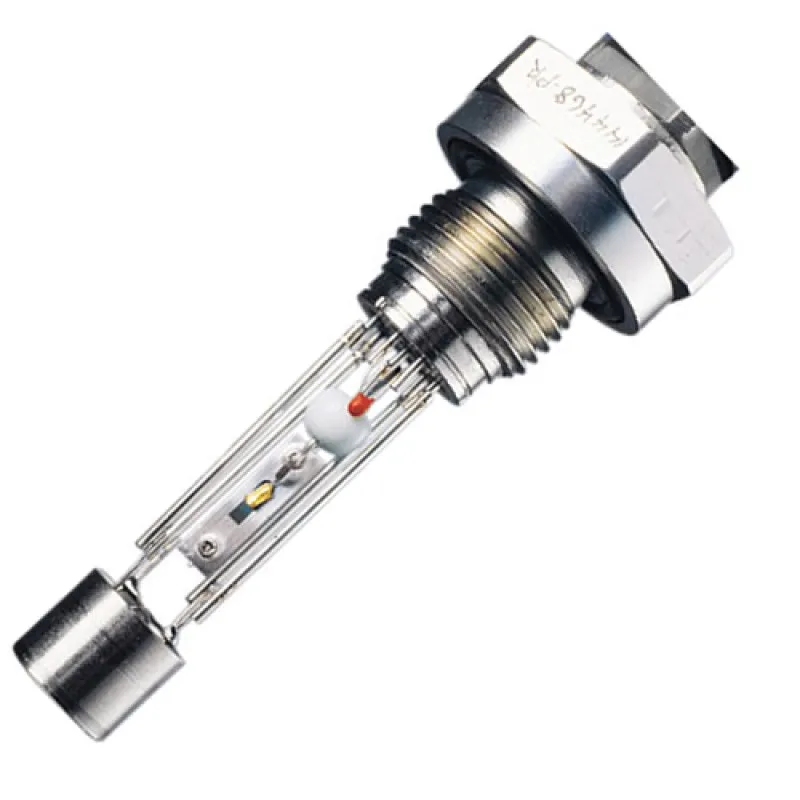

GE Panametrics TF Series [TF-2R-000-10000] Probe, 3/4" Straight Thread Process Connection w/O-Ring Seal*DISCONTINUED SEE MISP-2*

GE Panametrics TF Series [TF-2R-000-10000] Probe, 3/4" Straight Thread Process Connection w/O-Ring Seal*DISCONTINUED SEE MISP-2*
GE Panametrics TF Series [TF-2R-000-10000] Probe, 3/4" Straight Thread Process Connection w/O-Ring Seal*DISCONTINUED SEE MISP-2*
0 reviews • Write a review
from
Rp.51,150,0000
GE Measurement & Control GE Measurement & Control
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

GE Infrastructure Sensing aluminum oxide moisture probes have set the standard of perfromance and value in industrial moisture measurement for more than 40 years.

In use, TF Series probes are coupled to GE hygrometer consoles by an interconnecting cable. Ease of use, wide measurement range and rigorous calibration standards make these systems the preferred choice for industrial moisture measurement worldwide.

Built-In Pressure and Temperature Measurement
The three-function TF Series probe measure pressure and temperature, in addition to moisture content. This is because accurate determination of many moisture measurement parameters requires knowledge of the process temperature and pressure. GE Infrastructure Sensing eliminated the inconvenience and limitations associated with installing and using separate temperature and pressure sensors by building that capability directly into the TF Series probe. A nonlinear negative temperature coefficient (NTC) thermistor to measure temperature from -30 to 70°C (-22 to 158°F) and choice of five solid-state piezoresistive transducers are available to measure pressures up to 5,000 psig (345 bar).

Temperature and pressure input data are used by Moisture Image Series 1 and 2 and Moisture Monitor Series 3 analyzers to determine parameters such as parts per million (ppm) and relative humidity.

True Absolute Humidty Sensors
Film thickness of the oxide layer is critical to the performance of this type of sensor. GE Infrastructure Sensing manufactures sensors with an oxide film thickness that causes them to exhibit true absolute humidity rather than relative humidity response. This critical film thickness also gives the GE TF Series probe quick response and exceptional calibration stability.

Rigorous Calibration Standards Traceable to the NIST
The aluminum oxide sensor of each TF Series probe is individually calibrated in one of the world's most advanced moisture calibration facilities. Developed over several decades, this facility generates precisely known moisture concentrations, traceable to the National Institure of Standards and Technology (NIST), to which each sensor is exposed during the calibration process.

All data is gathered and stored by a dedicated computer system. Calibrations are repeated over a period of many months to ensure the stability of each individual moisture probe. Only those probes which meet GE specifications for accureacy and stability are shipped to customers.

Installation Flexibilty
GE TF Series probes are designed to be located at the process, exactly where the measurement is needed. Operating temperature is -110° to 70°C (-166° to 158°F). The probe can withstand pressures up to 5,000 psig (345 bar). No minimum flow rate is required.

In some cases, TF Series probes can be installed directly in the processs line. More often, to assure the integrity of the moisture measurement, a sample conditioning system is recommended.

GE Infrastructure Sensing designs and manufactures a line of reliable, field-proven conditioning systems to meet the demands of most applications. If required, a special system will be designed to meet unique application demands.

Features:

  • Intrinsically safe
  • Ambient to ppb moisture measurement
  • Built-in temperature and pressure sensors (optional)
  • Calibrations traceable to NIST

What's In The Box:

  • (1) Manual
  • (1) GE Panametrics TF Series [TF-2R-000-10000] Probe, 3/4" Straight Thread Process Connection w/O-Ring Seal

Brochure/Datasheet

Instruction manual
