Name: Druck UPS III [UPS-III] mA and Voltage Calibrator*DISCONTINUED SEE UPS4E*
Brand: PT. Indomultimeter Test Instrument
Availability: InStock
Rating: 5 (1 reviews)

Druck UPS III [UPS-III] mA and Voltage Calibrator*DISCONTINUED SEE UPS4E*

0 reviews • Write a review

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Additel , Digital , Pressure , Calibrators

Description

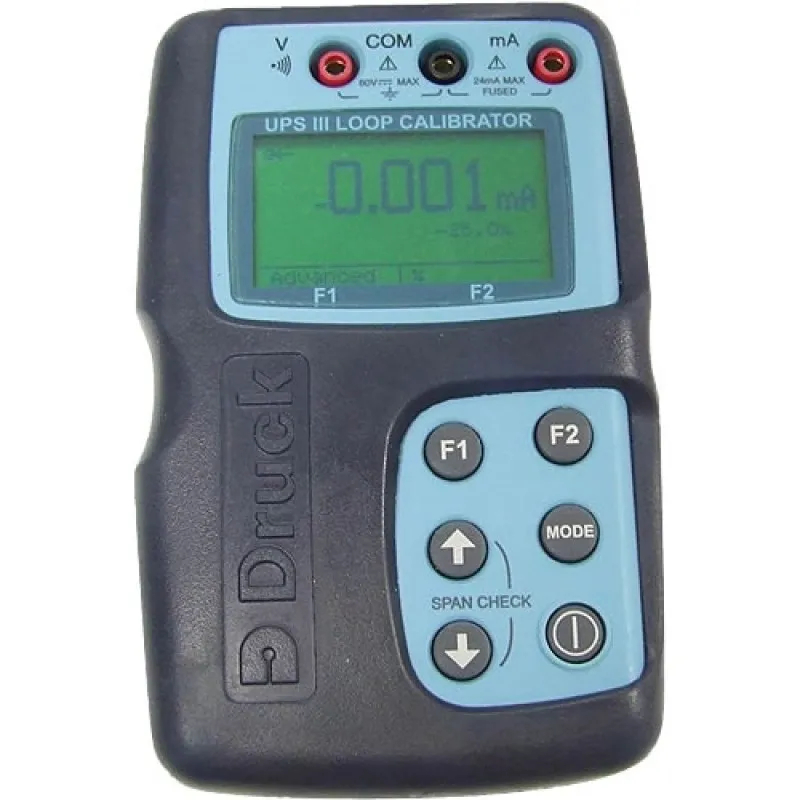

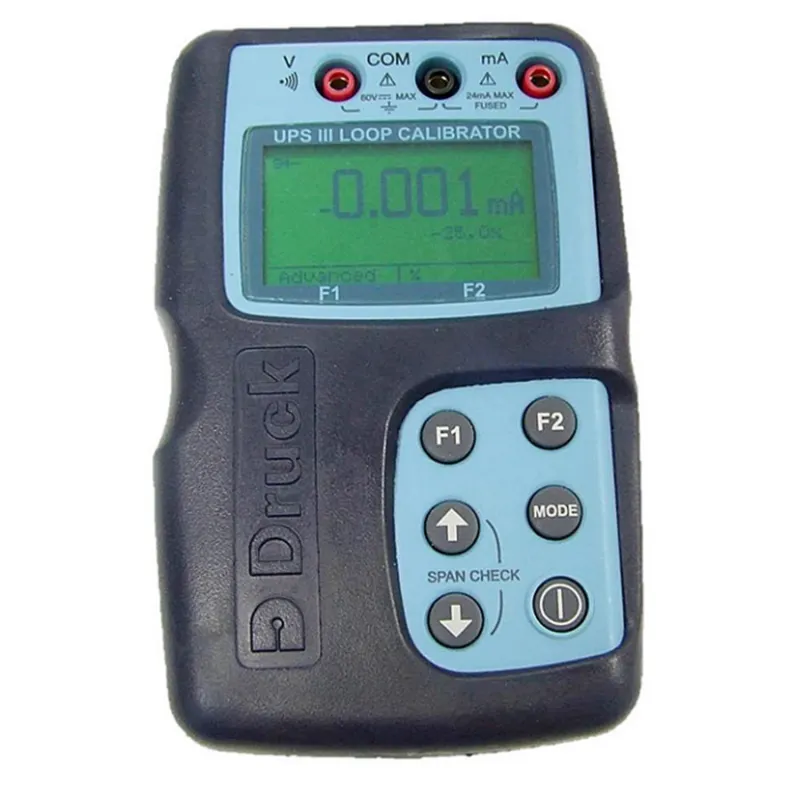

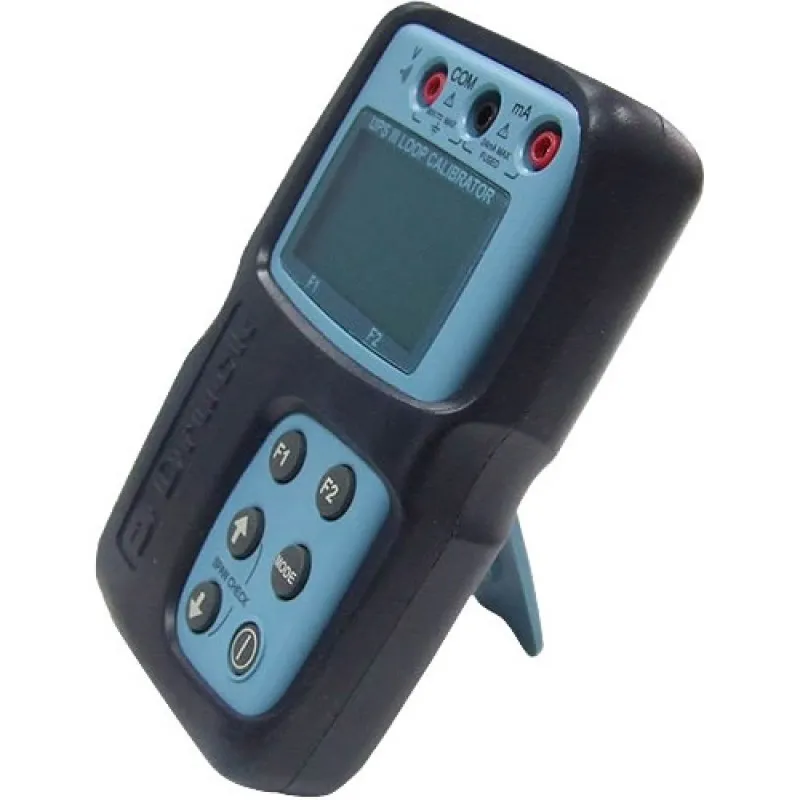

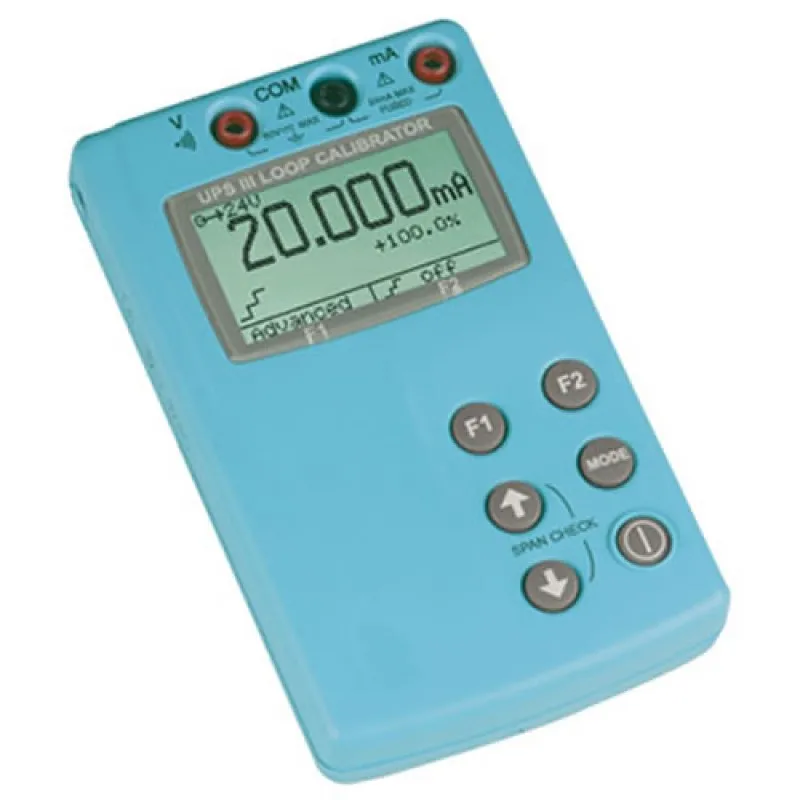

The Druck UPS III (UPS-III) is a compact, rugged loop calibrator designed for maintenance and testing of 4–20 mA loops. It offers 0.01% accuracy, measures/sources 0–24 mA, and features a menu-driven graphic display with simultaneous % and mA readout. Key features include HART compatibility, 60V DC measurement, and specialized valve test functions. The Druck UPS III loop calibrator is rugged and extremely compact. Weighing just 275g, the HART compatible Druck UPS III loop calibrator measures only 77 x 129mm. The Druck UPS III loop calibrator's small size, easy-to-read display, and simple-to-use time saving features make it an essential tool for loop calibration and troubleshooting, instrument maintenance, and valve set-up. The UPS III ships with a protective rubber boot. The measure / source range for the Druck UPS III loop calibrator is 0 to 24mA. In addition, 0 to 60Vdc can be measured for loop diagnostics and voltage output instrument maintenance. The accuracy of the Druck UPS III loop calibrator is 0.01% of reading, which is 20 times better than a typical DMM, and includes 12 month stability and temperature effects. Coupled with 0.001mA display resolution, the Druck UPS III loop calibrator provides optimum measurement certainty for even the most demanding applications. A broad range of specific time-saving features are enabled by the Druck UPS III loop calibrator's advanced microprocessor-based electronics and large menu-driven graphic display, unique in a product of this type and price. Features of the Druck UPS III loop calibrator include, for example, simultaneous mA/% value readout, either linear or percentage flow conversion. Step, span, and valve checks allow the user to step quickly through the Druck UPS III loop calibrator's linearity tests and zero / span adjustments. In valve mode, valve seating can be checked and the positioner set.
