Fluke Calibration E-DWT-H Electronic DW Test Kits

Fluke Calibration E-DWT-H Electronic DW Test Kits
Fluke Calibration E-DWT-H Electronic DW Test Kits
Fluke Calibration E-DWT-H Electronic DW Test Kits
Fluke Calibration E-DWT-H Electronic DW Test Kits
Fluke Calibration E-DWT-H Electronic DW Test Kits
Fluke Calibration E-DWT-H Electronic DW Test Kits
Fluke Calibration E-DWT-H Electronic DW Test Kits
from
Rp.1,109,580,592
  • Brand: Fluke Calibration
  • Part Number: 653
  • Availability: 6 - 8 WEEKS
  • Last Updated: 01 Sep 2025
 Configure Options

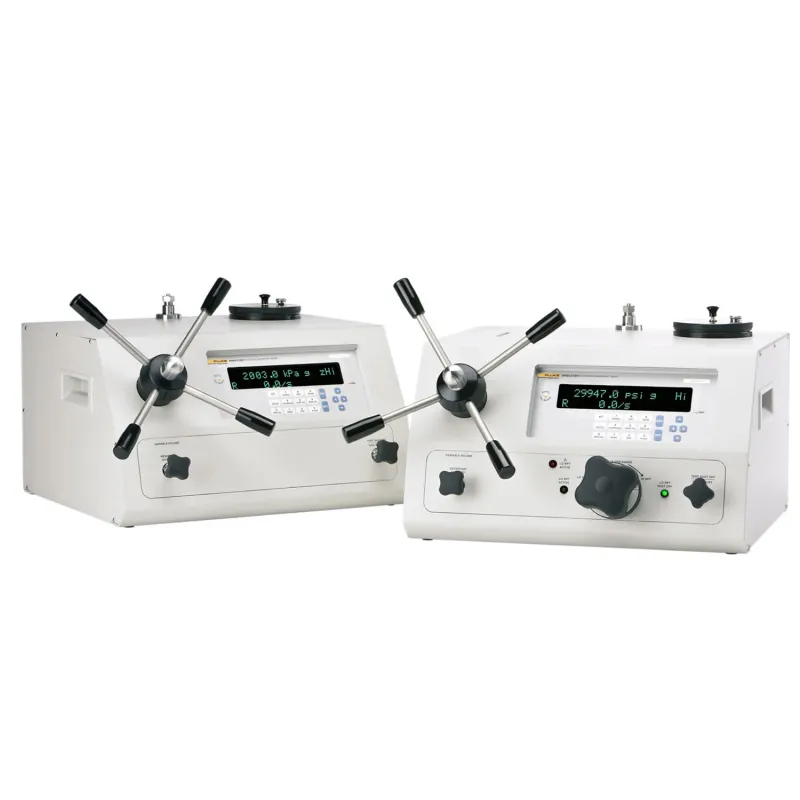

The Fluke Calibration E-DWT-H (formerly Pressurements) is a modern version of a traditional deadweight tester. Designed to replace mechanical, piston-cylinder and weight based deadweight testers; it's a lighter, easier-to-use alternative that is at home in the lab or in the field. The E-DWT-H is a complete hydraulic pressure calibration system that combines the features and convenience of digital measurement. The E-DWT-H offers precision, low measurement uncertainty and the stability over time of a conventional deadweight tester without the inconveniences associated with the piston-cylinders, weights, hand pumps, and interconnecting plumbing. There are no weights to load and unload and no need to correct for local gravity or ambient temperature. The AutoTest function allows operators to quickly define test points and adjust all of the range-dependent settings with a single function. The E-DWT-H can interface with a PC or laptop to allow for automated data acquisition while recalibration is possible via software. The E-DWT-H includes high quality hardware that allows easy system fill and prime, pressure generation and precise control up to 200 MPa (30,000 psi). The unit provides one year measurement uncertainty of ±0.02% of reading. It can be configured to provide this uncertainty from its full scale down to 1% of its range. An included vacuum fill kit allows the E-DWT-H to be filled with the user's choice of compatible fluid, while eliminating problematic air pockets from the test circuit. Also included is a test station adapter to mount just about any pressure device to be tested without using PTFE tape or wrenches.

  Product Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
Fluke Calibration E-DWT-H [6531-7M] Electronic Deadweight Tester  0.7 to 7 MPa (100 to 1,000 Psi)
6531-7M
Rp.1,109,580,592
6 - 8 WEEKS
Fluke Calibration E-DWT-H [6531-14M] Electronic Deadweight Tester Kit, 1.4 to 14 MPa (200 to 2000 psi)
6531-14M
Rp.1,109,580,592
6 - 8 WEEKS
Fluke Calibration E-DWT-H [6531-20M] Electronic Deadweight Tester Kit, 2 to 20 MPa (300 to 3000 psi)
6531-20M
Rp.1,109,580,592
6 - 8 WEEKS
Fluke Calibration E-DWT-H [6531-40M] Electronic Deadweight Tester Kit, 4 to 40 MPa (600 to 6000 psi)
6531-40M
Rp.1,109,580,592
6 - 8 WEEKS
Fluke Calibration E-DWT-H [6531-70M] Electronic Deadweight Tester Kit, 7 to 70 MPa (1000 to 10000 psi)
6531-70M
Rp.1,109,580,592
6 - 8 WEEKS
Fluke Calibration E-DWT-H [6531-140M] Electronic Deadweight Tester Kit, 14 to 140 MPa (2000 to 20000 psi)
6531-140M
Rp.1,228,521,520
6 - 8 WEEKS
Fluke Calibration E-DWT-H [6531-200M-B] Electronic Deadweight Tester Kit, 40 to 200 MPa (6000 to 30000 psi)
6531-200M-B
Rp.1,120,998,960
6 - 8 WEEKS
Fluke Calibration E-DWT-H [6532-70M] Electronic Deadweight Tester Kit, 0.7 to 70 MPa (100 to 10000 psi)
6532-70M
Rp.1,578,275,632
6 - 8 WEEKS
Fluke Calibration E-DWT-H [6532-140M] Electronic Deadweight Tester Kit, 1.4 to 140 MPa (200 to 20000 psi)
6532-140M
Rp.1,578,275,632
6 - 8 WEEKS
Fluke Calibration E-DWT-H [6532-200M-B] Electronic Deadweight Tester Kit, 4 to 200 MPa (600 to 30000 psi)
6532-200M-B
Rp.1,535,864,624
6 - 8 WEEKS
