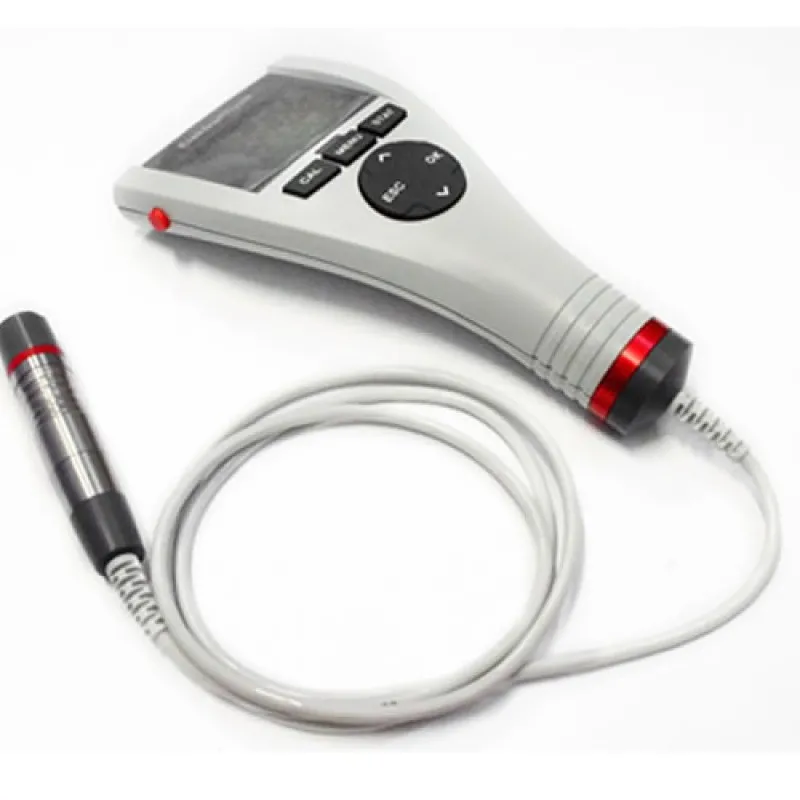

Elektro-Physik MiniTest 700 Series [MINITEST-735] Coating Thickness Gauge With Eternal Sensor fixed Probes Connected Via Cable

Elektro-Physik MiniTest 700 Series [MINITEST-735] Coating Thickness Gauge With Eternal Sensor fixed Probes Connected Via Cable
Elektro-Physik MiniTest 700 Series [MINITEST-735] Coating Thickness Gauge With Eternal Sensor fixed Probes Connected Via Cable
from
Rp.36,500,0000
Ex Tax: Rp.36,500,0000
  • Brand: ElektroPhysik
  • Part Number: MINITEST-735
  • Availability: 4 - 6 WEEKS
  • Last Updated: 05 Oct 2019
ElektroPhysik ElektroPhysik
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Additel , Digital , Pressure , Calibrators

The MiniTest 735 coating thickness gauge is the solution to all your coating thickness problems where a reliable finish and perfect product appearance play a major role for long-term value and success, e.g. in the automotive and shipbuilding industry, steel- and bridge construction or in the electroplating industry, to name a few industries.

The MiniTest 735 is ergonomically designed and its rounded shape allows the MiniTest gauge to fit perfectly into the palm of your hand. It also features a measuring speed setting option that allows adjustment to changing requirements for utmost efficiency and optimum productivity: taking many readings in a short time with medium precision or taking only a few readings with increased accuracy.

The MiniTest 735 facilitates non-destructive coating measurement of non-magnetic coatings (paint, synthetic material, chromium etc.) on ferromagnetic substrates (steel) and of insulating coatings (varnish, enamel, synthetic material, anodising aluminium etc.) on conductive substrates (aluminium, copper, austenitic stainless steel).

Its sensors perfectly compensate for irregular shaped surfaces thanks to the predefined calibration methods that are available to adapt to a wide range of different surface conditions and accuracy requirements.

The MiniTest 735 gauge is equipped with the new SIDSP® sensors. SIDSP® is a world wide leading technology for coating thickness sensors. With this new technology, another new benchmark for innovative coating thickness measurement has been set.

SIDSP® stands for Sensor-Integrated Digital Signal Processing: A technology where the signals are completely processed into digital form inside the sensor at the time and point of measurement. SIDSP® sensors are manufactured according to completely new state-of-the-art production techniques.

Unlike conventional techniques, the SIDSP® sensors create and control the excitation signals for the sensorhead inside the sensor. The return signals are directly digitally converted and processed at a 32 bits accuracy to give you the complete coating thickness value. For this technique, highly sophisticated methods of digital signal processing are used as known from modern telecommunication technologies (mobile phone networks) such as digital filters, base band converting, averaging, stochastic analysis, etc. This enables the user to achieve a signal quality and precision unmatched so far with analogue signal processing. The thickness value is digitally transmitted via the sensor cable to the display unit. Setting a new standard in coating thickness measurement, this technology offers decisive advantages and improvements compared to the commonly used analogue sensors..

The new SIDSP® sensors guarantee the following:

  • High stability of measuring signals
  • SIDSP® sensors’ characteristic curves feature high accuracy
  • SIDSP® sensors provide excellent adaptability
  • SIDSP® N and FN sensors compensate for substrate conductivity
  • SIDSP® sensors are highly insensitive to changes in temperature
  • SIDSP® sensors are wear-resistant
  • Future-oriented solutions

The delivery of the device includes the data transfer software MSoft 7 basic.

Features:

  • Includes Factory "Works" Certificate. NIST Certificate optional
  • Correct readings with interference free measurement with precise evaluation through SIDSP®
  • External Sensor
  • Automatic substrate identification with FN sensors
  • Efficient temperature compensation
  • High precision characteristic curves achieved during the manufacturing process by calibrating up
      to 50 calibration points
  • Large memory capacity for storing up to 10,000 readings
  • Readings and statistical values can be called-up individually
  • Easy menu-guided operation, 20 menu languages available
  • Measurement data can be transferred by Bluetooth or USB to PCs, tablets or smart phones.
  • Future-proof through downloadable sensor and gauge software updates
  • Audible and visual (red and green LED) alarms
  • Large, easy-to-read backlit graphics display
  • Display orientation can rotate 180° so readings will never be upside down
  • Factory set, zero, 2-point, 3-point and roughness calibration
  • SSPC-PA2, ISO, Swedish (SS 18 41 60), Australian (AS 3894.3), ISO 19840 and ASTM D 7091
      (formerly D 1186 and D 1400)

What's In The Box:

  • (1) MiniTest 735 gauge
  • (1) SIDSP® sensor (according to choice)
  • (1) Calibration set with calibration standards and zero reference plate(s)
  • (1) Instruction manual in German, English, French and Spanish on CD
  • (2) Mignon/ AA batteries
  • (1) Manufacturer’s Certificate
  • (1) MSoft 7 basic data transfer software

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice

  FERROUS MODEL 0 Item Selected
Model
Product Name
Price
Available
Quantity
None
Rp.36,500,0000
1 Availability
[80-137-0000] MiniTest 735 F0.5, Ferrous Metals, 20 mils / 500 Microns
80-137-0000
Rp.36,500,0000
1 Availability
[80-137-3000] MiniTest 735 F0.5HD, Ferrous Metals, 20 mils / 500 Microns (Heavy Duty)
80-137-3000
Rp.36,500,0000
1 Availability
[80-137-0200] MiniTest 735 F1.5, Ferrous Metals, 60 Mils / 1500 Microns
80-137-0200
Rp.36,500,0000
1 Availability
[80-137-3200] MiniTest 735 F1.5HD, Ferrous Metals, 60 Mils / 1500 Microns (Heavy Duty)
80-137-3200
Rp.36,500,0000
1 Availability
[80-137-1000] MiniTest 735 F1.5-90, Ferrous Metals, 60 Mils / 1500 Microns(tube measurement)
80-137-1000
Rp.36,500,0000
1 Availability
[80-137-3500] MiniTest 735 F2 HD, Ferrous Metals, 80 Mils / 2000 Microns
80-137-3500
Rp.36,500,0000
1 Availability
[80-137-0500] MiniTest 735 F5, Ferrous Metals, 200 Mils / 5000 Microns
80-137-0500
Rp.36,500,0000
1 Availability
[80-137-3600] MiniTest 735 F5, Ferrous Metals, 200 Mils / 5000 Microns (Heavy Duty)
80-137-3600
$-2,201.00
1 Availability
[80-137- 5700] MiniTest 735 F5 HD, Ferrous Metals, 200 Mils / 5000 Microns (Heavy Duty Flat Pole)
80-137- 5700
Rp.40,800,0000
1 Availability
[80-137-0800] MiniTest 735 F15, Ferrous Metals, 600 Mils / 15000 Microns
80-137-0800
Rp.52,500,0000
1 Availability
[80-137-3900] MiniTest 735 F15 HD, Ferrous Metals, 600 Mils / 15000 Microns (Heavy Duty)
80-137-3900
Rp.52,400,0000
1 Availability
  FERROUS MODEL [MICROPROBES] 0 Item Selected
  NON-FERROUS MODEL 0 Item Selected
  NON-FERROUS MODEL [MICROPROBE] 0 Item Selected
  FERROUS & NON-FERROUS [COMBINATION] 0 Item Selected
