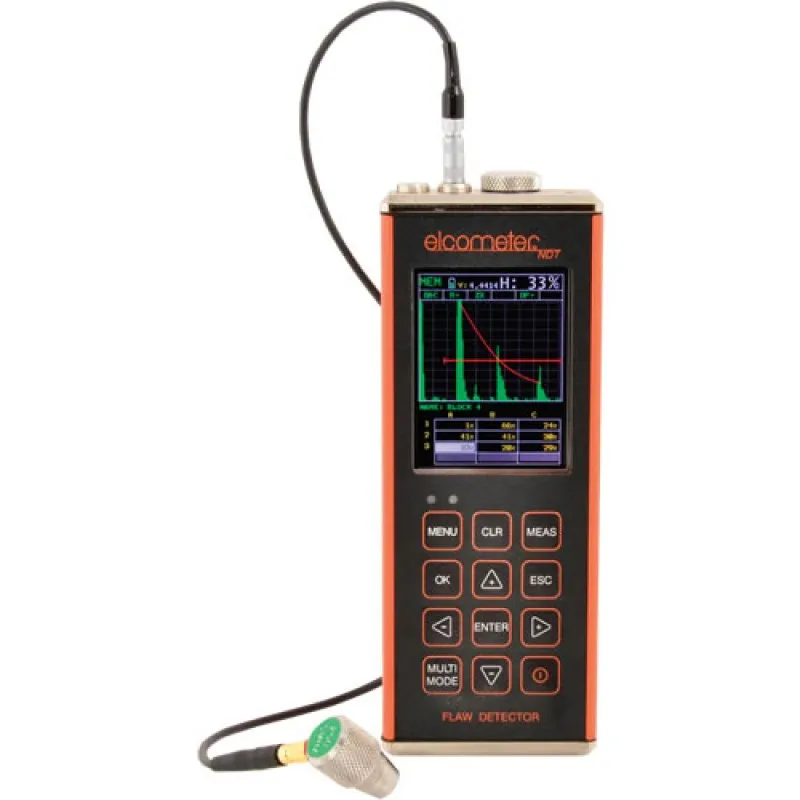

Elcometer FD700 [FD700+] Ultrasonic Flaw Detection Gauge

Elcometer FD700 [FD700+] Ultrasonic Flaw Detection Gauge
Elcometer FD700 [FD700+] Ultrasonic Flaw Detection Gauge

The Elcometer NDT FD700+ Ultrasonic Flaw Detectors Detection Gaugesare small powerful hand-held flaw detectors combining state-of-the-art flaw detection with advanced material thickness capabilities. With all the functionality of the top of the range material thickness gauge, the FD700+ flaw detector, when in flaw detection mode offers a variety of tool kits which enable fast and accurate flaw detection, ideal for weld inspection, forgings or composite material testing.

Elcometer FD700+ Flaw Detectors / Detection GaugesTool kits include:

  • TRIG enabling location of flaws in both surface distance and depth.
  • DAC for the creation of DAC curves which are used to inform the operator of the size of any given flaw at any depth.
  • AWS function provides automatic defect sizing in accordance with AWS D1.1 structural welding code.
  • AVG/DGS allows automatic defect sizing using probe data, storing up to 64 custom setups.
  • TCG (time corrected gain) increases gain as distance increases, in order to achieve an overall level of sensitivity for the same flaw/reflector at different distances
