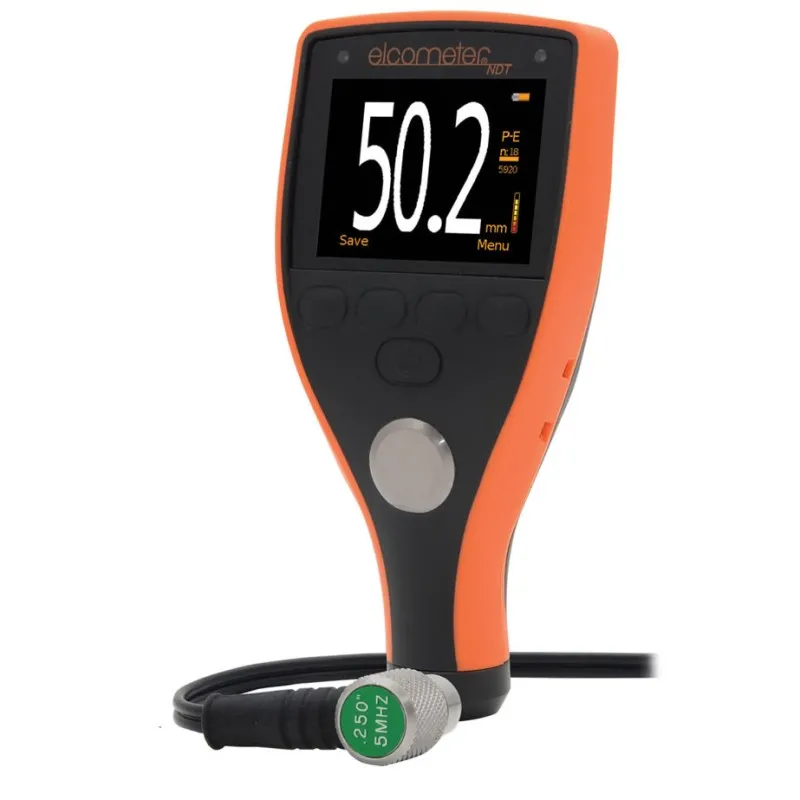

Elcometer MTG Series Ultrasonic Material and Precision Thickness Gauges

Elcometer MTG Series Ultrasonic Material and Precision Thickness Gauges
Elcometer MTG Series Ultrasonic Material and Precision Thickness Gauges
from
Rp.42,638,8710
Ex Tax: Rp.42,638,8710
  • Brand: Elcometer NDT
  • Part Number: MTG_3
  • Availability: 4 - 6 WEEKS
  • Last Updated: 13 Oct 2023
Elcometer NDT Elcometer NDT
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Fluke , Basic , Battery , Analyzer

Ergonomic, rugged, accurate and easy to use, the Elcometer MTG & PTG rangeof ultrasonic Material and Precision thickness gauges is ideal for measuring andrecording material thickness from just 0.15mm (0.006") to 500mm (20").

Easy
The MTG & PTG range of ultrasonic thickness gauges have beendesigned specifically to make them easy to use, calibrate, take readingsand create inspection reports.

Accurate
Both the MTG & PTG range have a measurement accuracy of ±1%across its full range of 0.15mm (0.006") PTG up to 500m (20)" MTG.Accurate and repeatable readings can be taken on smooth, rough andcurved, coated or uncoated surfaces. The stability indicator provides avisual indication of both the strength and reliability of the ultrasonic signal.

Efficient
Whilst the MTG2 and MTG4 have a set measurement repetition rate of4Hz (4 readings per second), the MTG6, PTG6, MTG8 & PTG8 have userselectable measurement rates of 4, 8 and 16 Hz (4, 8 or 16 readings persecond). The MTG6, PTG6, MTG8 & PTG8 also have high speed scanmode allowing 140+ readings per minute to be taken on large surfaceareas.

Powerful
The MTG6, MTG8 & PTG8 have data-logging functionality. The MTG6can store up to 1,500 readings in a single batch whilst the MTG8 &PTG8 store up to 100,000 readings in up to 1,000 sequential or gridtype batches, with alpha-numeric batch naming. Compatible withElcoMaster™ and ElcoMaster™ Mobile Apps, data can be downloadedvia USB or Bluetooth® direct to PC, iOS* or Android™ mobile devices forinstant report generation.

Rugged
With a scratch and solvent resistant display, sealed, heavy duty andimpact resistant design - dust and waterproof equivalent to IP54 - theMTG and PTG range is suitable for use in the harshest of environments.

The Elcometer NDT MTG & PTG range has a number of measurement modesavailable to help the user establish the most accurate thickness value.The modes available vary between models but normally increase as themodel number increases.

Pulsed - Echo Mode (P-E):Ideal for pit and flaw detection, the total thickness from the base of thetransducer to the material density boundary (typically the back-wall) ismeasured.

Echo - Echo ThruPaintTM Mode (E-E):Also known as ThruPaint™ mode, the coating thickness is ignored andthe material thickness from the top surface of the material to the materialdensity boundary (typically the back-wall) is measured. To use Echo-EchoThruPaint™ mode, a high damped, coating thickness transducer is required.

Interface Echo (I-E):A highly accurate measurement mode, Interface Echo displays the totalthickness from the top surface to the material density boundary

Plastic Mode (PLAS): A mode specifically used for measuring very thin plastics. A special graphitedelay line accessory is required for this mode

Velcocity Mode (VM):Velocity mode measures the speed of sound of materials and is ideal fordetermining the homogeneity of a material/alloy and the correct velocity ofa material for calibration.

  MTG MODEL 0 Item Selected
Model
Product Name
Price
Available
Quantity
[MTG2-TXC] Ultrasonic Material Thickness Gauge with Transducer
MTG2-TXC
Rp.42,638,8710
1 Availability
[MTG4] Ultrasonic Material Thickness Gauge
MTG4
Rp.42,638,8710
1 Availability
[MTG4-TXC] Ultrasonic Material Thickness Gauge with Transducer
MTG4-TXC
Rp.55,688,8710
1 Availability
[MTG6DL] Ultrasonic Material Thickness Gauge with Data Logging
MTG6DL
Rp.55,688,8710
1 Availability
[MTG6DL-TXC] Ultrasonic Material Thickness Gauge with Data Logging & Transducer
MTG6DL-TXC
Rp.68,738,8710
1 Availability
[MTG8BDL] Ultrasonic Material Thickness Gauge with Data Logging
MTG8BDL
Rp.71,348,8710
1 Availability
[MTG8BDL-TXC] Ultrasonic Material Thickness Gauge with Data Logging & Transducer
MTG8BDL-TXC
Rp.84,398,8710
1 Availability
Multiple Product

have been added to your cart

There Are items in your cart.

Cart Subtotal: $xxx.xx

Go to checkout
Quickview
Elcometer MTG [MTG2-TXC] Ultrasonic Material Thickness Gauge with Transducer
Brand: Elcometer NDT
Elcometer MTG [MTG2-TXC] Ultrasonic Material Thickness Gauge with Transducer
Elcometer MTG [MTG2-TXC] Ultrasonic Material Thickness Gauge with Transducer. With automatic transducer recognition which ensures correct probe ident..
from
Rp.42,638,8710
Ex Tax:Rp.42,638,8710
Add to Cart
Add to Wish List Compare this Product
Quickview
Elcometer MTG [MTG4] Ultrasonic Material Thickness Gauge Without Transducer
Brand: Elcometer NDT
Elcometer MTG [MTG4] Ultrasonic Material Thickness Gauge Without Transducer
Elcometer MTG [MTG4] Ultrasonic Material Thickness Gauge Without Transducer. With a choice of calibration options and measurement modes, the MTG4 is ..
from
Rp.42,638,8710
Ex Tax:Rp.42,638,8710
Add to Cart
Add to Wish List Compare this Product
Quickview
Elcometer TXC5M00CP-4 5MHz, 1/4"Ø Dual Element Potted Right Angle Transducer with Certified
Brand: Elcometer NDT
Elcometer TXC5M00CP-4 5MHz, 1/4"Ø Dual Element Potted Right Angle Transducer with Certified
Elcometer TXC5M00CP-4  5MHz, 1/4"Ø Dual Element Potted Right Angle Transducer with Certified For use with Elcometer MTG2, MTG4, MTG6, and MT..
from
Rp.18,278,8710
Ex Tax:Rp.18,278,8710
Add to Cart
Add to Wish List Compare this Product
Quickview
Elcometer MTG [MTG4-TXC] Ultrasonic Material Thickness Gauge With Transducer
Brand: Elcometer NDT
Elcometer MTG [MTG4-TXC] Ultrasonic Material Thickness Gauge With Transducer
Elcometer MTG [MTG4-TXC] Ultrasonic Material Thickness Gauge With Transducer. With a choice of calibration options and measurement modes, the MTG4 is..
from
Rp.55,688,8710
Ex Tax:Rp.55,688,8710
Add to Cart
Add to Wish List Compare this Product
Quickview
Elcometer MTG [MTG6DL] Ultrasonic Material Thickness Gauge with Data Logging Without Transducer
Brand: Elcometer NDT
Elcometer MTG [MTG6DL] Ultrasonic Material Thickness Gauge with Data Logging Without Transducer
Elcometer MTG [MTG6DL] Ultrasonic Material Thickness Gauge with Data Logging Without Transducer. With a choice of calibration options, measurement mod..
from
Rp.55,688,8710
Ex Tax:Rp.55,688,8710
Add to Cart
Add to Wish List Compare this Product
Quickview
Elcometer MTG [MTG6DL-TXC] Ultrasonic Material Thickness Gauge with Data Logging and Transducer
Brand: Elcometer NDT
Elcometer MTG [MTG6DL-TXC] Ultrasonic Material Thickness Gauge with Data Logging and Transducer
Elcometer MTG [MTG6DL-TXC] Ultrasonic Material Thickness Gauge with Data Logging and Transducer. With a choice of calibration options, measurement mod..
from
Rp.68,738,8710
Ex Tax:Rp.68,738,8710
Add to Cart
Add to Wish List Compare this Product
Quickview
Elcometer MTG [MTG8BDL] Ultrasonic Material Thickness Gauge with Data Logging Without Transducer
Brand: Elcometer NDT
Elcometer MTG [MTG8BDL] Ultrasonic Material Thickness Gauge with Data Logging Without Transducer
The MTG8 is the top of the range gauge with all thefeatures and functionality necessary for measuring materialthickness and velocity on virtually any ..
from
Rp.42,638,8710
Ex Tax:Rp.42,638,8710
Add to Cart
Add to Wish List Compare this Product
Quickview
Elcometer MTG [MTG8BDL-TXC] Ultrasonic Material Thickness Gauge with Data Logging With Transducer
Brand: Elcometer NDT
Elcometer MTG [MTG8BDL-TXC] Ultrasonic Material Thickness Gauge with Data Logging With Transducer
Elcometer MTG [MTG8BDL-TXC] Ultrasonic Material Thickness Gauge with Data Logging With Transducer. The MTG8 is the top of the range gauge with all the..
from
Rp.84,398,8710
Ex Tax:Rp.84,398,8710
Add to Cart
Add to Wish List Compare this Product
