Name: E+E Elektronik EE671 Miniature Air Flow Transmitter
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

E+E Elektronik EE671 Miniature Air Flow Transmitter

from

Rp.15,520,9680

Ex Tax: Rp.15,520,9680

Brand: E+E Elektronik
Part Number: EE671
Availability: 4 - 6 WEEKS
Last Updated: 23 Sep 2023

E+E Elektronik

Qty

Add to Cart

Add to Wish List Compare this Product

Configure Options

Tags: Additel , Digital , Pressure , Calibrators

Description

EE671 is a compact air velocity probe for HVAC applications. The built-in flow sensing element VTQ combines the advantages of state-of-the-art E+E thin-film manufacturing and of the newest transfer molding technology.

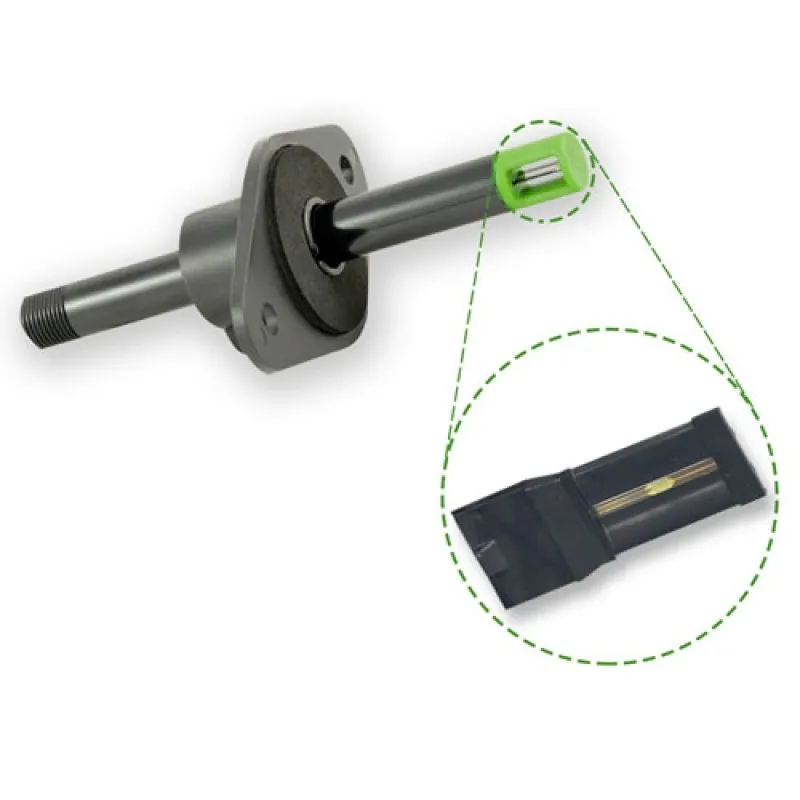

It operates on the hot-film anemometer principle and ensures high accuracy and excellent long-term stability. The flow sensing element ist very robust and highly insensitive to contamination.

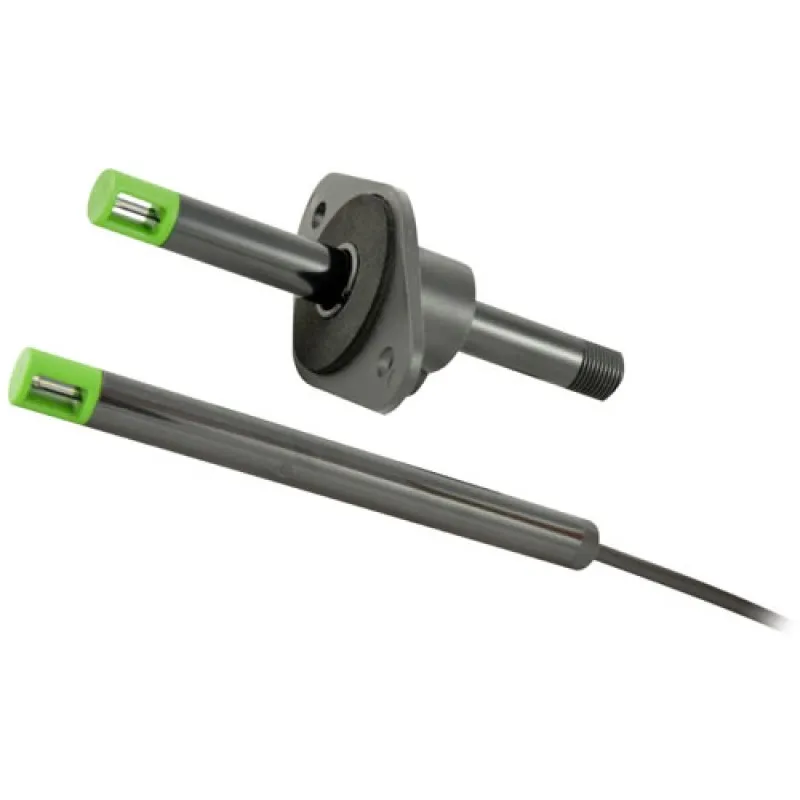

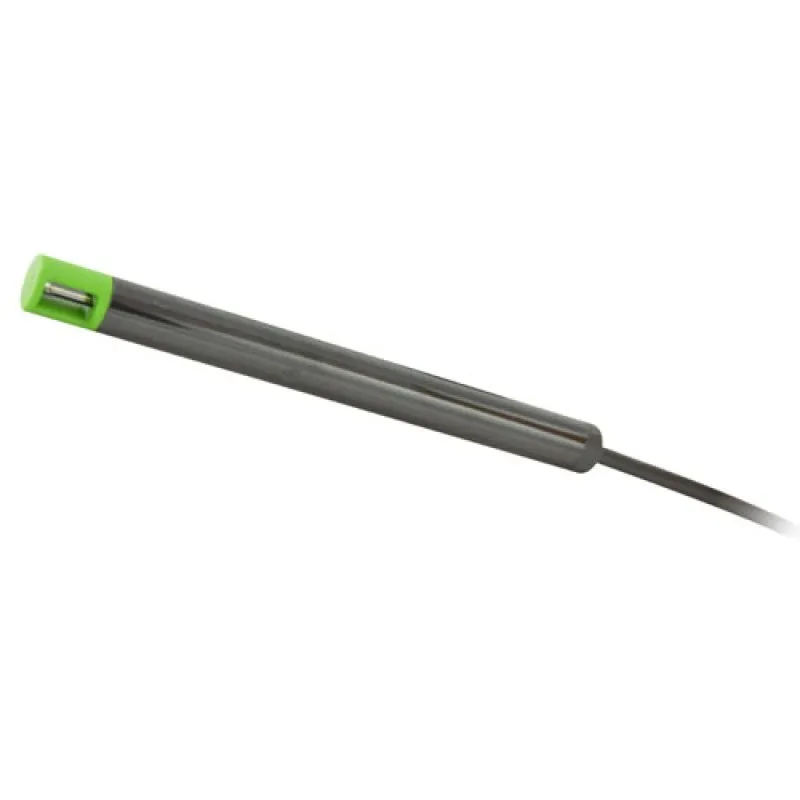

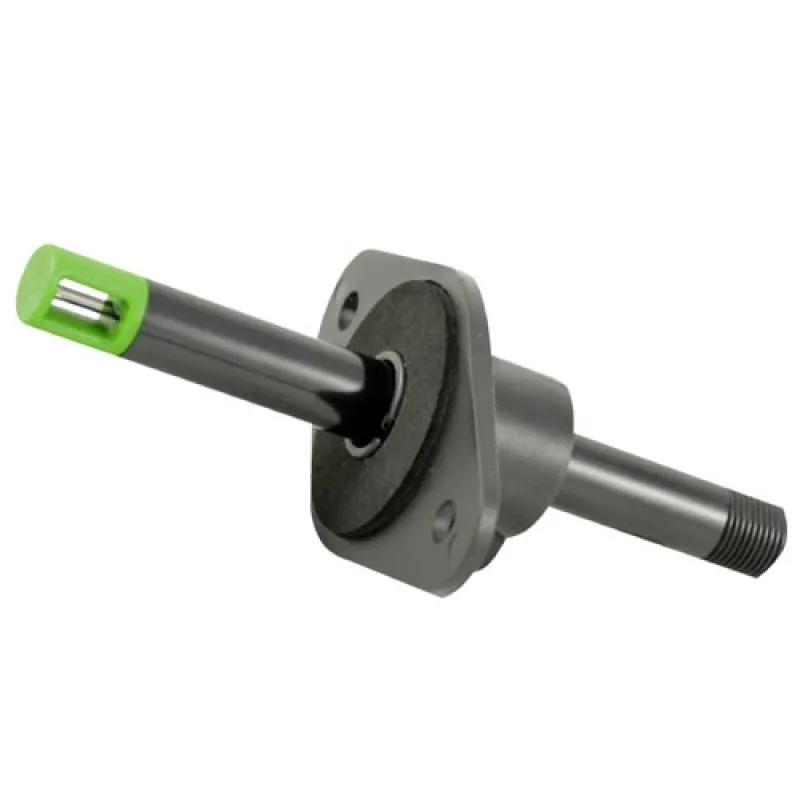

EE671 is available with fixed cable or M12 connector. The alignment strip on the probe and the matching mounting flange within the scope of supply simplify installation and precise positioning in the air flow. The flange enables the immersion depth to be infinitely variable.

The measured air velocity up to 20 m/s (4000 ft/min) is available as linear voltage output 0 - 1 V, 0 - 5 V or 0 - 10 V. The digital version of EE671 with Modbus RTU interface facilitates integration into modern building automation systems. With an optional configuration kit it is easy to scale the output, set the Modbus parameters and perform the adjustment of the probe.

Butuh penawaran harga? Silahkan segera klik disini!

EE671 MODEL 0 Item Selected


Model

Product Name

Price

Available

Quantity

T14

E+E Elektronik EE671 Miniature Air Flow Transmitter

[T14] With cable

Rp.15,520,9680

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

[T14] With cable

T15

E+E Elektronik EE671 Miniature Air Flow Transmitter

[T15] With M12 plug

Rp.15,520,9680

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

[T15] With M12 plug

EE671 OUTPUT 0 Item Selected


Model

Product Name

Price

Available

Quantity

E+E Elektronik EE671 Miniature Air Flow Transmitter

[A1] 0 to 1V

Rp.15,520,9680

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

[A1] 0 to 1V

E+E Elektronik EE671 Miniature Air Flow Transmitter

[A2] 0 to 5V

Rp.15,520,9680

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

[A2] 0 to 5V

E+E Elektronik EE671 Miniature Air Flow Transmitter

[A3] 0 to 10V

Rp.15,520,9680

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

[A3] 0 to 10V

E+E Elektronik EE671 Miniature Air Flow Transmitter

[J3] RS485

Rp.16,472,2580

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

[J3] RS485

EE671 MEASURING RANGE 0 Item Selected


Model

Product Name

Price

Available

Quantity

HV25

E+E Elektronik EE671 Miniature Air Flow Transmitter

[HV25] 0 to 1000 ft/min (0 to 5 m/s)

Rp.15,520,9680

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

[HV25] 0 to 1000 ft/min (0 to 5 m/s)

HV26

E+E Elektronik EE671 Miniature Air Flow Transmitter

[HV26] 0 to 2000 ft/min (0 to 10 m/s)

Rp.15,520,9680

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

[HV26] 0 to 2000 ft/min (0 to 10 m/s)

HV27

E+E Elektronik EE671 Miniature Air Flow Transmitter

[HV27] 0 to 3000 ft/min (0 to 15 m/s)

Rp.15,520,9680

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

[HV27] 0 to 3000 ft/min (0 to 15 m/s)

HV28

E+E Elektronik EE671 Miniature Air Flow Transmitter

[HV28] 0 to 4000 ft/min (0 to 20 m/s)

Rp.15,520,9680

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

[HV28] 0 to 4000 ft/min (0 to 20 m/s)

EE671 CABLE LENGTH 0 Item Selected


Model

Product Name

Price

Available

Quantity

E+E Elektronik EE671 Miniature Air Flow Transmitter

Without cable

Rp.15,520,9680

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

Without cable

KL50

E+E Elektronik EE671 Miniature Air Flow Transmitter

[KL50] 1.64ft (0.5m)

Rp.15,520,9680

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

[KL50] 1.64ft (0.5m)

KL200

E+E Elektronik EE671 Miniature Air Flow Transmitter

[KL200] 6.56ft (2m)

Rp.15,915,3230

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

[KL200] 6.56ft (2m)

EE671 PROTOCOL 0 Item Selected


Model

Product Name

Price

Available

Quantity

E+E Elektronik EE671 Miniature Air Flow Transmitter

Only available with RS485 (J3 digital output )

Rp.15,520,9680

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

Only available with RS485 (J3 digital output )

E+E Elektronik EE671 Miniature Air Flow Transmitter

[P1] Modbus RTU

Rp.15,520,9680

1 Availability

E+E Elektronik EE671 Miniature Air Flow Transmitter

[P1] Modbus RTU
