Name: EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

from

Rp.72,680,0000

Ex Tax: Rp.72,680,0000

Brand: Edgetech Instruments
Part Number: DT
Availability: 6 - 8 WEEKS
Last Updated: 30 Sep 2023

Edgetech Instruments

Qty

Add to Cart

Add to Wish List Compare this Product

Configure Options

Tags: Additel , Digital , Pressure , Calibrators

Description

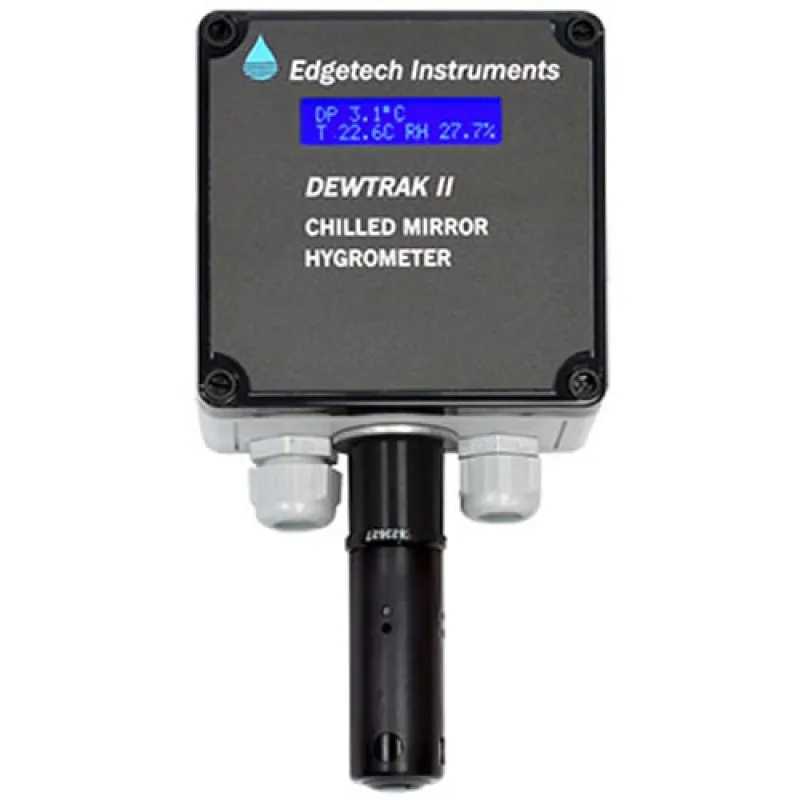

The EdgeTech DewTrak II dew point and humidity transmitter is an optical chilled mirror hygrometer designed to continuously measure the moisture content in gases. Multiple mount options for this EdgeTech transmitter include wall, duct, pipe or remote mounting. You can also choose between a plastic (IP65) or an aluminum enclosure.

The EdgeTech DewTrak II, powered by 24 VDC, uses the chilled mirror dew point temperature condensation principle to determine the water vapor concentration in gas mixtures, and a platinum resistance thermometer to accurately measure that temperature. With an accuracy of ±0.2°C for dew point and temperature, the EdgeTech DewTrak II dew point and humidity transmitter also offers a ±0.05°C repeatability and negligible hysteresis.

Two analog outputs are available, 4-20 mA and 0-5 VDC to 0-10 VDC (selectable), on the EdgeTech DewTrak II. Other features include RS232, bi-directional and serial outputs, a static flow rate to 3,000 linear ft/min, and a response of 1°C/sec not including settling time.

Butuh penawaran harga? Silahkan segera klik disini!

DT II ENCLOSURE 0 Item Selected


Model

Product Name

Price

Available

Quantity

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[PL] Plastic (IP65)

Rp.72,680,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[PL] Plastic (IP65)

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[AL] Aluminum (NEMA 4)

Rp.76,595,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[AL] Aluminum (NEMA 4)

DT II SENSOR TYPE 0 Item Selected


Model

Product Name

Price

Available

Quantity

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[D] -4°F (-20°C) to ambient (temp probe ordered separately)

Rp.72,680,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[D] -4°F (-20°C) to ambient (temp probe ordered separately)

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[Dx] -40°F (-40°C) to ambient with integrated fan cooling and temp sensor

Rp.88,340,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[Dx] -40°F (-40°C) to ambient with integrated fan cooling and temp sensor

DT II MOUNTING 0 Item Selected


Model

Product Name

Price

Available

Quantity

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[W] Wall mount

Rp.72,680,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[W] Wall mount

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[R] Remote mount SEE Chilled Mirror Sensor Cable

Rp.90,819,5160

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[R] Remote mount SEE Chilled Mirror Sensor Cable

DT II MIRROR MATERIAL 0 Item Selected


Model

Product Name

Price

Available

Quantity

STD

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[STD] Chrome (standard resistance)

Rp.72,680,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[STD] Chrome (standard resistance)

ENH

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[ENH] 316 stainless steel (enhanced resistance)

Rp.79,857,5810

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[ENH] 316 stainless steel (enhanced resistance)

MAX

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[MAX] Platinum (maximum resistance)

Rp.85,730,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[MAX] Platinum (maximum resistance)

DT II CHILLED MIRROR SENSOR CABLE 0 Item Selected

DT II LCD DISPLAY 0 Item Selected


Model

Product Name

Price

Available

Quantity

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

Not included

Rp.72,680,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

Not included

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[RD] Included

Rp.82,040,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[RD] Included

DT II POWER SUPPLY 0 Item Selected


Model

Product Name

Price

Available

Quantity

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

24VDC

Rp.72,680,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

24VDC

ACDT

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[ACDT] 85 to 230VAC, 50/60Hz industrial enclosure (height increase)

Rp.81,464,0320

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[ACDT] 85 to 230VAC, 50/60Hz industrial enclosure (height increase)

VAC

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[VAC] 90 to 230VAC, 50/60Hz adapter

Rp.75,415,9680

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[VAC] 90 to 230VAC, 50/60Hz adapter

DT II AIR TEMPERATURE PROBE 0 Item Selected

DT II SENSOR OPTIONS 0 Item Selected


Model

Product Name

Price

Available

Quantity

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

Not included

Rp.72,680,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

Not included

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[D] Duct mount flange with seal

Rp.78,584,0320

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[D] Duct mount flange with seal

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[SC] Slip on low pressure sample chamber flow through cover

Rp.84,055,9680

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[SC] Slip on low pressure sample chamber flow through cover

SC1

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[SC1] Permanently connected high pressure (up to 100 psig) sample chamber

Rp.91,400,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[SC1] Permanently connected high pressure (up to 100 psig) sample chamber

DT II AIR TEMPERATURE MOUNT 0 Item Selected

DT II ACCURACY 0 Item Selected


Model

Product Name

Price

Available

Quantity

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

±0.36°F (±0.2°C)

Rp.72,680,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

±0.36°F (±0.2°C)

SA/.15

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[SA/.15] ±0.27°F (±0.15°C)

Rp.89,645,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[SA/.15] ±0.27°F (±0.15°C)

SA/.1

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[SA/.1] ±0.18°F (±0.1°C)

Rp.92,255,0000

1 Availability

EdgeTech DewTrak II Dew Point & Humidity Transmitter - Standard Wall Mount

[SA/.1] ±0.18°F (±0.1°C)
