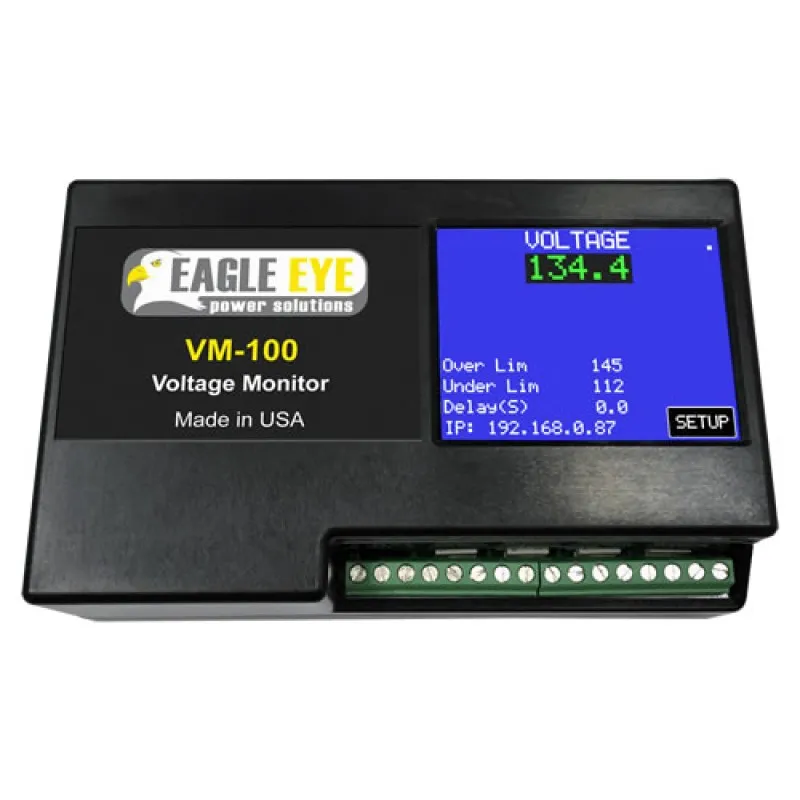

Eagle Eye VM-100-125V Battery Voltage Monitor for 125V DC Applications

Eagle Eye VM-100-125V Battery Voltage Monitor for 125V DC Applications
Eagle Eye VM-100-125V Battery Voltage Monitor for 125V DC Applications
from
Rp.24,850,0000
Ex Tax: Rp.24,850,0000
Eagle Eye Power Solutions Eagle Eye Power Solutions
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The Eagle Eye VM-100-125V Battery Voltage Monitor is a simplistic and inexpensive battery monitoring system designed to monitor battery string voltage for over and under voltage conditions. The VM100125V Battery Voltage Monitor is used in 125 V applications - and reads battery bus status, detects out-of-limit conditions, and provides alarm indications per user settings. The unit is equipped with four (4) Form C Contacts - Two (2) Form C contacts for over voltage and Two (2) Form C contacts for under voltage.

Designed with a color touchscreen, the VM-100-125V Battery Voltage Monitor has a user-friendly interface that displays the monitor's status, under voltage and over voltage trip values, time delay, and IP address settings. When the VM-100-125V is installed and power is applied to the monitor, the firmware reads the stored settings and begins monitoring. Changing the stored settings, including the over and under voltage parameters and the monitor's IP address is done on the VM-100-125V color touchscreen. If over or under voltage is detected, the voltage status will appear and the VM-100-125V can activate a Form C contact. Installation of the VM100125V Voltage Monitor is simple - it can be installed as a wall, panel, or DIN rail unit, and includes a mounting kit for DIN rail or wall mounts.

Monitoring for battery string voltage will provide critical battery cell protection and ensure the longevity of the battery system. Over voltage can lead to overcharging and overheating of the batteries, which can cause irreversible cell destruction. Under voltage will also cause irreversible battery damage if left uncorrected. Measuring battery voltage with the VM-100-125V will allow the user to determine how charged their batteries are, and allow for immediate corrective action if needed.

Features:

  • Monitors Voltage in 125 V batteries
  • Color touchscreen simple interface
  • Ethernet connectivity to web interface, (4) Form C Contacts
  • High reliability and durability
  • Simple installation
  • Includes mounting kit for DIN rail or wall mount

What's In The Box:

  • (1) VM-series monitor (125 V)
  • (1) DIN rail mounting clip
  • (1) Backplate for wall mounting
  • (1) User manual

    Brochure/Datasheet
    Instruction manual

    Note: Prices are not binding , subject to change without prior notice
