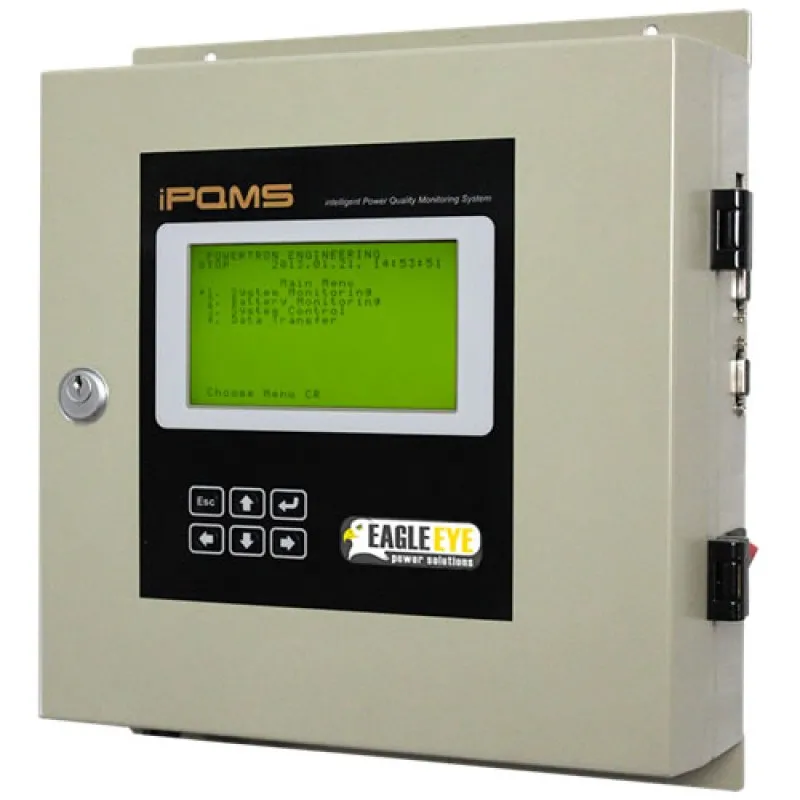

Eagle Eye IPQMS [IPQMS-C64] Battery Monitoring System for 0-120 VDC Systems using 1.2-12V Batteries

Eagle Eye IPQMS [IPQMS-C64] Battery Monitoring System for 0-120 VDC Systems using 1.2-12V Batteries
Eagle Eye IPQMS [IPQMS-C64] Battery Monitoring System for 0-120 VDC Systems using 1.2-12V Batteries
from
Rp.229,950,0000
Ex Tax: Rp.229,950,0000

Eagle Eye's iPQMS-C64 Battery Monitoring System is designed to measure the aging status of up to 448 jars (or 448 cells) by measuring and recording: string voltage,DC current, jar/cell voltage, internal resistance (I.R.), connection resistance, and temperature. The iPQMSC64 is designed for use on vented lead acid, valve regulated lead acid, and nickel-cadmium battery systems. The included Centroid Snet Battery Management Software records measured data for comprehensive trending analysis, ensuring backup power systems are optimally maintained. The iPQMS-C64 system measures up to 448 jars (or 448 cells) through clamps connected directly to the battery connections. The iPQMS-C64 can be used on a private network via TCP/IP or locally with direct RS-232 connection. Networked systems can utilize SMS/Email alerts during alarm outbreak. Modbus protocol can be utilized for third-party software integration.


Features:


  • True 24/7/365 Battery Monitoring
  • Installation and maintenance can be done while battery systems are online
  • Meets IEEE and NERC standard recommendations for battery monitoring solutions
  • Utilizes a patented ripple-removing algorithm for the most precise and repeated results in any environment
  • Injects a minimal current, allowing the user to test their battery multiple times a day without adverse effects
      on your battery or battery monitoring system
  • Simple to install with custom (to your batteries and site), pre-assembled installation materials
  • Can monitor all your systems in real time with flexible expanding solutions
  • Can be powered by AC or connected DC


What's In The Box:


  • (1) Centroid Snet Battery
  • (1) Management Software
  • (1) iPQMS MPU with mounting kit
  • (1) Relaying Unit(s)
  • (1) O-Clamps for inter-cell cable connections
  • (1) C-Clamps for inter-cell busbar connections
  • (1) Cabling for string voltage measurement
  • (1) Cabling for cell voltage, cell I.R. and temp. measurement
  • (1) CT clamp for DC current measurement
  • (1) Power cabling
  • (1) Optional: Spare parts kit


    Brochure/Datasheet


    Instruction manual


    Note: Prices are not binding , subject to change without prior notice
