E+E Elektronik EE75 [EE75-T26] Air / Gas Velocity Transmitter, Remote Probe, Pressure-Tight, 10 bar (145 psi)

E+E Elektronik EE75 [EE75-T26] Air / Gas Velocity Transmitter, Remote Probe, Pressure-Tight, 10 bar (145 psi)
E+E Elektronik EE75 [EE75-T26] Air / Gas Velocity Transmitter, Remote Probe, Pressure-Tight, 10 bar (145 psi)
E+E Elektronik EE75 [EE75-T26] Air / Gas Velocity Transmitter, Remote Probe, Pressure-Tight, 10 bar (145 psi)
E+E Elektronik EE75 [EE75-T26] Air / Gas Velocity Transmitter, Remote Probe, Pressure-Tight, 10 bar (145 psi)
E+E Elektronik EE75 [EE75-T26] Air / Gas Velocity Transmitter, Remote Probe, Pressure-Tight, 10 bar (145 psi)
E+E Elektronik EE75 [EE75-T26] Air / Gas Velocity Transmitter, Remote Probe, Pressure-Tight, 10 bar (145 psi)
E+E Elektronik EE75 [EE75-T26] Air / Gas Velocity Transmitter, Remote Probe, Pressure-Tight, 10 bar (145 psi)
from
Rp.60,413,0650
Ex Tax: Rp.60,413,0650
  • Brand: E+E Elektronik
  • Part Number: EE75-T26
  • Availability: 4 - 6 WEEKS
  • Last Updated: 23 Sep 2023
E+E Elektronik E+E Elektronik
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Additel , Digital , Pressure , Calibrators

The EE75 series air velocity transmitters were developed to obtain accurate measuring results over a wide range of velocities and temperatures.

A high-quality hot film sensor element based on cutting-edge thin film technology ensures maximum sensitivity, even at lowest mass flows. At the same time, the innovative probe design produces reliable measuring results at high flow velocities of up to 40m/s (8000ft/min).
The integrated temperature compensation minimises the temperature cross-sensitivity of the EE75 series which, combined with the robust mechanical design, allows it to be used at process temperatures between -40 to +120 °C (-40 to 248 °F).

In addition to air velocity and temperature values, the transmitter calculates the volumetric flow rate in m³/min or ft³/min. The cross  section of the duct needs to be determined for this purpose and the volumetric flow rate can be displayed and directed to one of the analogue outputs.

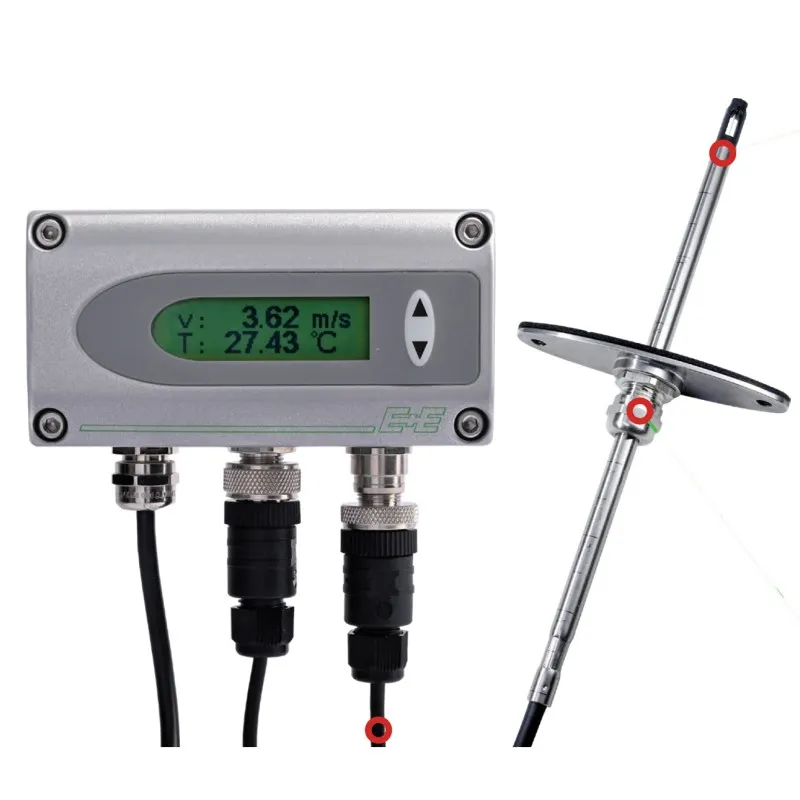

The configuration software included in the scope of supply allows to choose the appropriate output parameter and freely scale the display range and signal level of the two analogue outputs. In addition user-friendly calibration of the air velocity and temperature and the adjustment of key parameters (e.g. response time of the velocity measurement, low flow cut-off points, etc.) are supported as well. An optional illuminated display with two control buttons integrated in the cover is available. In addition, this enables changes of the configuration to be made directly on the unit.

The EE75 series has a robust metal housing to protect against possible damage in rough industrial environments. There are four different models, providing a comprehensive range of mounting options:

  • Model A for wall mounting
  • Model B for duct mounting

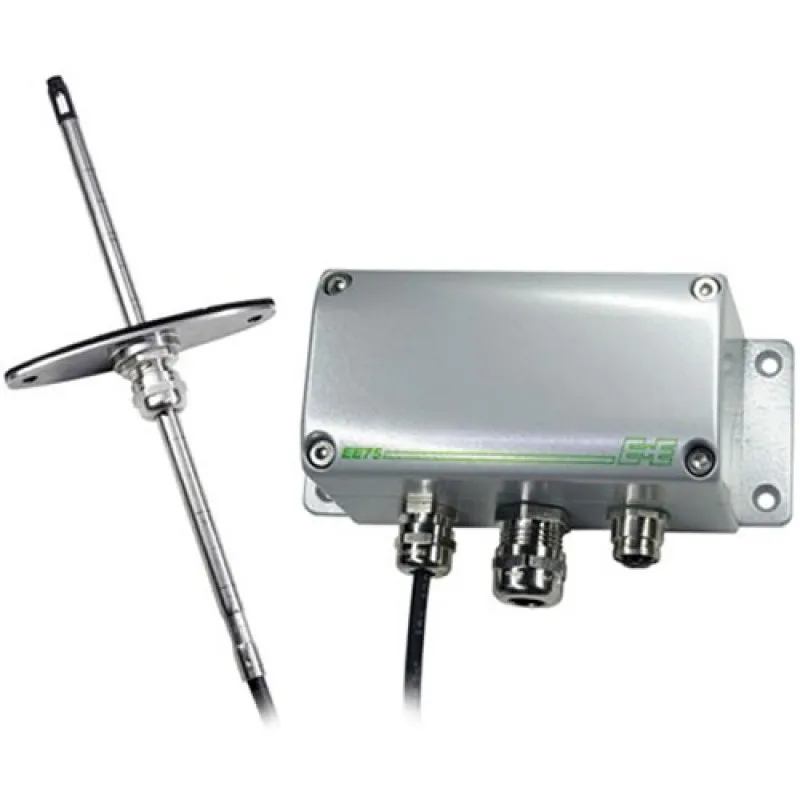

  • Model C with remote probe
  • Model E with remote probe, pressure-tight up to 10bar (145psi)

The EE75 series can be used to measure the velocity of other gasses as well, although a correction has to be applied to the unit at the factory.

  EE75 MODEL 0 Item Selected
Model
Product Name
Price
Available
Quantity
[T26] Remote probe, pressure-tight, 10 bar (145 psi)
T26
Rp.60,413,0650
1 Availability
  EE75 OUTPUT 0 Item Selected
  EE75 MEASURING RANGE 0 Item Selected
  EE75 PROBE LENGTH 0 Item Selected
  EE75 CABLE LENGTH 0 Item Selected
  EE75 DISPLAY 0 Item Selected
  EE75 PROCESS CONNECTION 0 Item Selected
  EE75 ELECTRIC CONNECTION 0 Item Selected
  EE75 OUTPUT PARAMATER 1 0 Item Selected
  EE75 LOW SCALE 1 0 Item Selected
  EE75 HIGH SCALE 1 0 Item Selected
  EE75 OUTPUT PARAMETER 2 0 Item Selected
  EE75 LOW SCALE 2 0 Item Selected
  EE75 HIGH SCALE 2 0 Item Selected
  EE75 MEDIUM 0 Item Selected
