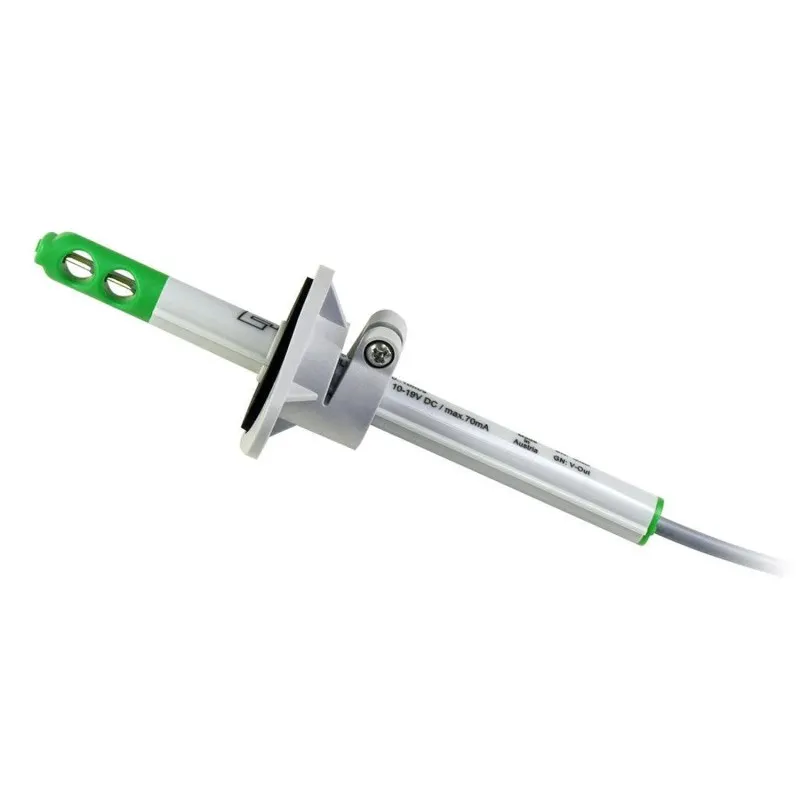

E+E Elektronik EE576 Air Velocity Transmitter

E+E Elektronik EE576 Air Velocity Transmitter
E+E Elektronik EE576 Air Velocity Transmitter
from
Rp.19,650,6450
Ex Tax: Rp.19,650,6450
  • Brand: E+E Elektronik
  • Part Number: EE576
  • Availability: 4 - 6 WEEKS
  • Last Updated: 23 Sep 2023
E+E Elektronik E+E Elektronik
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Additel , Digital , Pressure , Calibrators

The E+E EE576 Air Velocity Transmitter is a compact air velocity transmitter designed for measurement of lowest velocity. Equipped with a newly developed sensor head and utilizing the proven E+E hot-film element, already tested a million times in the automotive industry, these transmitters are less sensitive to dust and dirt than conventional hot-wire elements. This is reflected in the excellent reproducibility and proven long-term stability of the measuring results.

The factory calibration with a special wind tunnel for lowest velocity ensures optimal precision and maximum sensitivity. The EE576 can be mounted fast and easily. The alignment strip along the probe's tube and the matching mounting flange determine the orientation of the sensor probe. The mounting flange allows for an infinitely variation of the depth of the sensor probe. The electronics integrated in the probe tube provide a linear analog signal of 0-5V or 0-10V for the velocity range 0 to 200ft/min (0 to 1m/s) or 0 to 400ft/min (0 to 2m/s).

Applications for the EE576 include:
  • Laminar flow control
  • Filter monitoring
  • Exhaust systems
  • Glove boxes

  EE576 OUTPUT 0 Item Selected
Model
Product Name
Price
Available
Quantity
[2] 0 to 5V
2
Rp.19,650,6450
1 Availability
[3] 0 to 10V
3
Rp.19,650,6450
1 Availability
  EE576 RANGE 0 Item Selected
  EE576 SUPPLY 0 Item Selected
  EE576 CABLE LENGTH 0 Item Selected
