Name: Dwyer UFM [UFM-1] Ultrasonic Flow Meter
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Dwyer UFM [UFM-1] Ultrasonic Flow Meter

from

Rp.48,850,0000

Ex Tax: Rp.48,850,0000

Brand: Dwyer Instruments
Part Number: UFM-1
Availability: 6 - 8 WEEKS
Last Updated: 13 May 2024

Dwyer Instruments

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Aalborg , GFM , Mass Flow Meters

Description

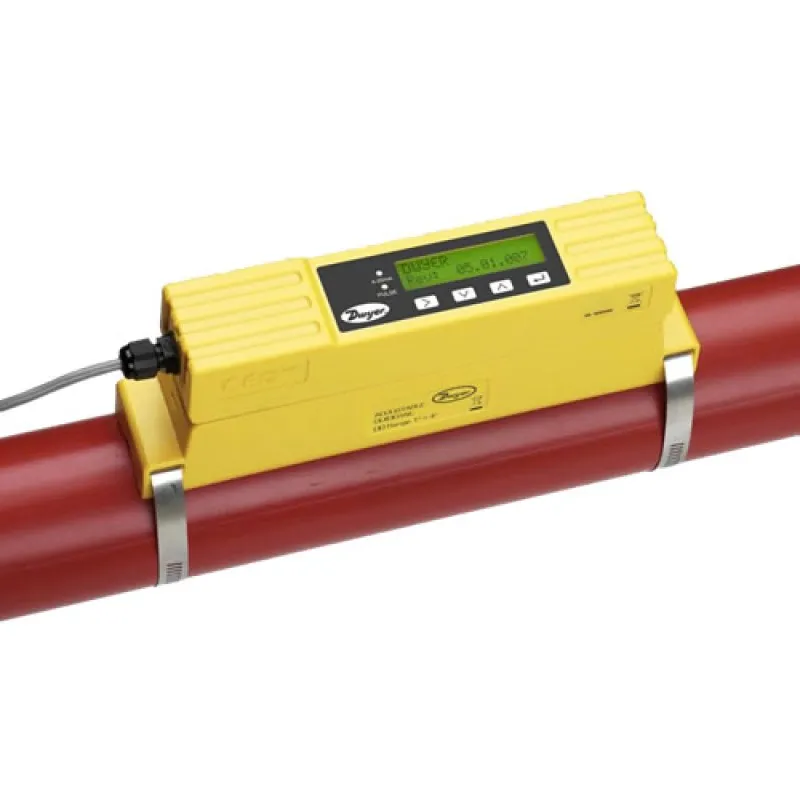

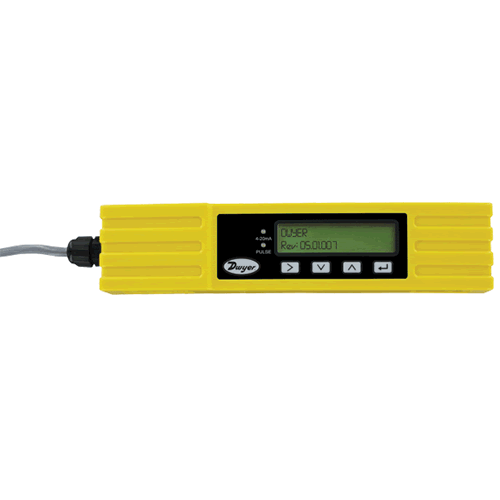

The Dwyer UFM Compact Ultrasonic Flowmeter is a low cost clamp-on, ultrasonic flowmeter. The Model UFM implements the transit-time difference to measure flow rates in pipes non-invasively. It is a compact and lightweight design, featuring an easily installed, all in one clamp-on unit. This unit can measure velocity and flow in pipes with outside diameters ranging from 0.98 to 4.62" (24.89 to 117.35 mm). The screen offers easy to read text with a convenient backlight for visual comfort. This model comes with a volume pulse and 4 to 20 mA flow rate output.

Principles of Operation

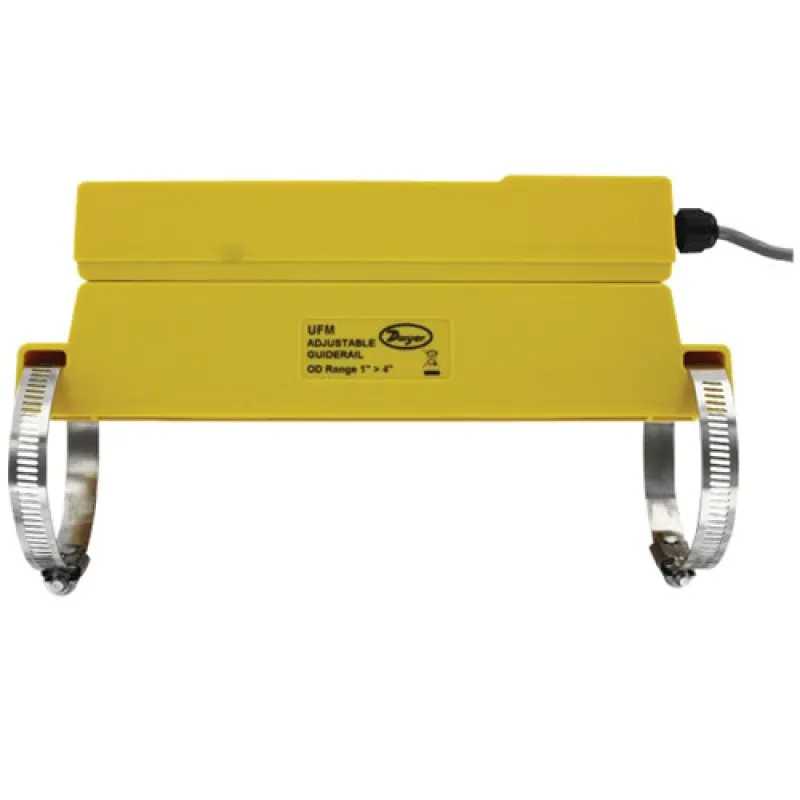

Two sensors located in the guiderail are placed on the exterior of the pipe, and each transmits an ultrasonic pulse through the pipe and fluid to the other. The velocity of the liquid flowing through the pipes causes the pulse to accelerate or decelerate. The difference in the transit times of the two pulses is used to calculate the flow rate. The use of transit time allows the flowmeter to be unaffected by pressure or temperature changes.

Product Applications

Flow measurement for heat metering
Process water metering and monitoring
Chilled water metering and monitoring
Clean water, no bubbles
Potable water metering and monitoring
