Dwyer 1950G Pressure Switch

Dwyer 1950G Pressure Switch
Dwyer 1950G Pressure Switch
Dwyer 1950G Pressure Switch
Dwyer 1950G Pressure Switch
Dwyer 1950G Pressure Switch
0 reviews • Write a review
from
Rp.14,510,6450
  • Brand: Dwyer Instruments
  • Part Number: 1950G
  • Availability: 4 - 6 WEEKS
  • Last Updated: 08 May 2024
Dwyer Instruments Dwyer Instruments
Add to Cart
Add to Wish List Compare this Product
 Configure Options

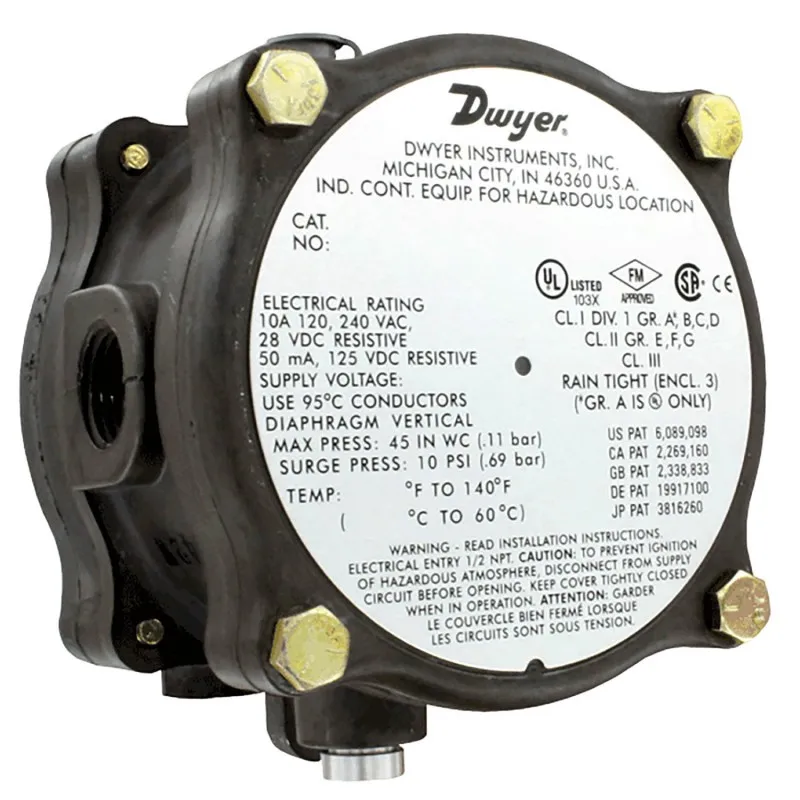

The Dwyer 1950G Explosion-Proof Switch combines the best features of the popular Dwyer Series 1950 Pressure Switch with the benefit of natural gas compatibility. Units are rain-tight for outdoor installations, and are UL listed for use in Class I, Groups A, B, C, & D; Class II, Groups E, F, & G and Class III atmospheres, Directive 94/9/EC (ATEX) Compliant for CE ATEX II 2G Exd IIB+H2 T6, CSA & FM approved for Class I, Div. 1, Groups B, C, D; Class II, Div. 1, Groups E, F, G and Class III atmospheres IECEx Ex d IIB+H2 T6 (-40°C < Ta < +60°C). The 1950G is very compact, about half the weight and bulk of equivalent conventional explosion-proof switches.

Easy access to the SPDT relay and power supply terminals is provided by removing the top plate of the aluminum housing. A supply voltage of 24 VDC, 120 or 240 VAC is required. A captive screw allows the cover to swing aside while remaining attached to the unit. Adjustment to the set point of the switch can be made without disassembly of the housing.
