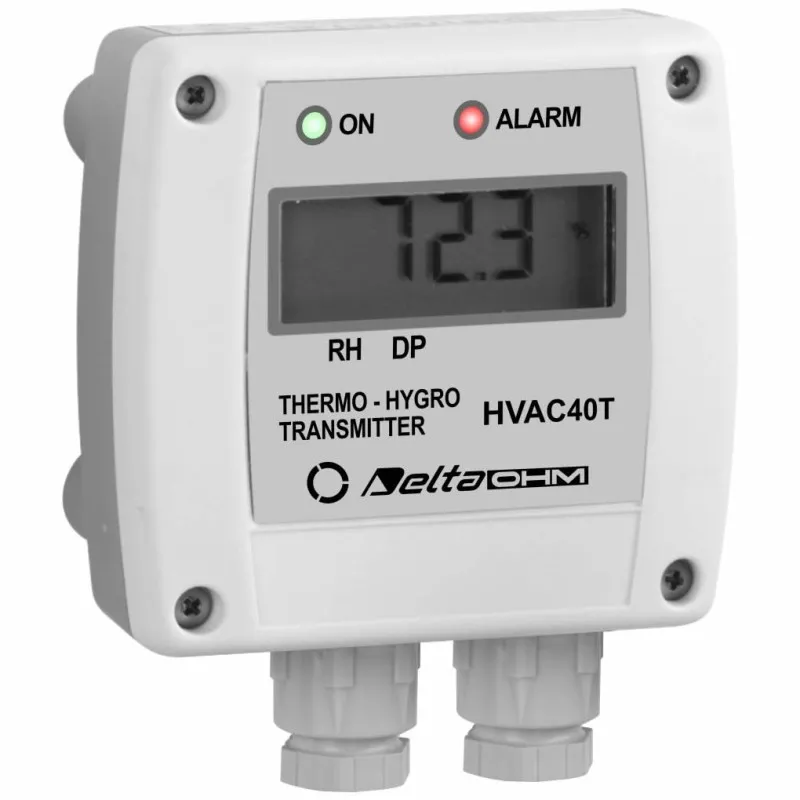

Delta Ohm HVAC40 Temperature, Relative Humidity and Dew Point Transmitters

Delta Ohm HVAC40 Temperature, Relative Humidity and Dew Point Transmitters
Delta Ohm HVAC40 Temperature, Relative Humidity and Dew Point Transmitters
Delta Ohm HVAC40 Temperature, Relative Humidity and Dew Point Transmitters
Delta Ohm HVAC40 Temperature, Relative Humidity and Dew Point Transmitters
Delta Ohm HVAC40 Temperature, Relative Humidity and Dew Point Transmitters
0 reviews • Write a review
from
Rp.9,179,6770
Ex Tax: Rp.9,179,6770
  • Brand: Delta Ohm
  • Part Number: HVAC40
  • Availability: 2 - 4 WEEKS
  • Last Updated: 30 Apr 2024
Delta Ohm Delta Ohm
Add to Cart
Add to Wish List Compare this Product
 Configure Options

HVAC40… series transmitters and hygrostats measure temperature, relative humidity and dew point using an interchangeable relative humidity and temperature digital sensor.
A stainless steel 10 µm filter protects the sensor against dust and particles (other filters are available for different applications).

The probe is available in three different versions:

  • Fixed vertical probe for wall mounting (HVAC40...TV);
  • Fixed probe with 2 m cable (HVAC40...TC.2);
  • Fixed duct horizontal probe (HVAC40...TO).
Available outputs, depending on the model:
  • RS485 Modbus–RTU digital output (HVAC40S17…);
  • 0...10 V voltage analog output (HVAC40V17…);
  • 0...20 mA / 4...20 mA active current analog output (HVAC4017…);
  • 2-wire (current loop) 4...20 mA analog output (HVAC40A17…);
  • ON/OFF relay switch (HVAC40R17…).
Versions with 4-digit LCD display (option L) are available, which allow the measured parameters to be displayed. In the versions with LCD, two LED indicators indicate the presence of the power supply and of an eventual alarm condition: exceeding of the set measurements thresholds, in the versions with relay switch output; measurement detected outside the measuring range, in the versions with analog or digital output. The instruments are factory calibrated and ready for use. The configuration can be made by connecting the serial port of the instrument to the PC or by means of the quick configuration dip switches on the circuit board. The versions with relay switch output are equipped with two internal buttons for the configuration via display.
