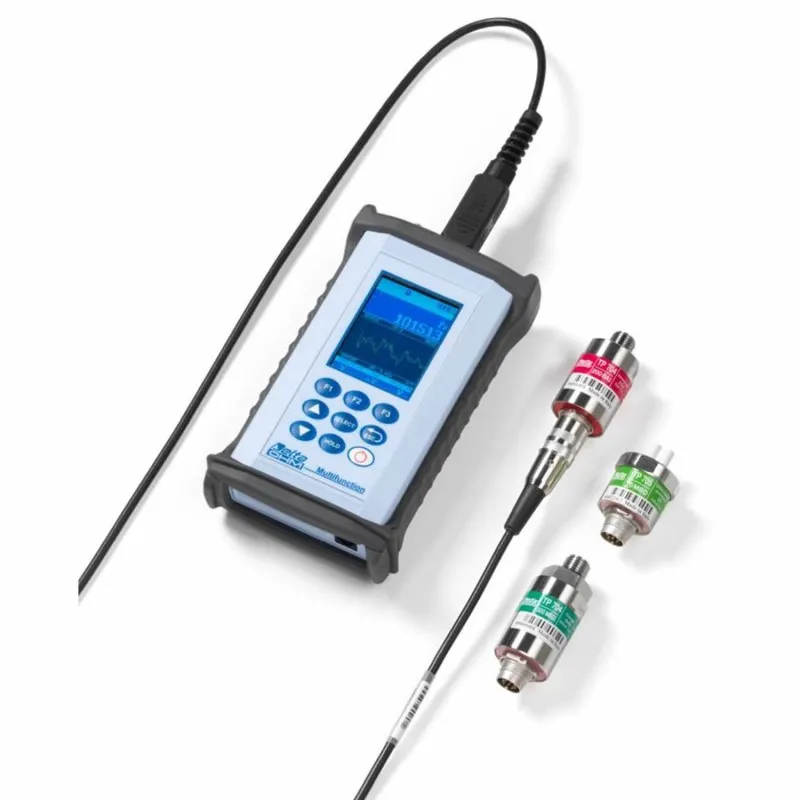

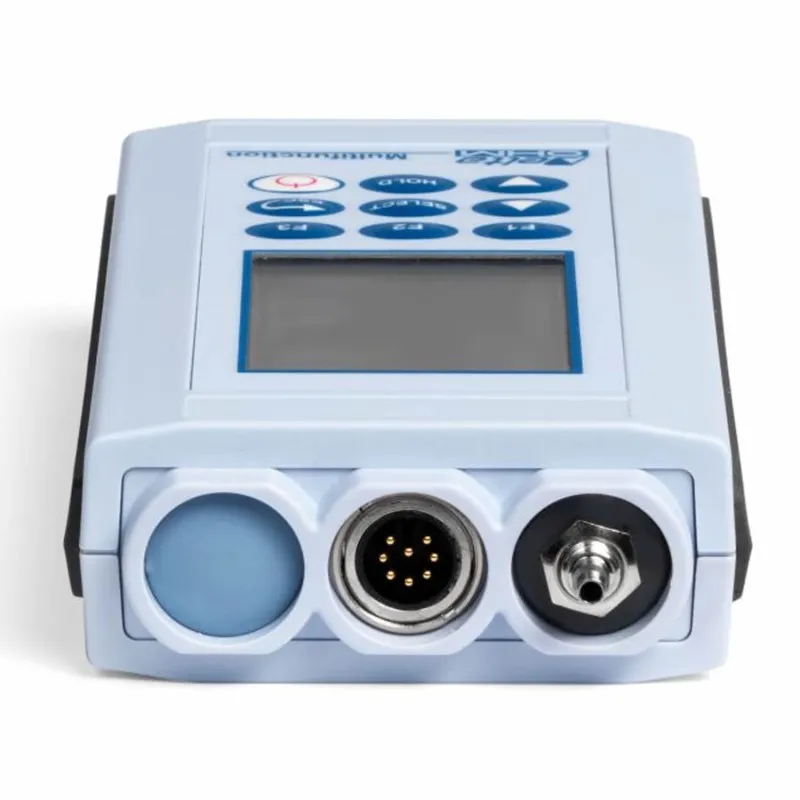

HD3114B is a pressure, temperature and humidity data logger with a large (43 x 58 mm) color graphic LCD display.
The instrument has a built-in precision barometric sensor for the measurement of the atmospheric pressure and the calculation of the following barometric and altimetric derived parameters: barometric tendency and trend, altitude, QNH (atmospheric pressure at mean sealevel calculated considering the international standard atmosphere - ISA), QFE (atmosphericpressure at ground level) and QFF (atmospheric pressure at mean sea level calculated considering the real temperature). The instrument can display the internal temperature of the barometric sensor.
The input for SICRAM probes (intelligent and interchangeable probes capable to store calibrationdata into memory) allows connecting:
The type of SICRAM probe connected is automatically recognized by the instrument.
By connecting a combined relative-humidity and temperature probe, the instrument calculatesthe derived humidity quantities: dew-point temperature, wet-bulb temperature, absolute humidity, mixing ratio, partial vapor pressure, saturated steam pressure, enthalpy. The DI (Discomfort Index) and the NET (Net Effective Temperature) indexes are calculated as well.

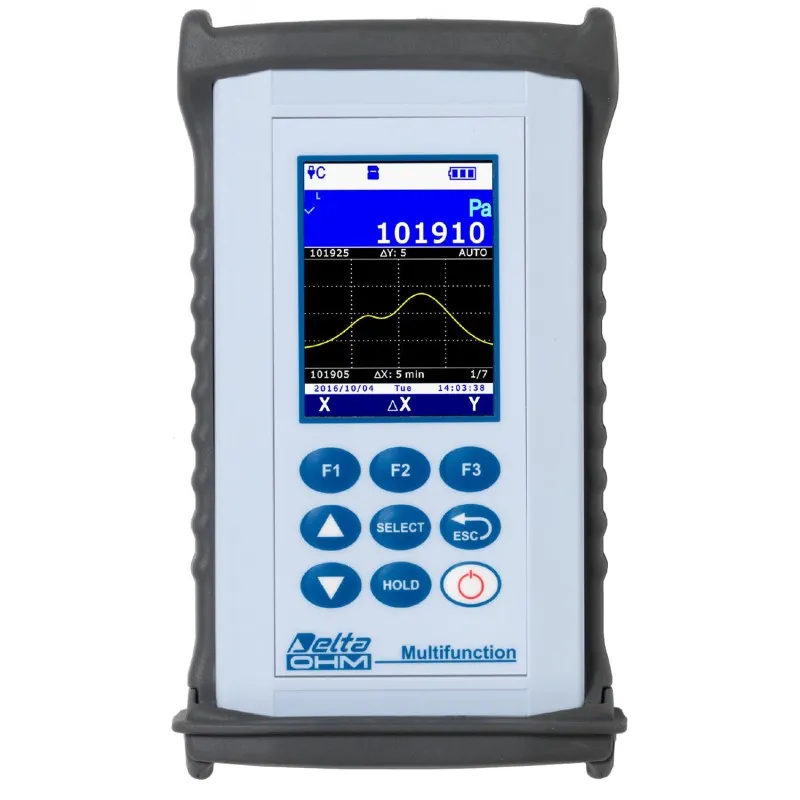

The display can show up to 24 quantities, three of which can be displayed simultaneously in numeric format. A real-time measured quantity graph is shown in the display.
The measuring unit can be selected according to the measured physical quantity.
Data logging function with data storage in CSV format directly into the SD-type Memory Card, fora long logging time (for example, with a 4 GB SD-type card, the logging lasts several monthseven when recording several quantities with the minimum logging interval of 1 second). Userconfigurable storage interval. Manual or programmed logging start/stop. Logging date/time storage of each sample (automatically creates measurement reports in PDF format in the memorycard). Manual RECORD function (acquires the current measurement by simply pressing a button)or automatic RECORD function (acquires the current measurement once per second) for the calculation of minimum, mean and maximum values of the measured quantities.
HOLD function (holds current measurements on the display) and REL function (difference withregard to a stored value).
Functions reserved through user password. USB port with mini-USB connector for PC connection, for configuration and download of the acquired data. The DeltaLog9 application softwareis downloadable from Delta OHM website.
It is provided with MSD (Mass Storage Device) mode, in which the instrument is seen by the PCas a SD card reader, thus allowing direct access to the memory card for displaying, copying ordeleting the logging files.Serial output for the print of the displayed measurements on a RS232C input printer. The BaudRate can be set from 1200 to 115200.
Lithium ion rechargeable battery. Automatic switch-off (may be disabled) after user-configurabledowntime (2, 5, 10, 15, 20 or 30 minutes) for preserving the battery life. External power supplythrough USB input (with mini-USB connector) by connecting a 5 Vdc power supply unit or a PCUSB port (500 mA at least). With an external power supply unit connected, the battery is recharged and the automatic switch-off is automatically disabled.
