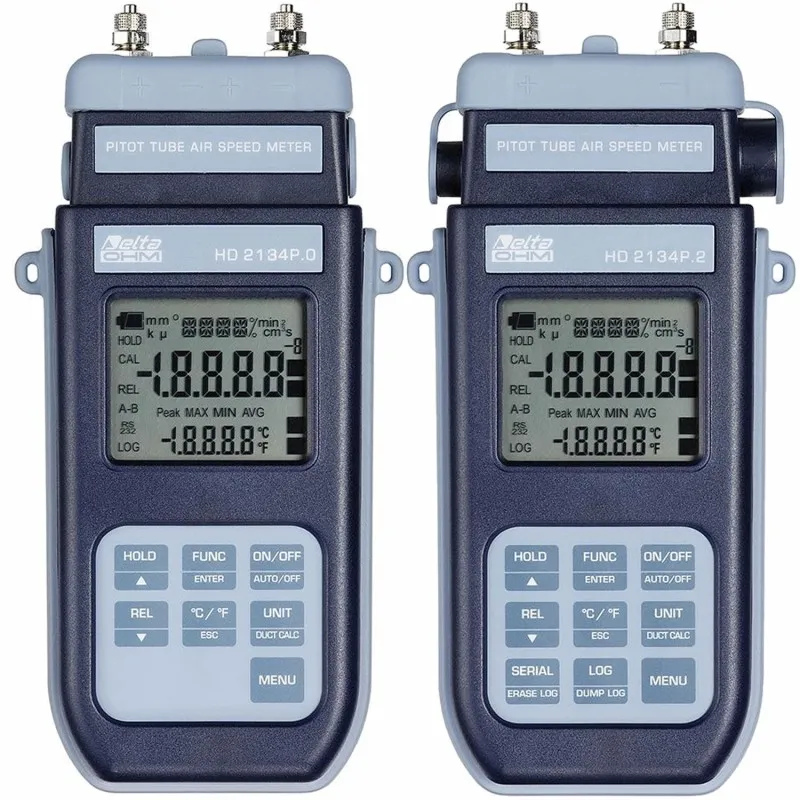

The HD2134P.0 and HD2134P.2 are portable micromanometers for Pitot tubes with large LCD display. They are used to perform measurements in air conditioning, heating and ventilation. They measure the differential pressure measured by Pitot tube connected to the inputs of the instrument and achieve the speed and air fl ow in ducts or vents; also measure temperature with thermocouple K probe. The instruments can be used as thermometers and can be employed with any kind of thermocouple K sensor if a standard miniature connector is used. The HD2134P.2 instruments are dataloggers. They store up to 36,000 samples which can be transferred from the instrument to a PC connected via the RS232C and USB 2.0 serial ports. The storing interval, printing and baud rate can be confi gured using the menu.They are also equipped with an RS232C serial port which can transfer in real time the acquired measurements to a PC or to a portable printer. The Max, Min and Avg function calculates the maximum, minimum or average values. Other functions include: the relative measurement REL, the HOLD function, and the automatic turning off which can be excluded. The instruments have IP66 protection degree.
ORDER CODES

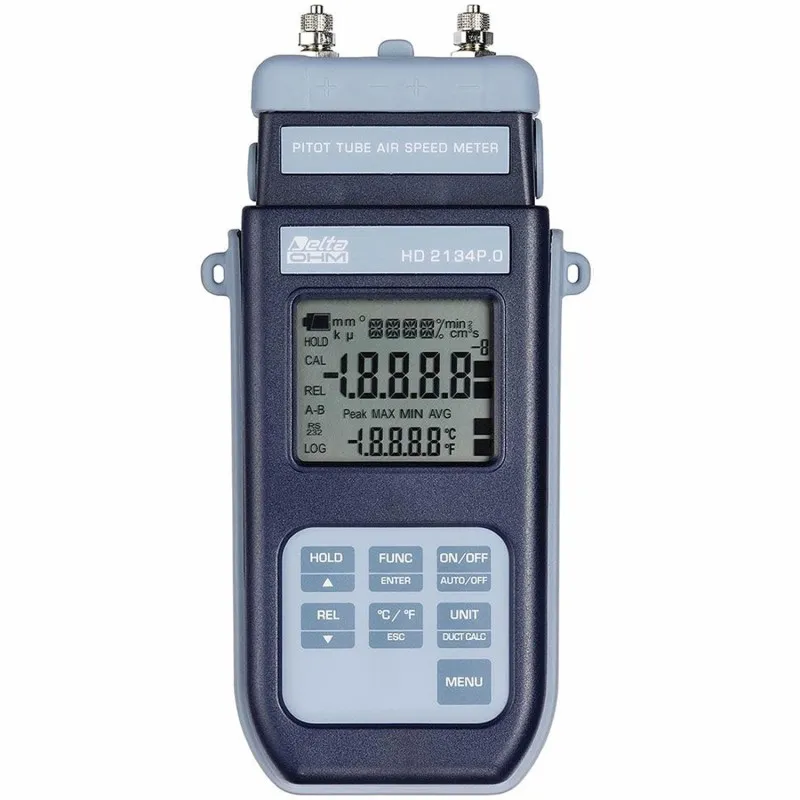

#HD2134P.0: The kit is composed of the HD2134P.0 with 200mbar full scale and thermocouple K input, 4 1.5V alkaline batteries, operating manual, case. The Pitot tubes have to be ordered separately.
#HD2134P.2: The kit is composed of the HD2134P.2 datalogger with 200mbar full scale and thermocouple K input, connection cable HD2101/USB, 4 1.5V alkaline batteries, operating manual, case and DeltaLog9 software. The Pitot tubes have to be ordered separately.
#HD2110CSNM: 8-pole connection cable MiniDin - Sub D 9-pole female for RS232C.
#HD2101/USB: Connection cable USB 2.0 connector type A - 8-pole MiniDin. DeltaLog9: Software fordownload and management of the data on PC using Windows 98 to XP operating systems.
#PW: Extension with male-female standard miniature connectors to connect the Pitot tube’s thermocouple K to the instrument, length 2m.
#AF209.60: Stabilized power supply at 230Vac/9Vdc-300mA mains voltage.
#S’print-BT: On request, portable, serial input, 24 column thermal printer, 58mm paper width.
