Delta Ohm HD2103 Anemometer-Thermometer

Delta Ohm HD2103 Anemometer-Thermometer
Delta Ohm HD2103 Anemometer-Thermometer
Delta Ohm HD2103 Anemometer-Thermometer
Delta Ohm HD2103 Anemometer-Thermometer
Delta Ohm HD2103 Anemometer-Thermometer
Delta Ohm HD2103 Anemometer-Thermometer
Delta Ohm HD2103 Anemometer-Thermometer
Delta Ohm HD2103 Anemometer-Thermometer
Delta Ohm HD2103 Anemometer-Thermometer
Delta Ohm HD2103 Anemometer-Thermometer
Delta Ohm HD2103 Anemometer-Thermometer
from
Rp.15,501,7740
Ex Tax: Rp.15,501,7740
  • Brand: Delta Ohm
  • Part Number: HD2103
  • Availability: 2 - 4 WEEKS
  • Last Updated: 28 May 2025
Delta Ohm Delta Ohm
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: AEMC , CA832 , 2121.23 , Sound Level Meter

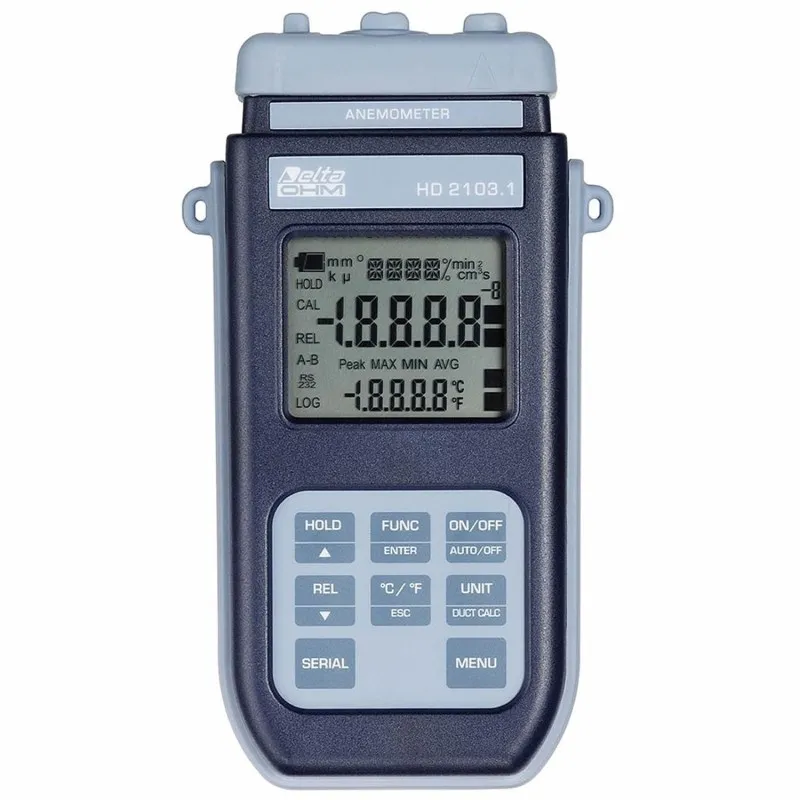

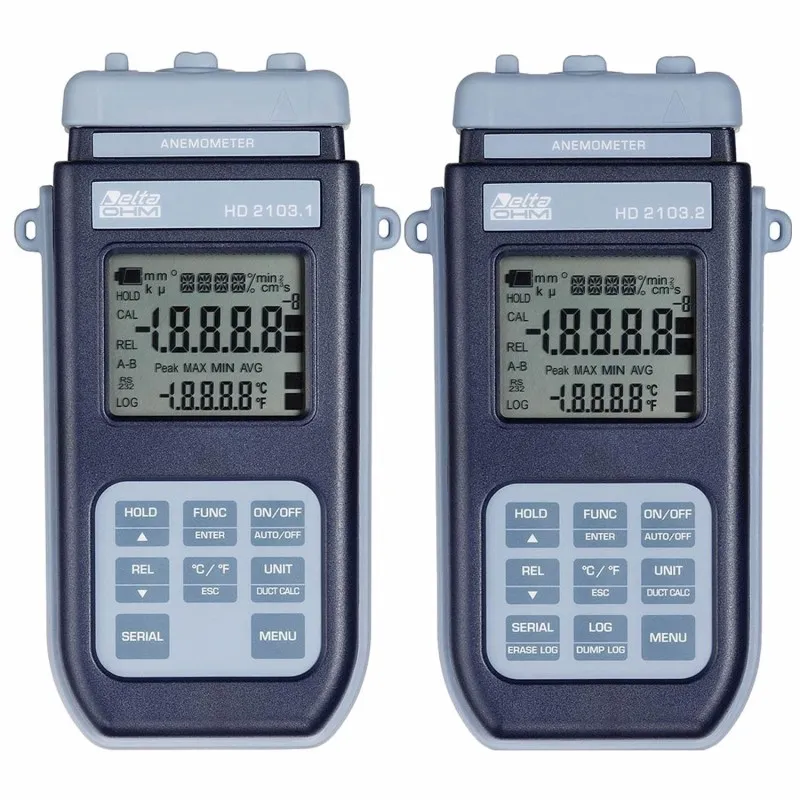

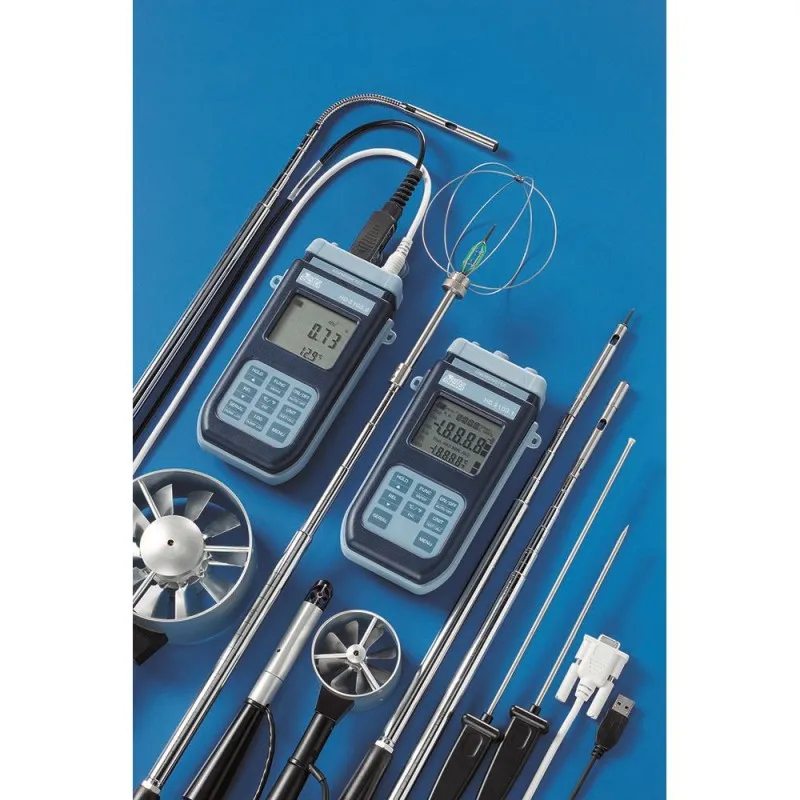

The HD2103.1 and HD2103.2 are portable instruments with a large LCD display. They are designed for use in the fi elds of air conditioning, heating, ventilation and environmental comfort. They use hot-wire or vane probes to measure air speed, fl ow rate, and temperature inside pipelines and vents. Temperature only is measured by immersion, penetration air or contact probes. The temperature sensor used can be chosen from the Pt100, Pt1000. The probes are equipped with the SICRAM module, with the factory calibration data stored inside.

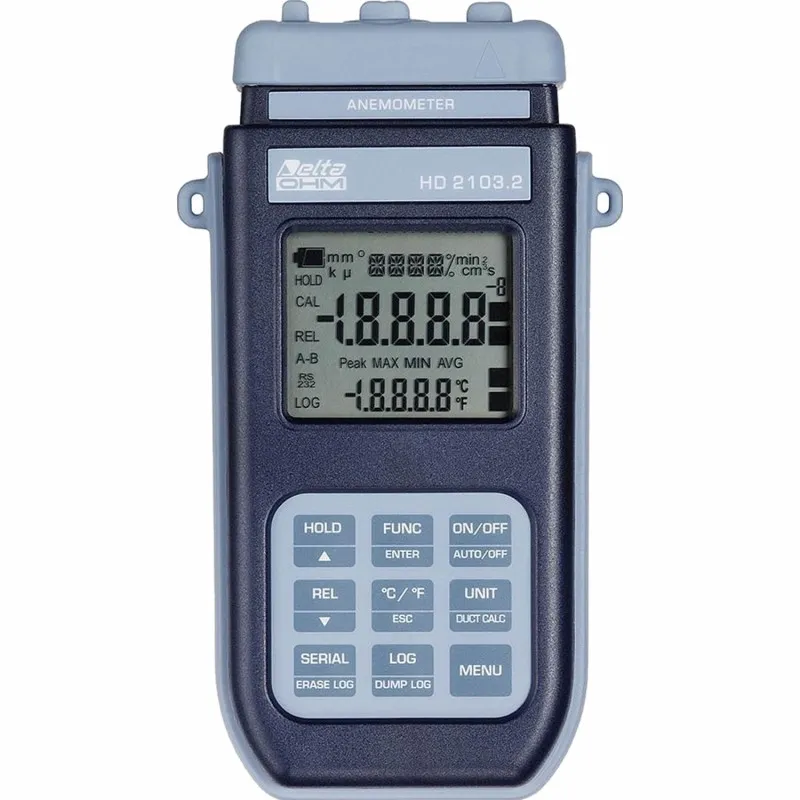

The HD2103.2 instrument is a datalogger. It stores up to 38,000 samples which can be transferred from the instrument to a PC connected via the RS232C and USB 2.0 serial ports. The storing interval, printing and baud rate can be confi gured using the menu. The HD2103.1 and HD2103.2 models are equipped with an RS232C serial port and can transfer the acquired measurements in real time to a PC or to a portable printer. The Max, Min and Avg function calculate the maximum, minimum or average values. Other functions include: the relative measurement REL, the HOLD function, and the automatic turning off that can be excluded. The instruments have IP66 protection degree.

  • ORDER CODES
  • HD2103.1: The instrument HD2103.1, connection cable for serial output HD2110CSNM, 4 1.5V alkaline batteries, operating manual, case and DeltaLog9 software. The probes must be ordered separately.
  • HD2103.2: The kit is composed of the HD2103.2 datalogger, connection cable HD2101/USB, 4 1.5V alkaline batteries, operating manual, case and Delta-Log9 software.
  • #The probes must be ordered separately.
  • HD2110CSNM: 8-pole connection cable MiniDin - Sub D 9-pole female for RS232C.
  • HD2101/USB: Connection cable USB 2.0 connector type A - 8-pole MiniDin. DeltaLog9: Software for download and management of the data on PC using Windows 98 to XP operating systems.
  • AF209.60: Stabilized power supply at 230Vac/9Vdc-300mA mains voltage.
  • Sprint-BT: On request, portable, serial input, 24 column thermal printer, 58mm paper width.
  • Hot-wire probes:
  • AP471 S1: Hot-wire telescopic probe, measuring range: 0 - 40m/s. Cable length 2 metres.
  • AP471 S2: Omni directional hot-wire probe, measuring range: 0 - 5m/s. Cable length 2 metres.
  • AP471 S3: Hot-wire telescopic probe with terminal tip for easy position, measuring range: 0 - 40m/s. Cable length 2 metres.
  • AP471 S4: Omni directional hot-wire telescopic probe with base, measuring range: 0 - 5m/s. Cable length 2 metres.
  • AP471 S5: Omni directional hot-wire telescopic probe, measuring range: 0 - 5m/s. Cable length 2 metres.

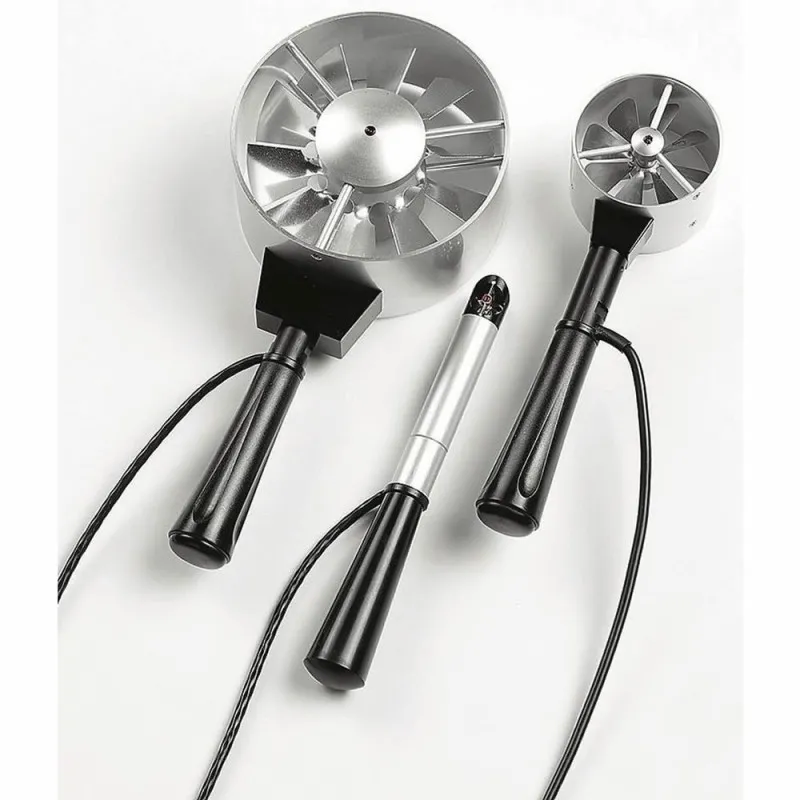

  • Vane probes:

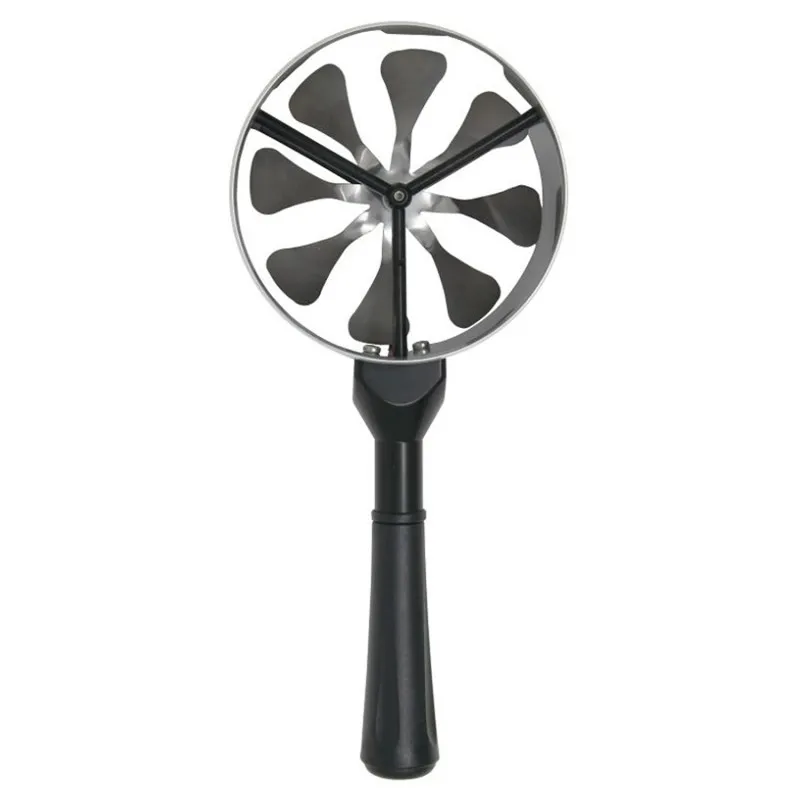

  • AP472 S1L: Vane probe with thermocouple, Φ 100mm. Speed from 0.6 to 20m/s. Temperature from -25 to 80°C. Cable length 2 metres.
  • AP472 S1H: Vane probe with thermocouple, Φ 100mm speed from 10 to 30m/s. Temperature from -25 to 80°C. Cable length 2 metres.

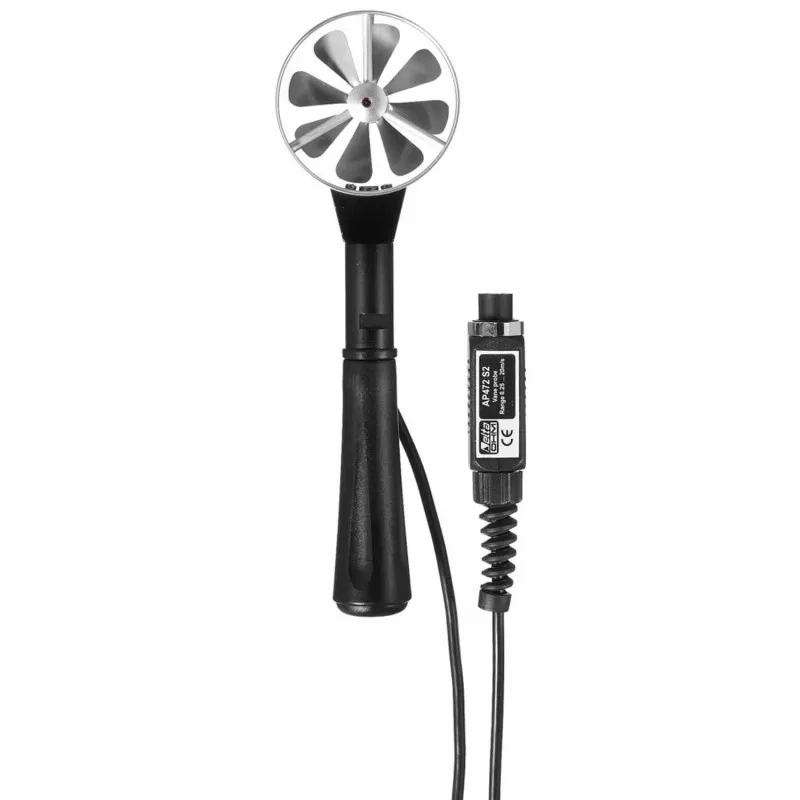

  • AP472 S2: Vane probe, Φ 60mm. Measurement range: 0.25 - 20m/s. Cable length 2 metres.
  • AP472 S4L: Vane probe, Φ 16mm. speed from 0.6 to 20m/s. Cable length 2 metres.
  • AP472 S4LT: Vane probe with thermocouple, Φ 16mm, speed from 0.6 to 20m/s. Temperature from -30 to 120°C with thermocouple K sensor(*). Cable length 2 metres.
  • AP472 S4H: Vane probe, Φ 16mm speed from 10 to 50m/s. Cable length 2 metres.
  • AP472 S4HT: Vane probe with thermocouple, Φ 16mm speed from 10 to 50m/s. Temperature from -30 to 120°C with thermocouple K sensor(*). Cable length 2 metres.
  • Temperature probes:
  • TP472I: Immersion probe, Pt100 sensor. Stem Φ 3 mm, length 300 mm. Cable length 2 metres.
  • TP472I.0: Immersion probe, Pt100 sensor. Stem Φ 3 mm, length 230 mm. Cable length 2 metres.
  • TP473P.0: Penetration probe, Pt100 sensor. Stem Φ 4mm, length 150 mm. Cable length 2 metres.
  • TP474C.0: Contact probe, Pt100 sensor. Stem Φ 4mm, length 230mm, contact surface Φ 5mm. Cable length 2 metres.
  • TP475A.0: Air probe, Pt100 sensor. Stem Φ 4mm, length 230mm. Cable length 2 metres.
  • TP472I.5: Immersion probe, Pt100 sensor. Stem Φ 6mm, length 500 mm. Cable length 2 metres.
  • TP472I.10: Immersion probe, Pt100 sensor. Stem Φ 6mm, length 1000mm. Cable length 2 metres.
  • TP875: Globe thermometer Φ 150 mm with handle, complete with SICRAM module. Cable length 2 metres. Temperature probes without SICRAM module
  • TP47.100: 4 wire direct Pt100 sensor immersion probe,. Probes stem Φ 3mm, length 230mm. Connection cable 4 wires with connector, length 2 metres.
  • TP47.1000: Pt1000 sensor immersion probe. Probes stem Φ 3mm, length 230mm. Connection cable 2 wires with connector, length 2 metres.
  • TP47: Only connector for probe connection: direct 4 wires Pt100 and 2 wires Pt1000.

  Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
Delta Ohm HD2103 [HD2103.1] Anemometer-Thermometer
HD2103.1
Rp.15,501,7740
2 - 4 WEEKS
Delta Ohm HD2103 [HD2103.2] Anemometer-Thermometer With Data Logger
HD2103.2
Rp.18,957,2580
2 - 4 WEEKS
