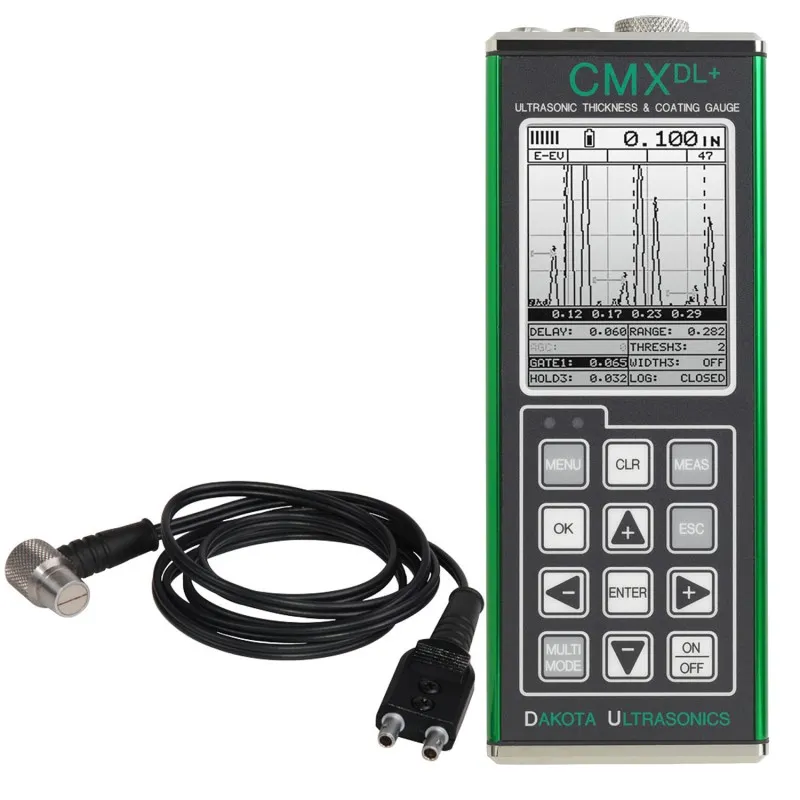

Dakota Ultrasonics CMXDLP [CMXDLP-H] Combination Coating & Wall Thickness Gauge w/ T-102-2900-H High Temp Probe, up to 300 F (150 °C)

Dakota Ultrasonics CMXDLP [CMXDLP-H] Combination Coating & Wall Thickness Gauge w/ T-102-2900-H High Temp Probe, up to 300 F (150 °C)
Dakota Ultrasonics CMXDLP [CMXDLP-H] Combination Coating & Wall Thickness Gauge w/ T-102-2900-H High Temp Probe, up to 300 F (150 °C)
from
Rp.88,485,0000
Ex Tax: Rp.88,485,0000
  • Brand: Dakota Ultrasonics
  • Part Number: CMXDLP-H
  • Availability: 4 - 6 WEEKS
  • Last Updated: 26 Apr 2024
Dakota Ultrasonics Dakota Ultrasonics
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The new DAKOTA Utrasonics CMXDLP+ is the top-of-the-line model in the CMX Series of Gauges that measures both coating and wall thickness quickly and accurately—from only one side. In addition, when switched to Pulse-Echo mode, the CMXDL+ automatically measures and eliminates the coating from the wall thickness measurement, enabling the user to locate the finest corrosion and pitting—without removing the coating.

It features an A-Scan Display Mode allowing the user to see the actual wave form echoes, graphically, providing the insight necessary to tune the settings on the gauge for optimal performance. This is especially important on challenging measurement tasks. The CMXDL+ also features a new E-EV Operating Mode ("Echo-Echo-Verify"), also known as Triple-Echo Mode, which provides addition assurance that the displayed measurement is accurate and fully verified by subsequent echoes.

Oversized graphic LCD is backlit and features easy to read fonts, graphics and display codes showing all critical settings including Velocity, Operating Mode, Alarms, Scan Mode and more. The backlight can be set to ON (always-on), OFF (always-off) or AUTO (automatically-on when measuring).

Five user-selected operating modes are included:
Coating On: Measures wall thickness using Pulse-Echo. It separately displays wall & coating thickness.
Coating Off: Measures wall thickness using Pulse-Echo. It displays wall thickness only.
Temperature Compensated: Measures wall thickness using Pulse-Echo and automatically adjusts calibration to compensate for changes in material temperature.
Thru-Coat: Measures wall thickness only using Echo-Echo. (coating is NOT included).
Coating Only Mode (CT): (Coating Thickness) Measures from 0.0005 to 0.100 inches (0.013 to 2.540 mm). Range will vary slightly depending on the coating.
