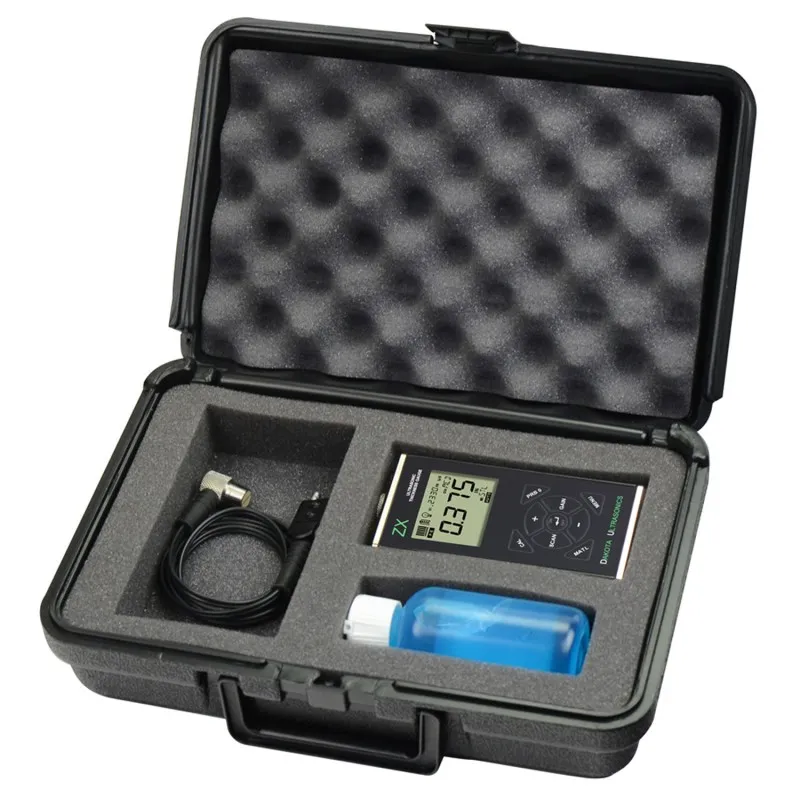

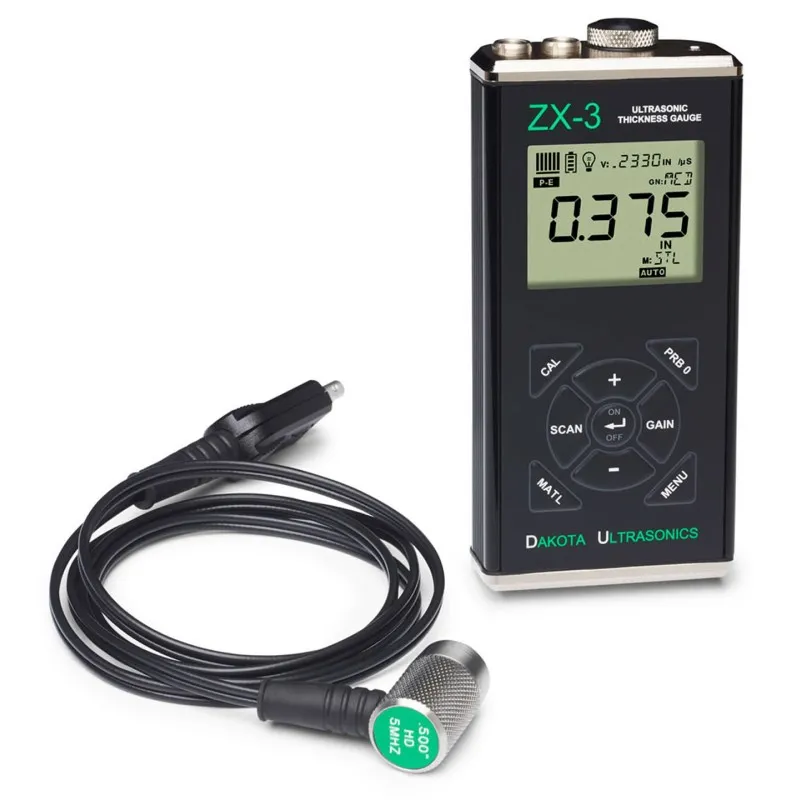

Dakota Ultrasonics ZX-3 [Ultrasonic Wall Thickness Gauge Z-302-0001 With T-102-2000 Probe

Dakota Ultrasonics ZX-3 [Ultrasonic Wall Thickness Gauge Z-302-0001 With T-102-2000 Probe
Dakota Ultrasonics ZX-3 [Ultrasonic Wall Thickness Gauge Z-302-0001 With T-102-2000 Probe
Dakota Ultrasonics ZX-3 [Ultrasonic Wall Thickness Gauge Z-302-0001 With T-102-2000 Probe
Dakota Ultrasonics ZX-3 [Ultrasonic Wall Thickness Gauge Z-302-0001 With T-102-2000 Probe
Dakota Ultrasonics ZX-3 [Ultrasonic Wall Thickness Gauge Z-302-0001 With T-102-2000 Probe
from
Rp.44,985,0000
Ex Tax: Rp.44,985,0000
  • Brand: Dakota Ultrasonics
  • Part Number: Z-302-0001
  • Availability: 4 - 6 WEEKS
  • Last Updated: 26 Apr 2024
Dakota Ultrasonics Dakota Ultrasonics
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

Total Measuring Range (depends on material and transducer/probe type): 0.025 - 36.000 inches (0.63 - 914.4 mm)
Measuring Range on Steel (with standard T-102-2000 probe): 0.040 - 8.00 inches (1.00 - 199.9 mm)
The Dakota Ultrasonics ZX-3 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side! It can measure thickness up to 36 inches (915 mm), depending upon the material and transducer.

The Dakota Ultrasonics ZX-3 combines the best features of the ZX-2 allowing the operator to select from 8 preset materials as well as program 2 custom material velocities, plus allows free adjustment of the velocity as desired and allows the end-user to calibrate to a sample of known thickness where the velocity is automatically calculated. Additionally, to optimize linearity over a wide range, the user can perform a 2 point calibration to two samples of known thickness. The optimal velocity is automatically calculated to provide the highest accuracy and linearity between the low and high calibration points.

The ZX-3 can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

The ZX-3 probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed (IP65) to provide trouble-free operation under the toughest field conditions
