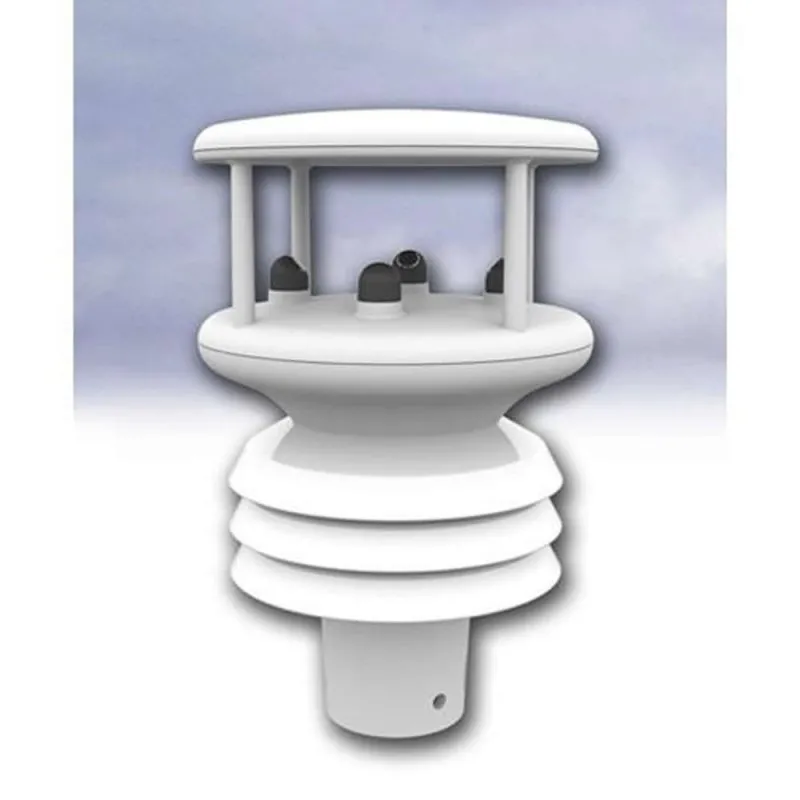

Columbia Magellan [9901-A-1] Weather Station, Without Viewing Option

Columbia Magellan [9901-A-1] Weather Station, Without Viewing Option
Columbia Magellan [9901-A-1] Weather Station, Without Viewing Option
from
Rp.118,500,0000
Ex Tax: Rp.118,500,0000
Columbia Weather Systems Columbia Weather Systems
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Additel , Digital , Pressure , Calibrators

The Magellan MX weather stations are based on GILL Instruments all-inone MaxiMet transmitters, which offer a wide range of weather station configurations.

The Magellan MX series features sensor transmitters with a built-in electronic compass and GPS. Models that include a wind sensor are able to report apparent and true wind speed and direction, and GPS information.

Available in three configurations – fixed-mount, vehicle-mount, and portable – Magellan MX data can be monitored with our proprietary Weather Display Console and WeatherMaster™ Software, as well as with third-party software.

The Weather MicroServer is available for Ethernet connectivity, Modbus/TCP, Modbus RTU and SNMP interface, Weather Underground and CWOP interface, XML weather data, and FTP.

The standard Magellan MX configuration communicates over RS-232 and is provided with a 50ft sensor cable. If a cable length greater than 200ft is needed the Magellan MX can also be ordered with RS-485 communication.

The display console is flexible and can be factory-programmed to suit specific market and industry requirements. It is available in three mounting options:

  • Desktop/Wall-Mount
  • Panel Mount/Flush Mount
  • 19'' Rack Mount
WeatherMaster™ Software.
This professional-grade software is designed to optimize the capabilities of CWS Weather Stations. Providing real-time computer weather monitoring, WeatherMaster offers:
  • Display and automatic logging of all measured and calculated parameters
  • Downwind vector wind and wind character-plotting screens
  • An open Microsoft Access® database for archival with easy retrieval and compatibility with other
     Windows® programs
  • On-the-fly graphing and trend display of all parameters
  • Alarm notification via computer, email, pager or cell phone
  • Multi-station monitoring and data acquisition
  • Quick-North orientation
  • Interface with CAMEO/ALOHA software for plume modeling and evacuation corridor predictions

WeatherMaster™ Software Weather Display Console™ The Weather Display Console uses “intelligent” touch-screen technology.

Weather MicroServer.
The Weather MicroServer is a self-contained, proprietary computer utilizing an embedded Linux operating system. It creates an “Internet-ready” weather monitoring system by automatically providing FTP output, XML web service, and Internet browser user interface. SNMP and Modbus/OPC communication protocols are standard for Industrial Management applications. The Weather MicroServer has datalogging capability. It connects to your network with an included Ethernet cable.

Two serial ports offer interface to both the Weather Display Console and additional peripheral devices or sensors such as visibility, solar radiation, and the Orion LT wind sensor. The Weather MicroServer can provide real-time weather data to WeatherMaster Software over the network. This allows users to simultaneously monitor the weather using WeatherMaster on any network computer.

Features:

  • Weather protected multi-sensor design
  • GPS for compensated wind speed
  • Automatic self-alignment of wind direction using internal compass
  • Reliable, quick deploy/install
  • Low power consumption - ideal for battery or solar-powered installations
  • No mechanical components
  • One year warranty

    What's In The Box:

    • (1) Magellan Sensor Transmitter
    • (1) 50 ft sensor cable + additional cable length if ordered
    • (1) Interface Module with (2) 3-position terminal blocks
    • (1) 12VDC power supply
    • (1) User Manual
    • (1) 6-foot RS-232 cable + additional cable length if ordered
    • (1) Mounting Adapter with Hex Key
    • Weather MicroServer (Optional)
    • Surge Arrestor (Optional)
    • Weather Display Console (Optional)
    • WeatherMaster software and user manual (Optional)

    Brochure/Datasheet

    Instruction manual

    Note: Prices are not binding , subject to change without prior notice
