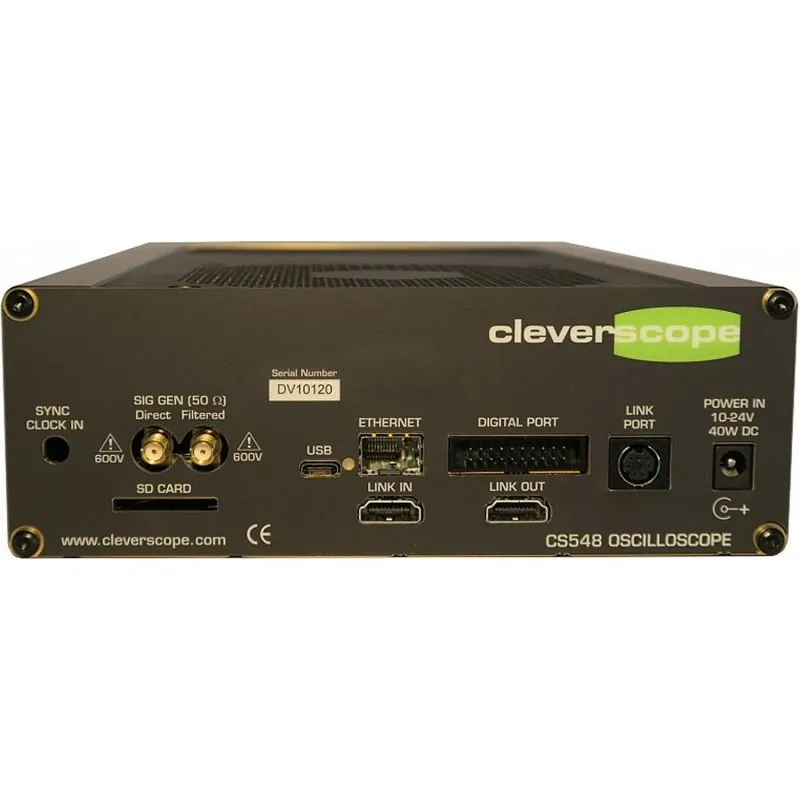

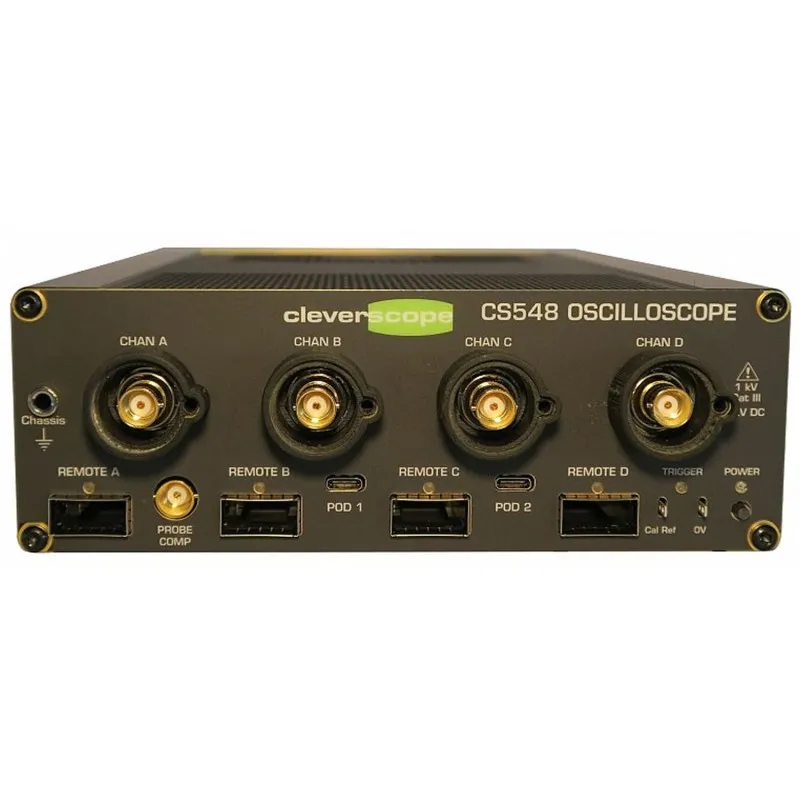

Name: Cleverscope CS548 4-Ch 200MHz 500 MSa 14-bit Isolated Oscilloscope
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Cleverscope CS548 4-Ch 200MHz 500 MSa 14-bit Isolated Oscilloscope

0 reviews • Write a review

from

Rp.256,685,0000

Ex Tax: Rp.256,685,0000

Brand: CleverScope
Part Number: CS548
Availability: 4 - 6 WEEKS
Last Updated: 05 Apr 2024

CleverScope

Qty

Add to Cart

Add to Wish List Compare this Product

Description

The CS548 is an individually isolated channel high CMRR oscilloscope with four channels. We can supply the unit with fewer channels – from none to three if that is all that is required. It is designed to measure all the signals in an operating full or three phase power electronic switching bridge on both the low and high sides. Examples include gate drives to measure voltage and charge, the power switch to measure loss and parasitic stress, the output to measure power and spectrum for EMC compliance, and the control system for Gain/Phase and stability. The CS5X8 includes an isolated signal generator for stimulus, and two expansion pod connectors for isolated input and output functions. Two CS548's can be slaved to make an 8 channel oscilloscope with coherent sampling. See the selected measurements at the end of the specification section for visual examples of measurements made.

Related Products

Quickview

Brand: CleverScope

Cleverscope CS1200 IsoPod Remote Isolated Digitizer

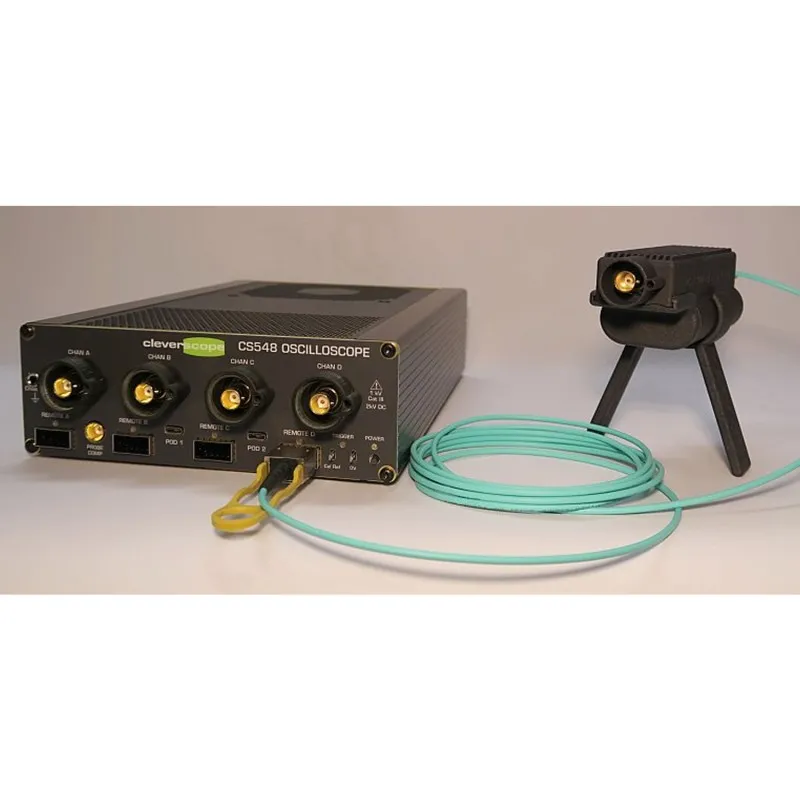

The CS1200 IsoPod is a remote isolated digitizer Pod for the CS548. It uses a standard QSFP terminated active optical cable (AOC) to connect the CS120..
