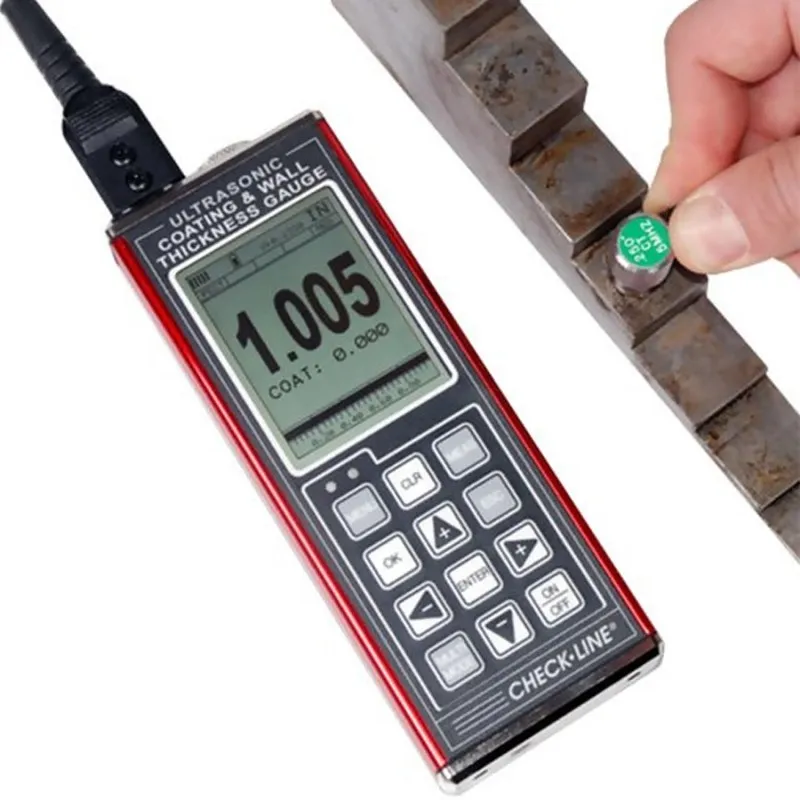

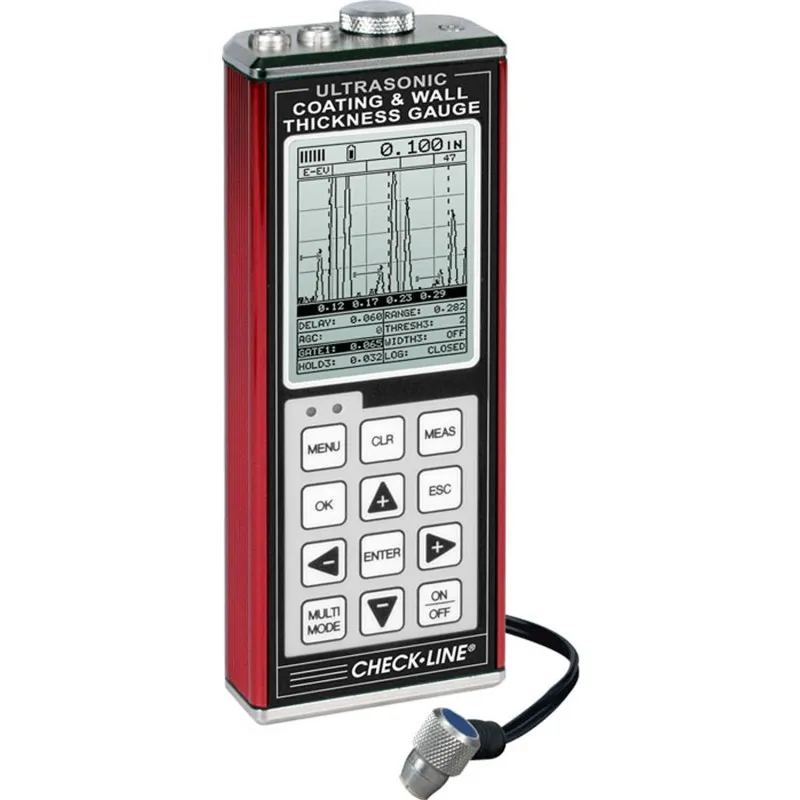

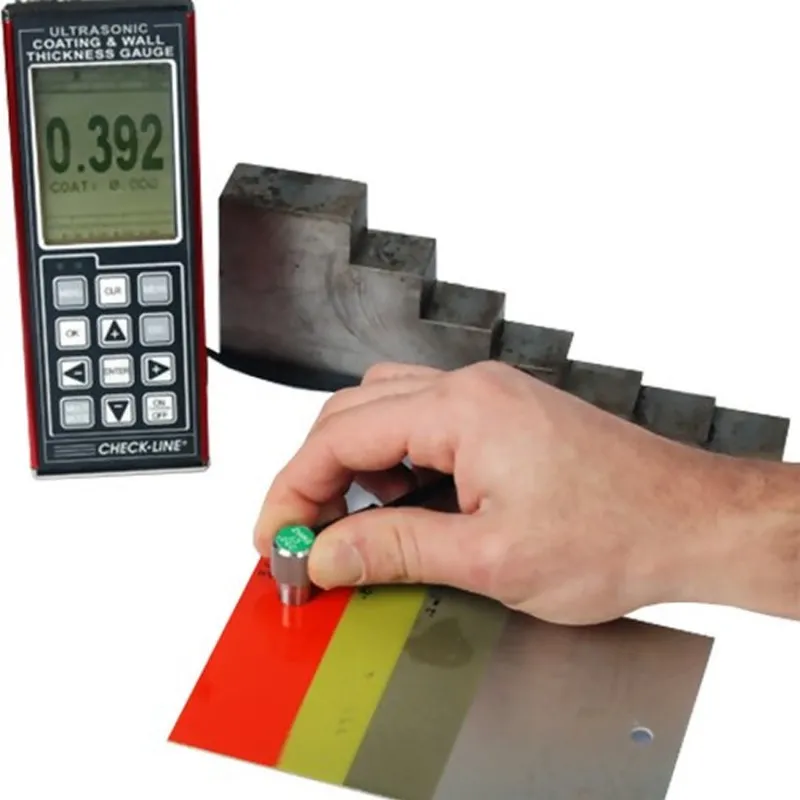

The TI-CMXDLP automatically eliminates the coating from the wall thickness measurement (Pulse-Echo mode), enabling users to locate the fi nest corrosion and pitting—without removing the coating. It features an A-Scan Display Mode that graphically shows the wave form echoes, allowing gauge settings to be tuned foroptimal performance—critical on challenging measurement tasks. The new E-EV Operating Mode (Echo-EchoVerify), also known as Triple-Echo Mode, provides addition assurance that the displayed measurement is accurate and fully verifi ed by subsequent echoes.
The TI-CMXDLP-C features an oversized, backlit graphic color LCD with easy-to-read fonts, graphics and display codes showing all critical settings including velocity, operating mode, alarms, scan mode and more With ultra hi-speed processing (display update refresh of 120 times/second), TI-CMXDLP-C is also an extremely effective tool when used in the Flaw “Prove-up” Mode, simulating the function of a Flaw Detector at a fraction of the cost to identify and locate cracks, dis-bonds, weld defects, etc. It also includes a “dampening feature” which helps fi lter the raw waveform data toclean-up the signal, especially with very low and very high frequency probes.
