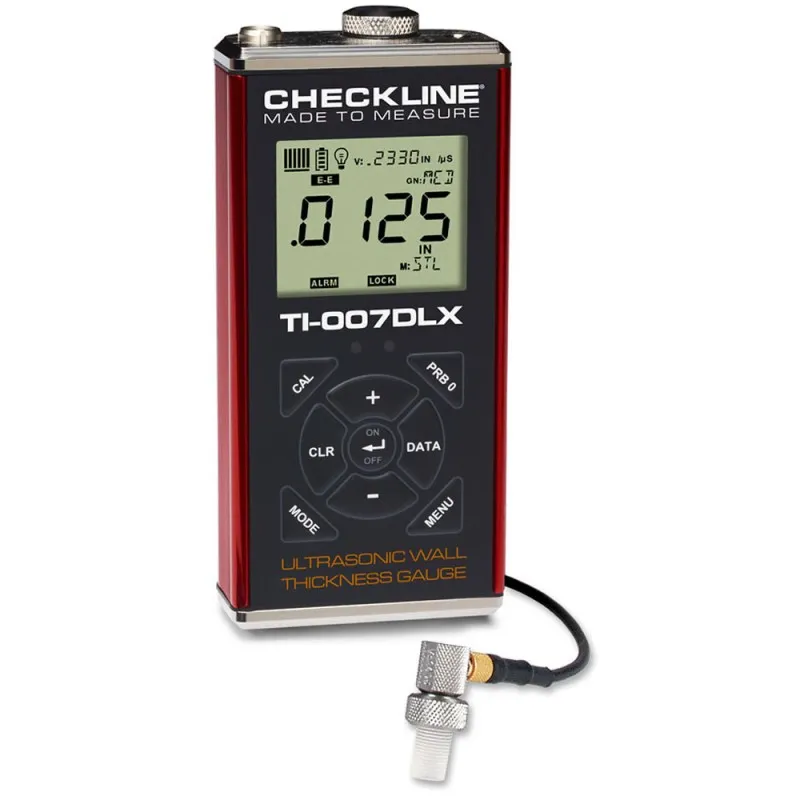

Checkline TI-007DLX Data Logging Precision Ultrasonic Wall Thickness Gauge

Name: Checkline TI-007DLX Data Logging Precision Ultrasonic Wall Thickness Gauge
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

0 reviews • Write a review

from

Rp.69,248,261

Brand: Checkline
Part Number: TI-007DLX
Availability: 4 - 6 WEEKS
Last Updated: 10 Mar 2025

Checkline

Qty

Add to Cart

Add to Wish List Compare this Product

Configure Options

Tags: Additel , Digital , Pressure , Calibrators

Description

Range with Standard Delay Line Transducer: 0.0060" - 1.000" / 0.150 - 25.40 mm; Range with Contact Transducers: up to 36.00" / 915.0 mm. The TI-007DLX is a precision ultrasonic wall thickness gauge designed for high-resolution measurements on thin-wall metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments. The built-in datalogger has a capacity of 10,000 data values stored in up to 40 batches with 250 values/batch which is transferred via the USB port using the supplied cable. The TI-007DLX does not require any software, it will be shown as a drive when connected to a PC allowing convenient drag-n-drop into your program of choice. Data is saved in a comma deliminated file format (.csv) which makes it compatible with all programs and software. The TI-007DLX has measuring range in steel from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in Echo-Echo Mode (E-E) as well as automatically switch to Interface Echo Mode (I-E)when measuring thicker materials, For measurement of plastics, the user would select Plastic Mode (PLAS) and use the option Graphite Delay Line Tip (p/n X-633-0000). Additional Measuring Modes include Differential (DIFF) where a user sets a "nominal value" and the gauge displays the ± difference between then nominal and actual wall thickness, Alarm (user-set Hi/Low Limits) trigger Hi/Lo LED's when the measured values are out of tolerance and Velocity Mode. The TI-007DLX can also be used with single element contact transducers for wall thickness measurements up to 36 inches (923 mm).
