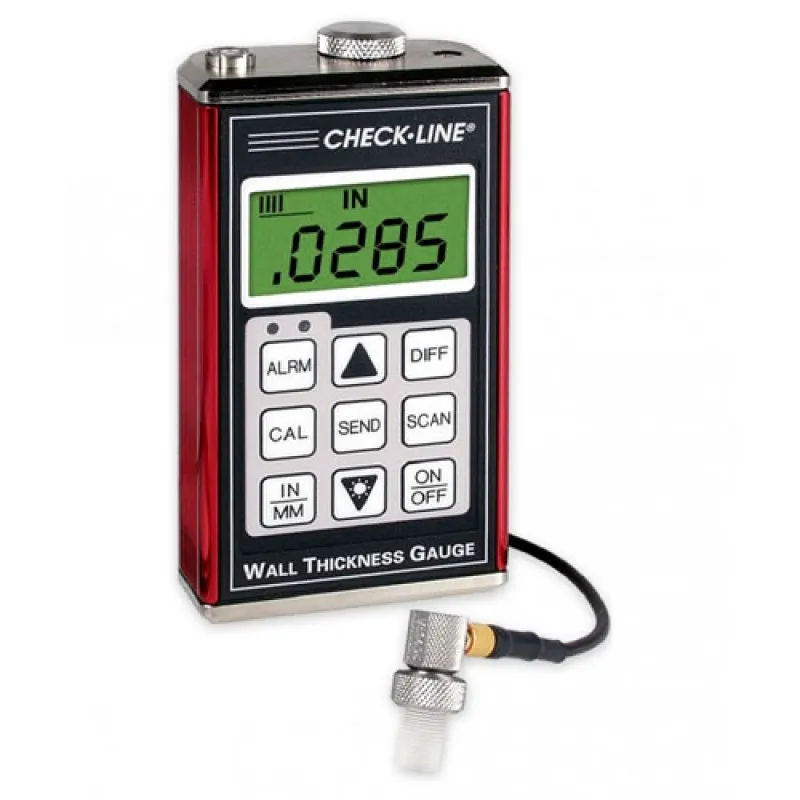

Checkline TI-007 [TI-007] Precision Ultrasonic Wall Thickness Gauge [DSCONTINUED] SEE TI-007X

Checkline TI-007 [TI-007] Precision Ultrasonic Wall Thickness Gauge [DSCONTINUED] SEE TI-007X
Checkline TI-007 [TI-007] Precision Ultrasonic Wall Thickness Gauge [DSCONTINUED] SEE TI-007X
from
Rp.43,175,0000
Ex Tax: Rp.43,175,0000
  • Brand: Checkline
  • Part Number: TI-007
  • Availability: DISCONTINUED
  • Last Updated: 05 Apr 2024
Checkline Checkline
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

Measuring Range in Steel
0.0060 - 1.000 inches
0.150 - 25.40 mm

The TI-007 is a precision ultrasonic wall thickness gauge specifically suited to make extremely precise and high-resolution measurements on thin-walled metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.

The gauges have a MEASURING RANGE from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in ECHO-TO-ECHO MODE as well as automatically switch to interface echo mode when measuring thicker materials and plastics.

Features:

  • Resolution of 0.0001 inch (0.001 mm)
  • Large, backlit LCD display retains last reading
  • TI-007-GT model available with Graphite Tip for measuring plastics
  • Selectable units of inch or mm
  • RS-232 Data output of individual values for connection to data collection or quality control systems
  • CE Certified
  • Includes NIST-Traceable Calibration Certificate
  • IP 65 Rated

What's In The Box:

  • (1) Gauge
  • (1) T-402-5507 probe
  • (1) 4 oz. bottle of coupling fluid
  • (2) AA batteries
  • (1) NIST-Traceable Calibration Certificate
  • (1) Operating Instruction Manual
  • (1) Foam-fitted carrying case.

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice
