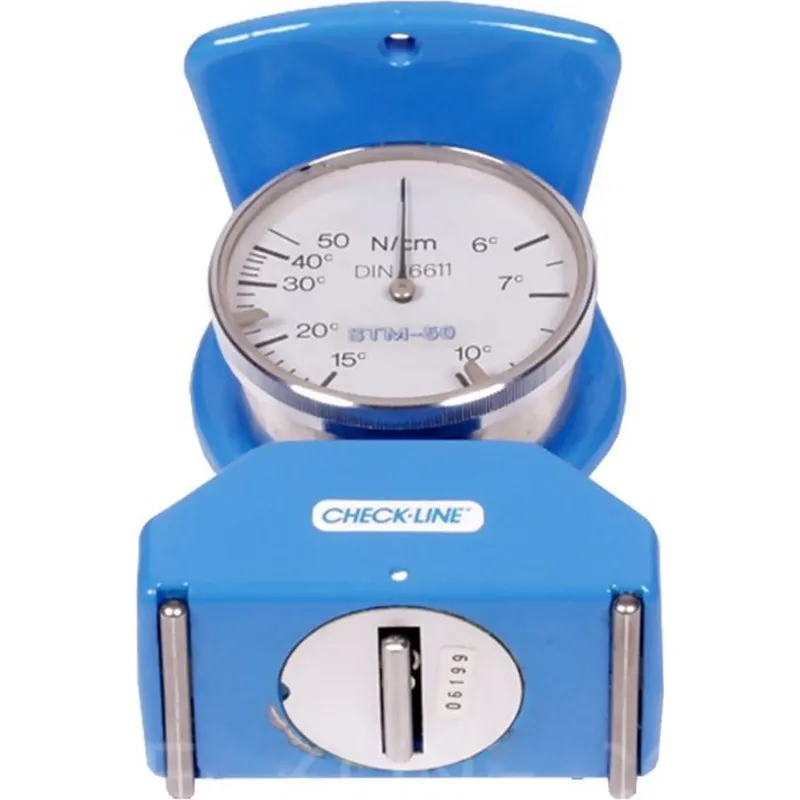

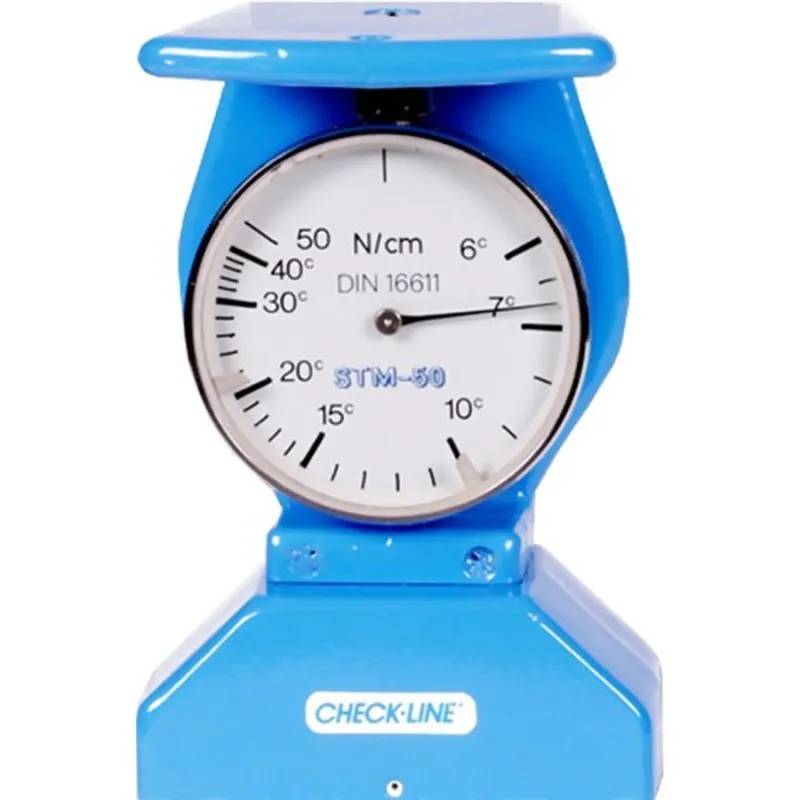

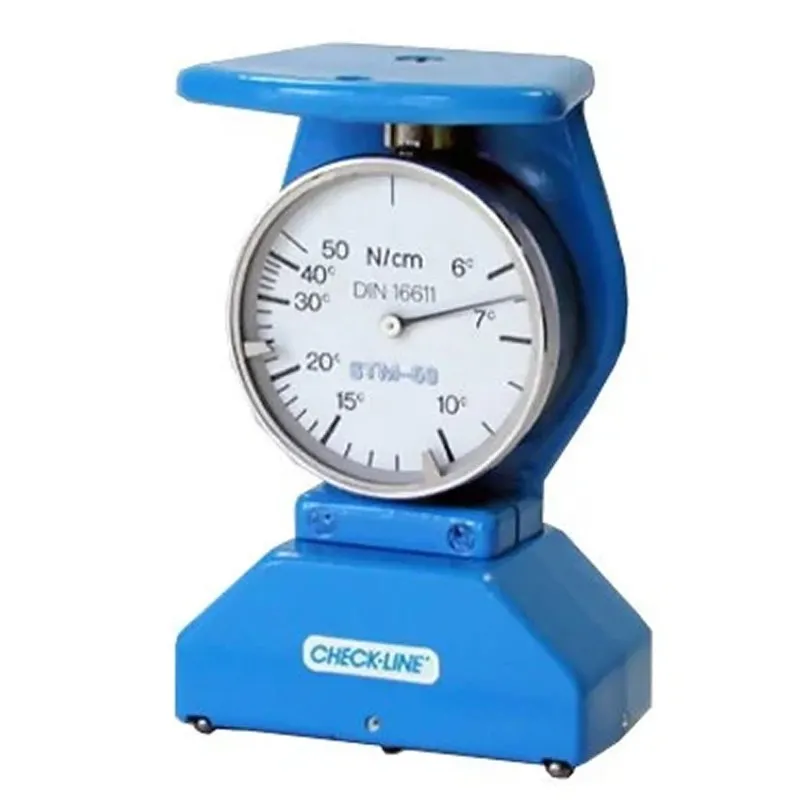

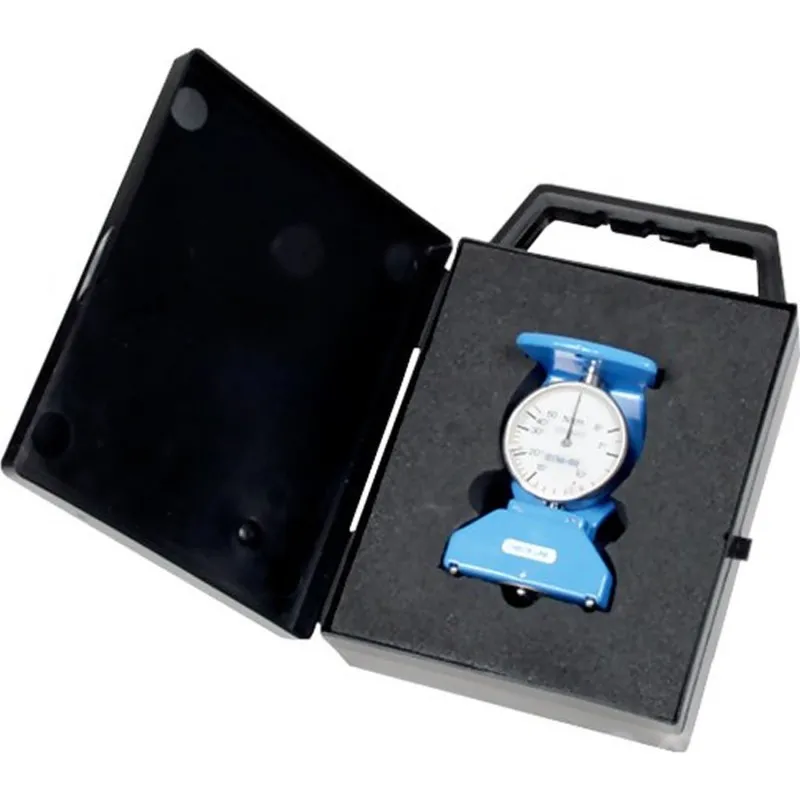

Checkline STM-50 Tension Meter For Screen Printing

Checkline STM-50 Tension Meter For Screen Printing
Checkline STM-50 Tension Meter For Screen Printing
Checkline STM-50 Tension Meter For Screen Printing
Checkline STM-50 Tension Meter For Screen Printing
Checkline STM-50 Tension Meter For Screen Printing
Checkline STM-50 Tension Meter For Screen Printing
Checkline STM-50 Tension Meter For Screen Printing
Checkline STM-50 Tension Meter For Screen Printing
Checkline STM-50 Tension Meter For Screen Printing
0 reviews • Write a review
from
Rp.19,929,0320
  • Brand: Checkline
  • Part Number: STM-50
  • Availability: 4 - 6 WEEKS
  • Last Updated: 05 Apr 2024
Checkline Checkline
Add to Cart
Add to Wish List Compare this Product
Tags: Fluke , Basic , Battery , Analyzer

Range: 6 - 50 N/cm
The STM-50 Screen Tension Meter is designed to measure how taut a woven material is when tension has been applied in two directions at right angles to each other, as in the case of a screen printing frame.

Its operating principle is similar to that employed by the CHECKLINE Durometers, except that it is fitted with a one-inch bar indentor placed midway between two outer "reference" bars spaced two inches apart, instead of an indentor ball. When the instrument is placed on the material, the greater the tension, the more the bar will be pushed in, and the greater the reading on the scale.
