Max Cable Diameter - 1.5" (38.1mm)

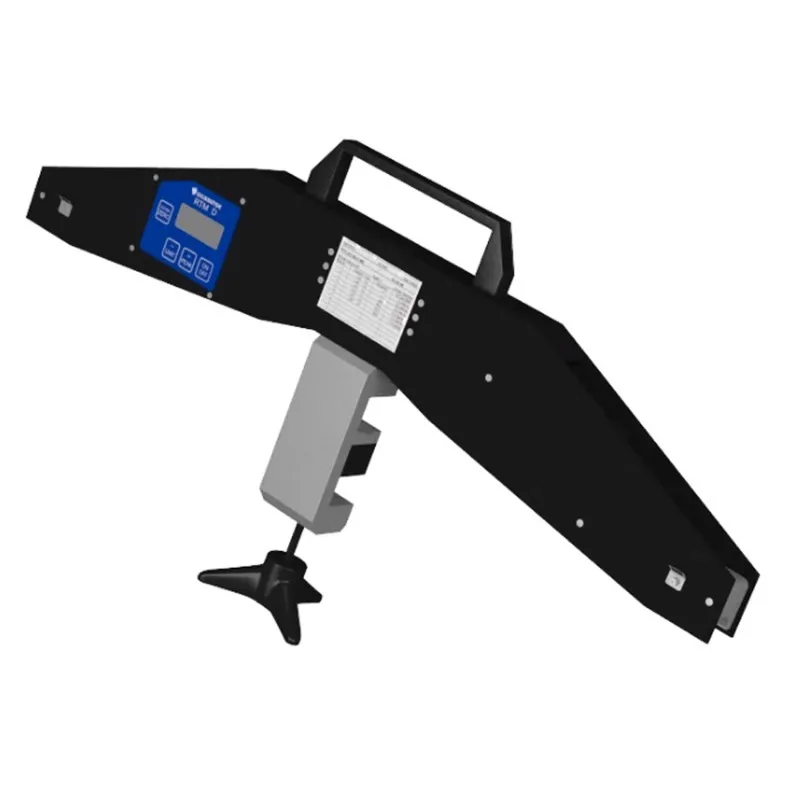

The RTM is a cable tension meter specially developed for the determination of (high) tension in cables like guy wires, support cables, architectural cables etc. The RTM can be placed directly on the cable. De device will show the tension on the display.

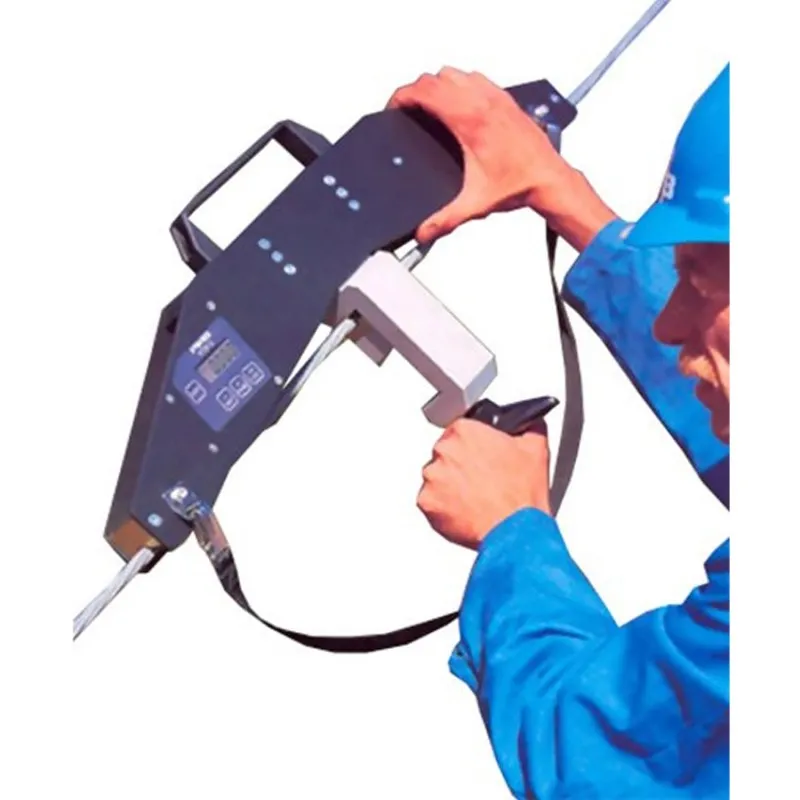

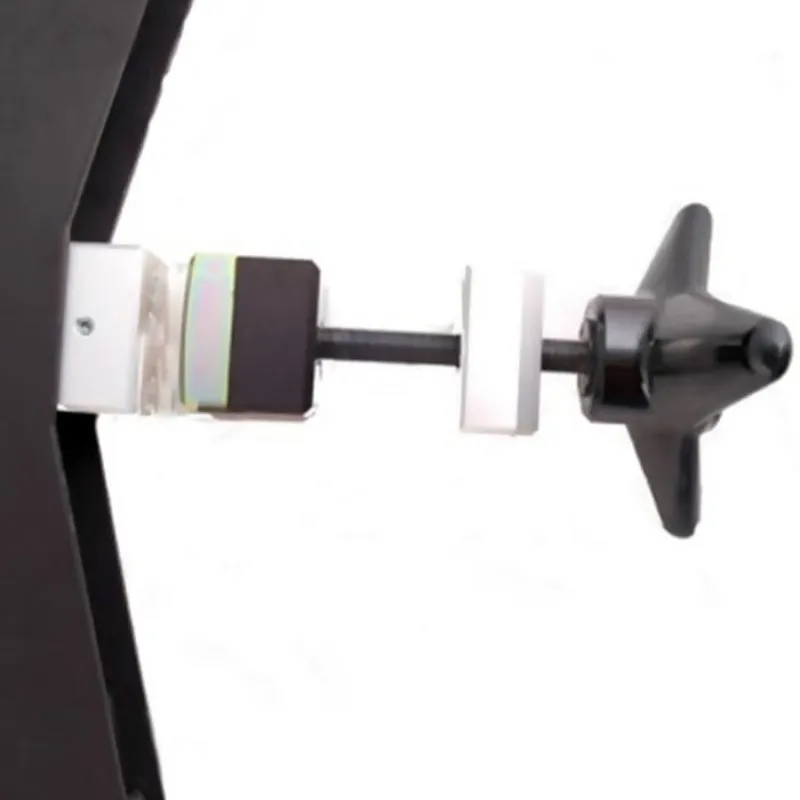

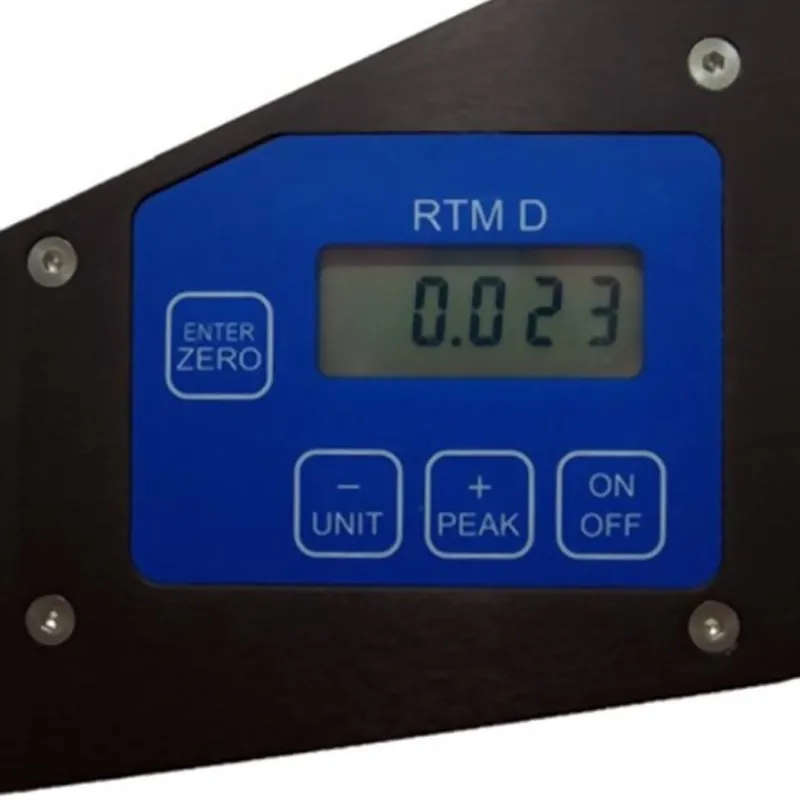

The RTM is very simple and handy to use. Simply hold and "clip" it to the rope to be tested and use the large hand screw to deflect the rope to a fixed angle. The resultant force will then affect the load cell and measure the tension in the wire rope. The resultant signal is then digitally processed and displayed in a graduation selected and pre programmed. The RTM 20D can display kN, klbs or in ton.
The RTM is suitable for measurements up to 44,000 Lbs (22 tons) and cable diameters up to 1.5". De measured values are directly shown on the display without use of a reference table.
Measuring principle:

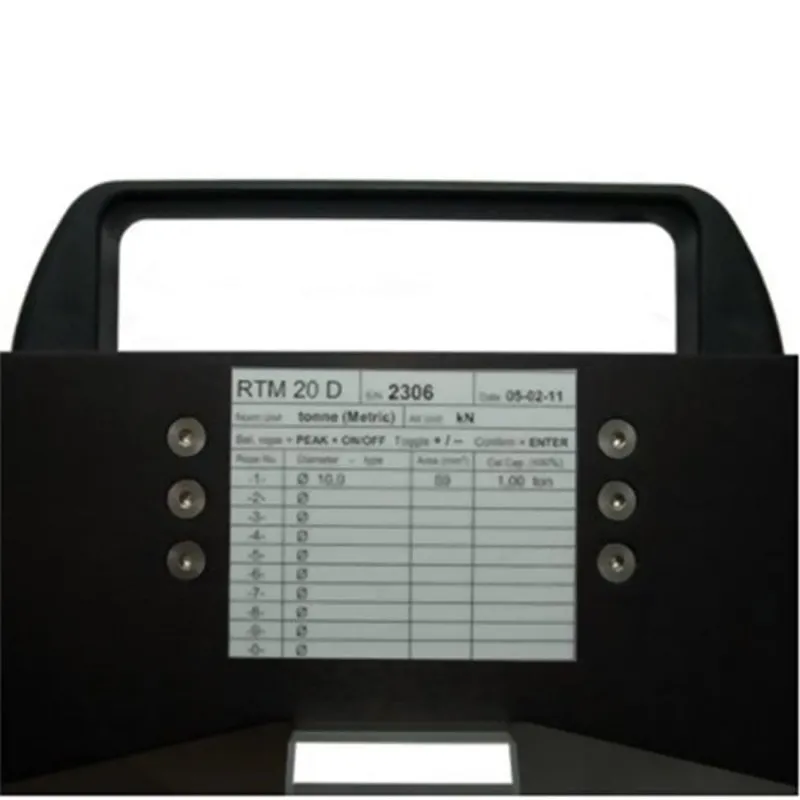

The RTM is placed on the cable under a predefined angle. This angle is then used to determine the tension in the cable. Since the gauge is calibrated to the cable that is measured it will directly show the tension value. These calibrations can be saved inside the gauge and it is possible to save up to 10 different cable calibrations. Values can be displayed in N or Lbs.
Safety:
The RTM determines quickly, safely, accurately and conveniently cable tension. It can withstand force two times its rated capacity without damage. The RTM features hardened steel cable guides which ensures trouble-free operation in the toughest outdoor environments.
