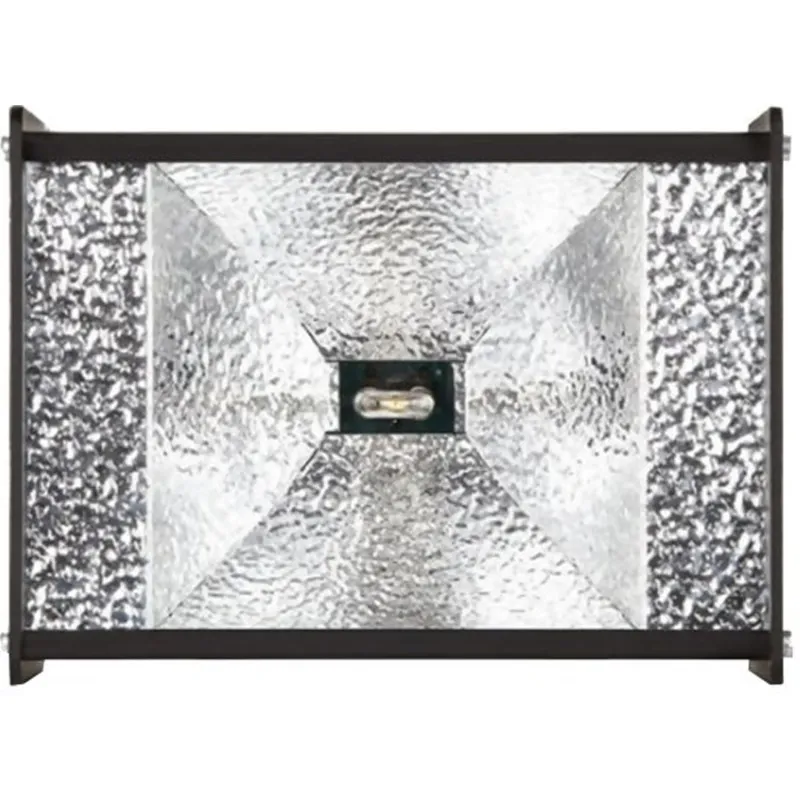

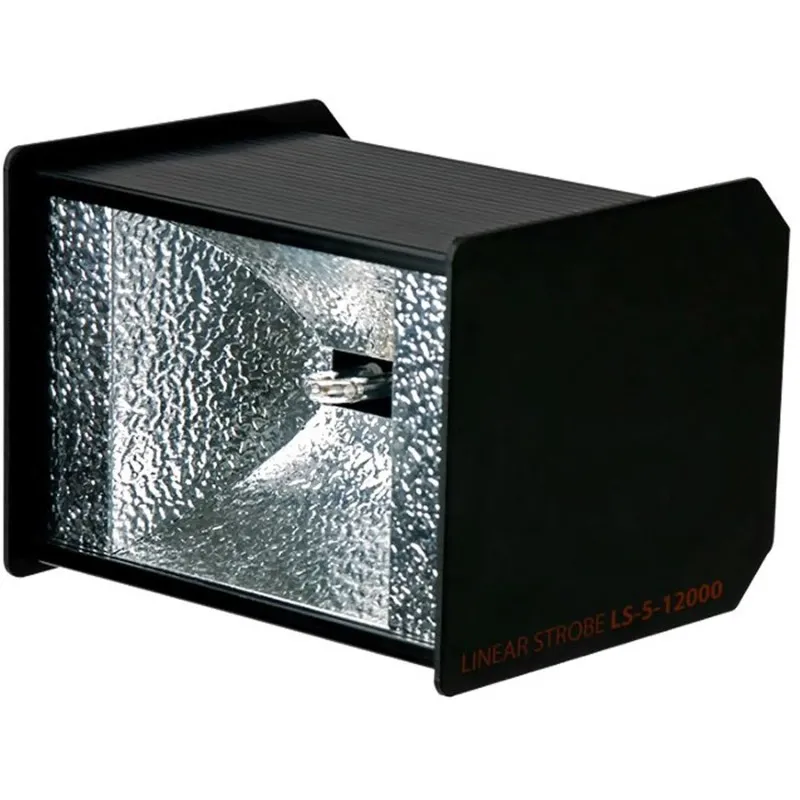

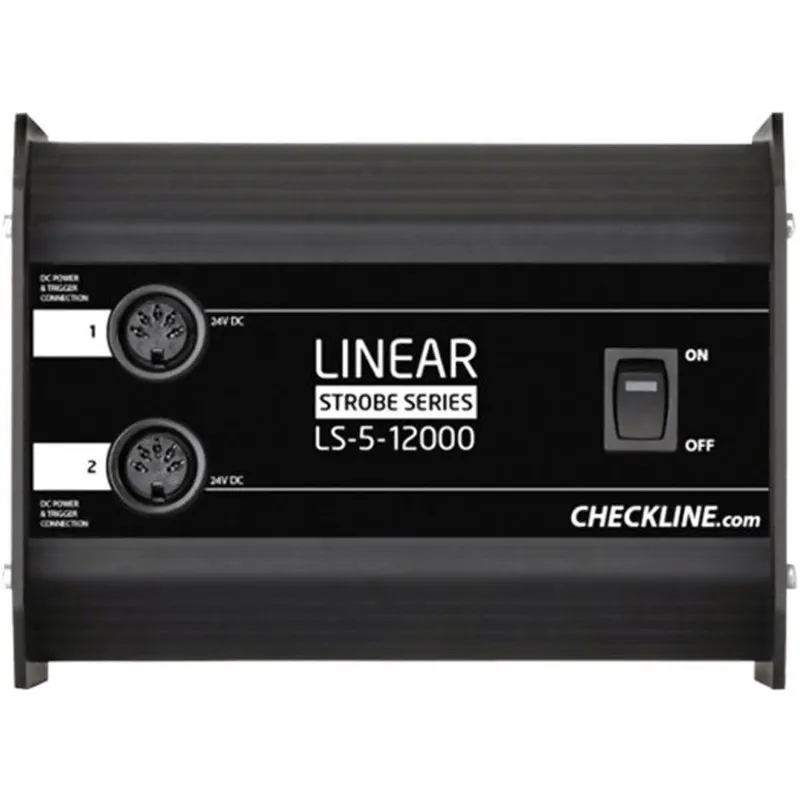

Checkline LS-5-12000 Inspection Stroboscope 5 Inch With LS-DIN Connector

Name: Checkline LS-5-12000 Inspection Stroboscope 5 Inch With LS-DIN Connector
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Checkline LS-5-12000 Inspection Stroboscope 5 Inch With LS-DIN Connector

0 reviews • Write a review

from

Rp.16,124,8390

Brand: Checkline
Part Number: LS-5-12000
Availability: 4 - 6 WEEKS
Last Updated: 10 Jan 2025

Checkline

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Additel , Digital , Pressure , Calibrators

Description

Checkline LS-5-12000 Inspection Stroboscope 5 Inch With LS-DIN Connector - Requires 24V Power Source (Not Included) A6-3000 / RT 3000 XENON. The Checkline LS-5-12000 Linear Strobe is designed for fixed mounting on all machinery that utilize a strobe for visual inspection including, rewinders, slitters and similar process equipment in the label printing and process market as well as many others markets including vibration analyzers, balancers, metal producing equipment and much more. The LS-5's flash rate can be externally triggered by an external sensor/controller on the process machine or the LS-5-RCU Remote Controller can be optionally specified for this purpose. Refer to separate webpage on the LS-5-RCU. The LS-5 produce a bright, sharp image under observation when the flash rate is synchronized with the "repeat rate" of the web material. The strobe operates using 24V DC (15 - 28V DC) using power already available on the machine or by using the our worldwide AC-DC power adapter available as an option. The brightness, sharpness and uniform light output provided by the LS-5 is unmatched in the market based on it compact size and low cost. It is especially well-suited for use on narrow web equipment up to 16 inches in width (400 mm width) and even wider. Two or more units can be used together in a Master/Slave arrangement when wider web widths must be covered.
