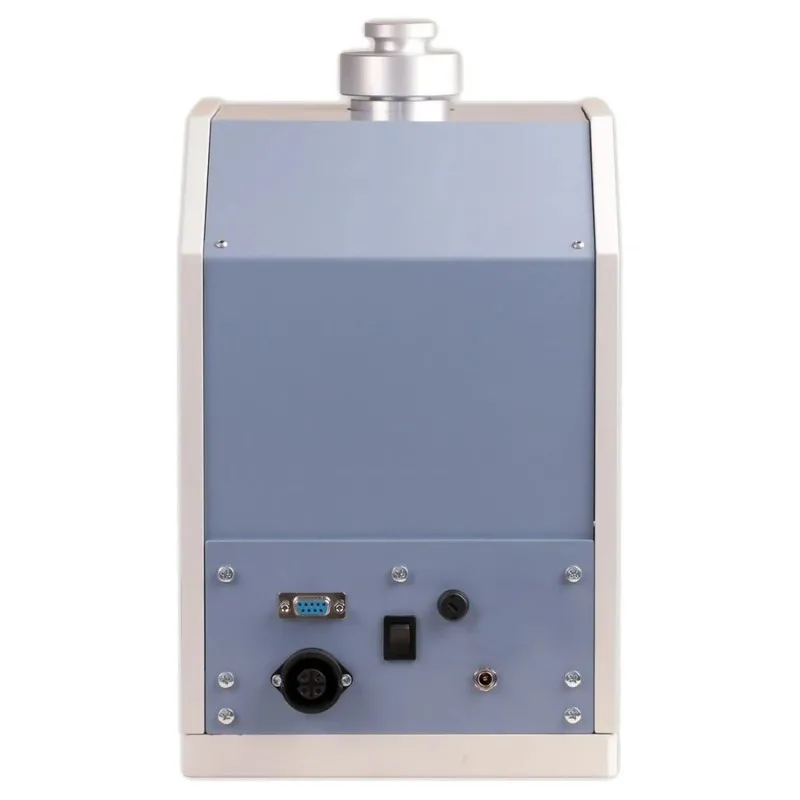

The D-2005 Motorized Precision Material Thickness Gauge has a stable and rigid base frame with an encapsulated, separate measuring block. And is a top choice if you appreciate high precision (up to 0.001 mm), easy operation, automatic processing and objective, reproducible measurement results. The device can be adapted to the materials to be measured according to your requirements. Thus, the calliper surfaces, the calliper materials and the measurement pressures fit in exactly with the guidelines of ISO, EN, DIN or also with your own test regulations. Common Standards: For textiles and non-woven textiles according to DIN EN ISO 5084 (measuring face 20 cm²/pressure 0.1 kPa and 1 kPa); For fleece according to DIN EN ISO 9073-2 (measuring face 25 cm²/pressure 0.1 kPa and 0.5 kPa); For geomaterials according to DIN EN ISO 964-1 (measuring face 25 cm²/pressure 2 kPa and 20 kPa, not 200 kPa). The D-2005 device is also available with different measurement ranges: Ranges 0 – 10 mm, 0 – 25 mm and 0 – 50 mm (or with the equivalents in inch, switchable). With this instrument the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber, plastic films etc. This alternative to the D-2010 does not have an illuminated, menu controlled touch-screen with its statistics functions, instead it is equipped with a dial gauge with seven-segment display and individual keys. Of course, there is a data output for the digital processing of the measurement results. The model D-2005 is also available with special equipment for calliper dwell time gauging range preselection.
