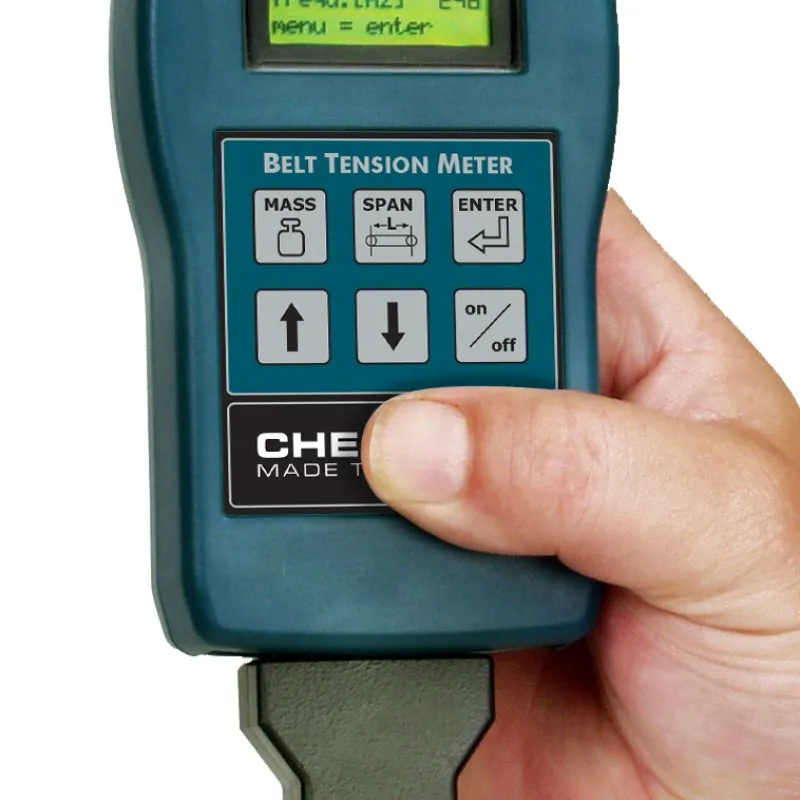

Checkline BTM-400Plus Digital Belt Tension Meter, Belt Frequency Meter, Sonic Tension Tester, Range 3 - 800 H

Name: Checkline BTM-400Plus Digital Belt Tension Meter, Belt Frequency Meter, Sonic Tension Tester, Range 3 - 800 H
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Checkline BTM-400Plus Digital Belt Tension Meter, Belt Frequency Meter, Sonic Tension Tester, Range 3 - 800 H

0 reviews • Write a review

from

Rp.28,024,533

Brand: Checkline
Part Number: BTM-400PLUS
Availability: 4 - 6 WEEKS
Last Updated: 08 Jan 2025

Checkline

Qty

Add to Cart

Add to Wish List Compare this Product

Description

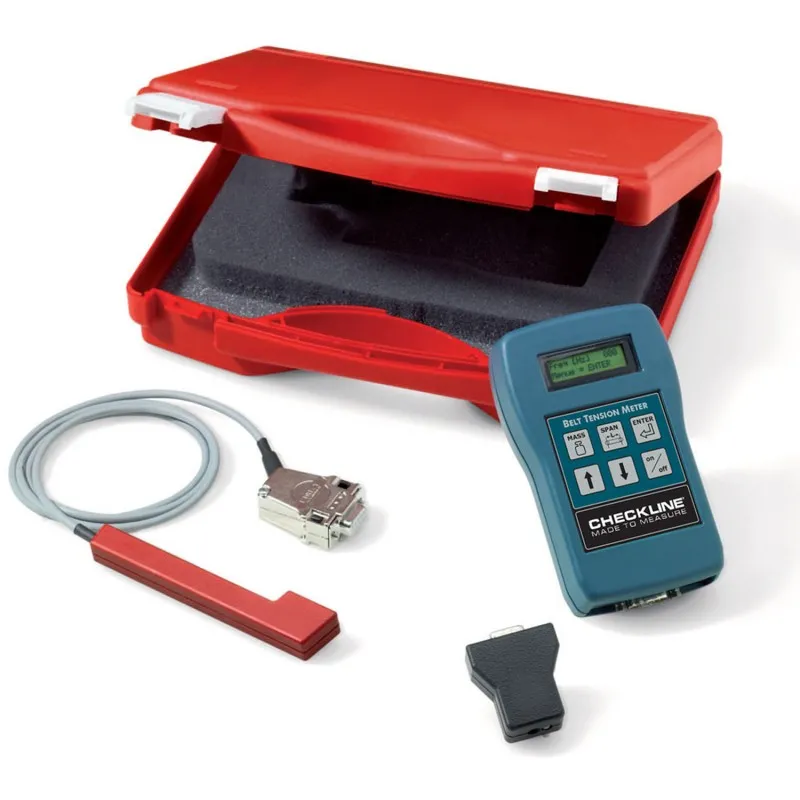

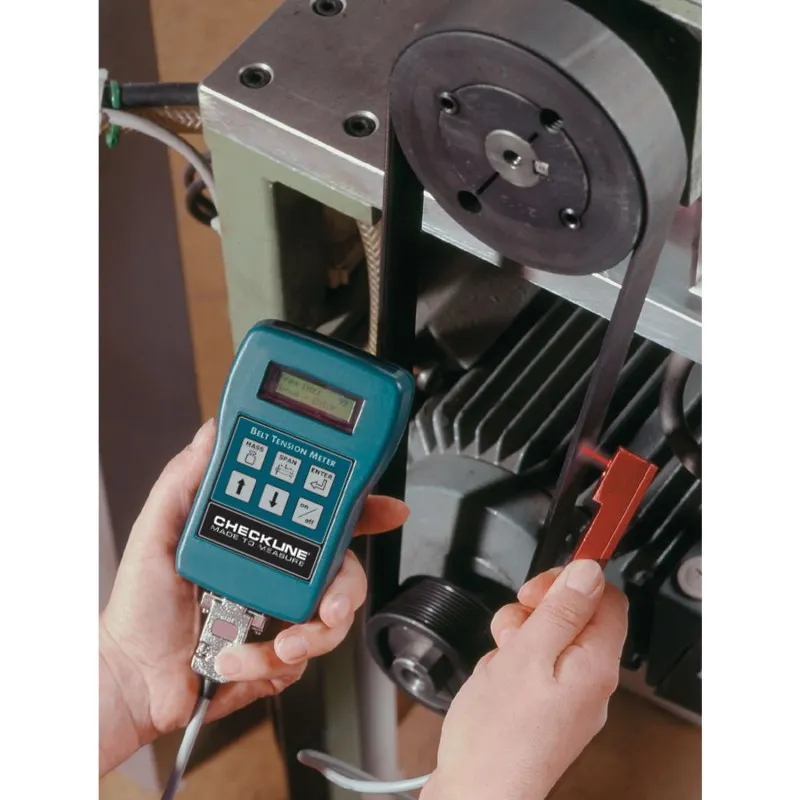

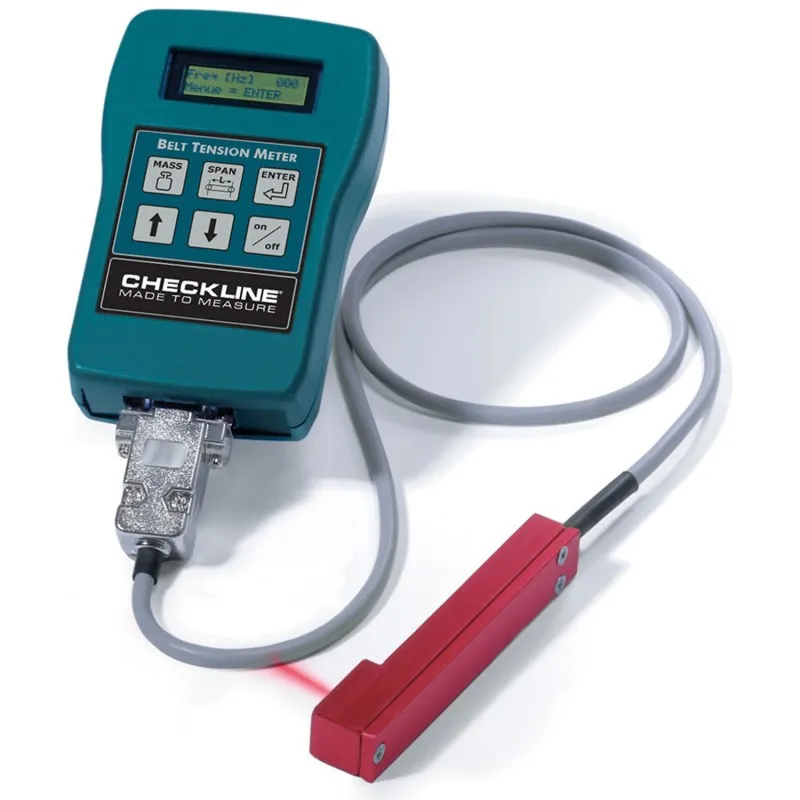

The Checkline BTM-400PLUS Belt Tension Meter, Sonic Tension Meter or Belt Frequency Meter also called a Sonic Tension Meter Includes two (2) separate Sensors – a plug-in type for one-handed operation and a cable-connected type for measuring belts with limited access space. The Checkline BTM-400PLUS Belt Tension Meter or Sonic Tension Meter accurately measures the static tension of flat, V and ribbed belts of rubber, leather, fabric and composite materials by measuring the natural frequency (Hz) of a segment of the belt that has been tapped and then converting it into tension units of newtons (N) or pounds force (lbf). The instrument uses a pulsed ruby red light source to measure the natural frequency of the vibrating belt. Unlike competitive models, the BTM-400PLUS is NOT affected by ambient noise, providing quick reliable results in all production and field applications.
