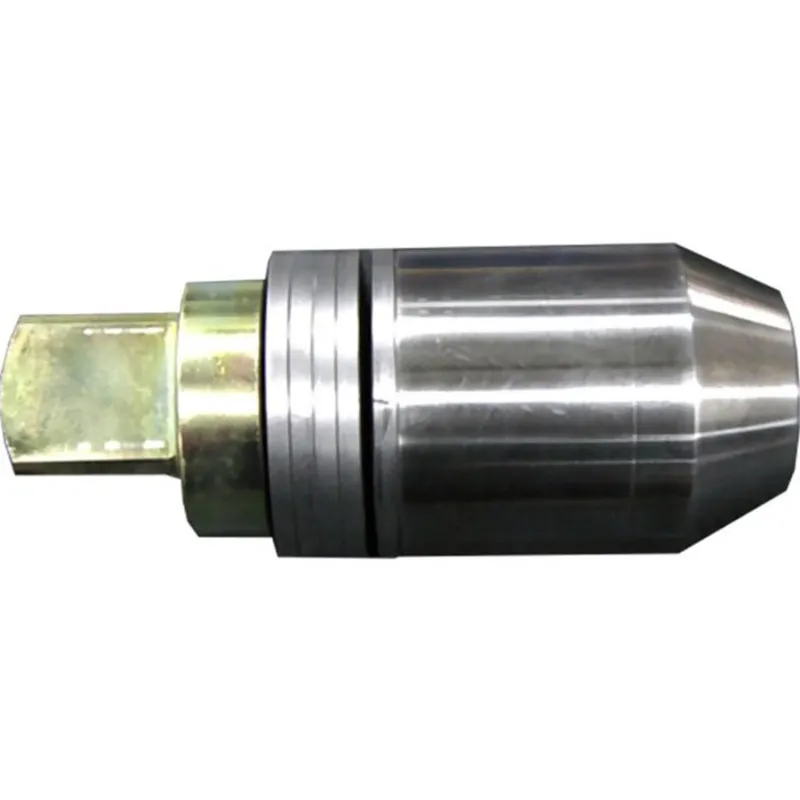

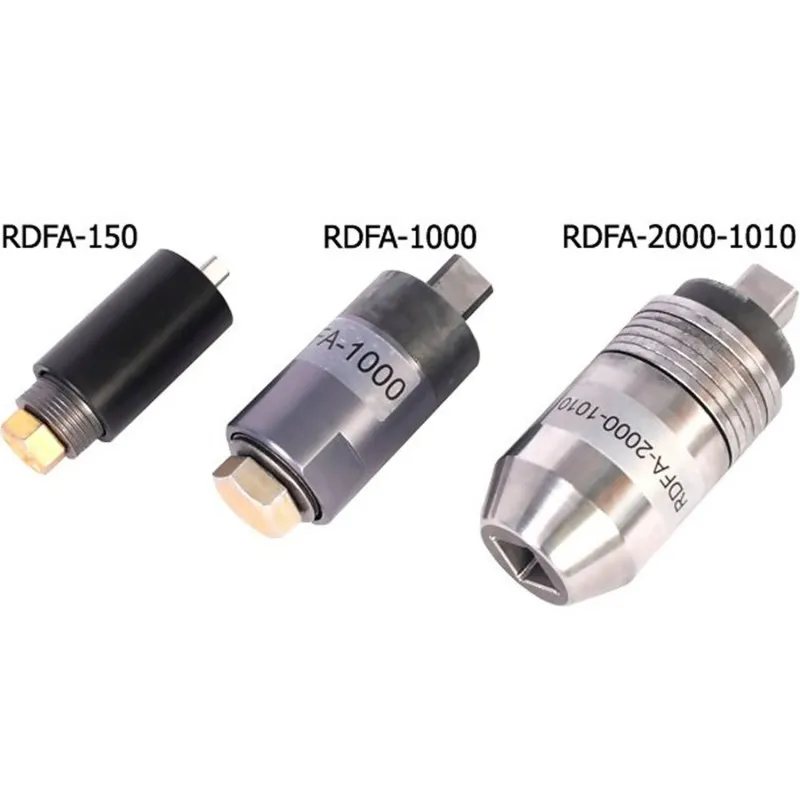

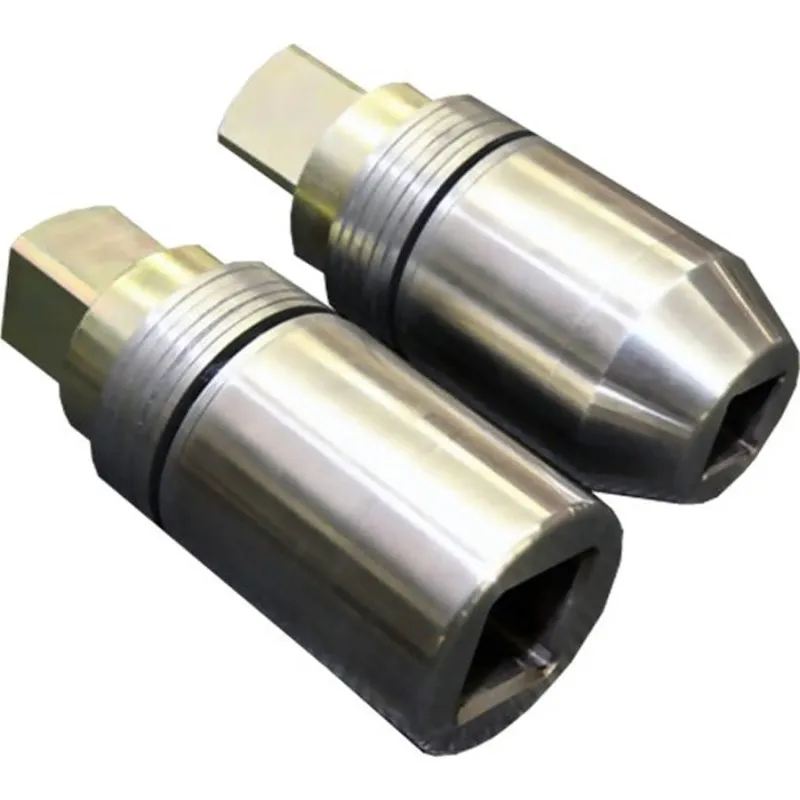

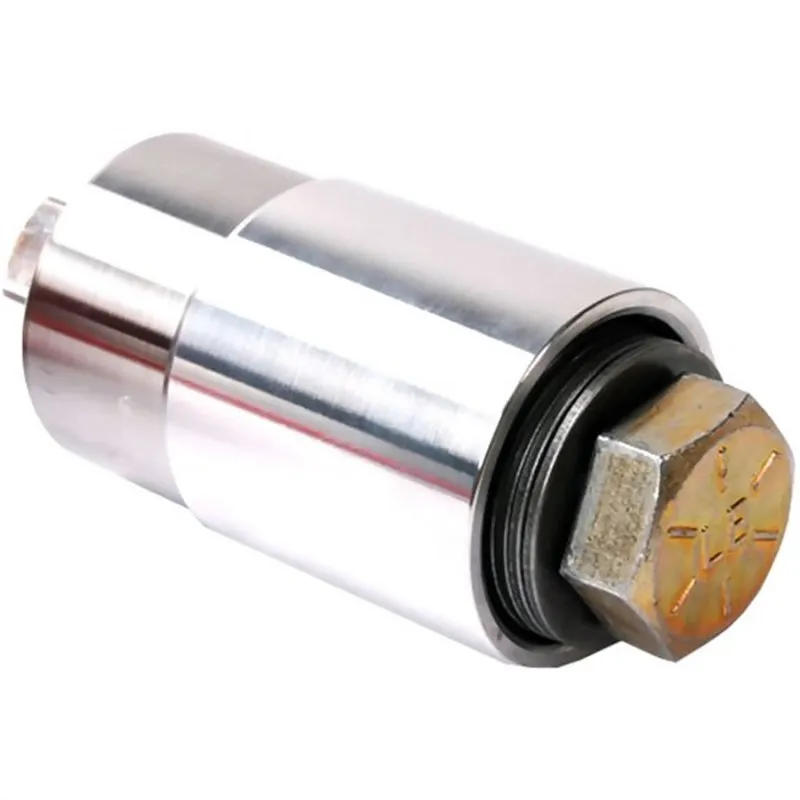

Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)

Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)
Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)
Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)
Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)
Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)
Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)
Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)
Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)
Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)
Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)
Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)
Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)
Checkline AWS RDF Rundown Fixture - Joint Simulators For Torque Testers (25 Models in this Product Family)
0 reviews • Write a review
from
Rp.9,237,0970
Ex Tax: Rp.9,237,0970
  • Brand: Checkline
  • Part Number: RD
  • Availability: 4 - 6 WEEKS
  • Last Updated: 02 Feb 2025
Checkline Checkline
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Additel , Digital , Pressure , Calibrators

AWS RDF Rundown Fixture - Joint Simulators for Torque Testers. Required for accurate torque measurement for power-driven torque controlled tools (electric, hydraulic or pneumatic). AWS RDF Joint Simulators (also referred to as Rundown Fixtures or Adapters) are required for accurate torque measurement for power-driven torque controlled tools (electric, hydraulic or pneumatic). They are not necessary or useful when measuring torque on manually-operated torque tools (screw-drivers, wrenches, etc.). The AWS RDF simulate the conditions found when using the tool in real-world conditions, allowing the speed of the power tool motor to ramp-up to normal operating speeds resulting in a more accurate and repeatable measurement of the torque. The AWS RDF are typically fabricated from machined steel with the appropriate drive size as needed. Internally it is comprised of a series of Belleville washers, designed to compress as the bolt tightens. By varying the arrangement of these washers, various joint rates can be simulated soft, medium and hard. Unless otherwise, specified, Joint Simulators are configured to simulate a medium joint. The joint rates can be adjusted by the user by changing the orientation of the Belleville washers upside down. Special Run-Downs: HD Encapsulated Model: The HE series rundown fixture is comprised of a shroud, threaded body, bolt and encapsulated washers. B Encapsulated Model: The B series rundown fixture is comprised of a shroud, encapsulated threaded body, bolt, nut and washers. All components are contained. Please contact us for more info on our custom run-downs.

  Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
Checkline AWS RDF [RDIOA-50] 50 Oz-in / 35 N-cm Rundown Fixture, 1/4" Drive
RDIOA-50
Rp.9,237,0970
4 - 6 WEEKS
Checkline AWS RDF [RDIOA-100] 100 Oz-in / 70 N-cm Rundown Fixture, 1/4" Drive
RDIOA-100
Rp.9,237,0970
4 - 6 WEEKS
Checkline AWS RDF [RDIOA-200] 200 Oz-in / 140 N-cm Rundown Fixture, 1/4" Drive
RDIOA-200
Rp.9,237,0970
4 - 6 WEEKS
Checkline AWS RDF [RDIA-10] 10 Lb-in / 113 N-cm Rundown Fixture, 1/4" Drive
RDIA-10
Rp.9,237,0970
4 - 6 WEEKS
Checkline AWS RDF [RDIA-25] 25 Lb-in / 282 N-cm Rundown Fixture, 1/4" Drive
RDIA-25
Rp.9,237,0970
4 - 6 WEEKS
Checkline AWS RDF [RDIA-50] 50 Lb-in / 5.6 Nm Rundown Fixture, 1/4" Drive
RDIA-50
Rp.9,237,0970
4 - 6 WEEKS
Checkline AWS RDF [RDIA-100] 100 Lb-in / 11 Nm Rundown Fixture, 1/4" Drive
RDIA-100
Rp.9,237,0970
4 - 6 WEEKS
Checkline AWS RDF [RDIA-150] 150 Lb-in / 17 Nm Rundown Fixture, 1/4" Drive
RDIOA-200_2
Rp.9,237,0970
4 - 6 WEEKS
Checkline AWS RDF [RDIA-250] 250 Lb-in / 28 Nm Rundown Fixture, 3/8-16 Drive
RDIA-250
Rp.9,237,0970
4 - 6 WEEKS
Checkline AWS RDF [RDIA-500] 500 Lb-in / 56 Nm Rundown Fixture, 3/8" Drive
RDIA-500
Rp.9,237,0970
4 - 6 WEEKS
Checkline AWS RDF [RDIA-750] 750 Lb-in / 85 Nm Rundown Fixture, 3/8" Drive
RDIA-750
Rp.9,237,0970
4 - 6 WEEKS
Checkline AWS RDF [RDIA-1000] 1000 Lb-in / 113 Nm Rundown Fixture, 3/8" Drive
RDIA-1000
Rp.9,237,0970
4 - 6 WEEKS
Checkline AWS RDF [RDFAHE-50] 50 Lb-ft / 68 Nm Washer Encapsulated Rundown Fixture, 1/2" Drive
RDFAHE-50
Rp.20,119,1940
4 - 6 WEEKS
Checkline AWS RDF [RDFAHE-100] 100 Lb-ft / 135 Nm Washer Encapsulated Rundown Fixture, 1/2" Drive
RDFAHE-100
Rp.20,119,1940
4 - 6 WEEKS
Checkline AWS RDF [RDFAHE-150] 150 Lb-ft / 200 Nm Washer Encapsulated Rundown Fixture, 1/2" Drive
RDFAHE-150
Rp.20,119,1940
4 - 6 WEEKS
Checkline AWS RDF [RDFAHE-250] 250 Lb-ft / 340 Nm Washer Encapsulated Rundown Fixture, 1/2" Drive
RDFAHE-250
Rp.20,119,1940
4 - 6 WEEKS
Checkline AWS RDF [RDFAHE-500] 500 Lb-ft / 677 Nm Washer Encapsulated Rundown Fixture, 3/4" Drive
RDFAHE-500
Rp.24,920,0000
4 - 6 WEEKS
Checkline AWS RDF [RDFAHE-600] 600 Lb-ft / 813 Nm Washer Encapsulated Rundown Fixture, 3/4" Drive
RDFAHE-600
Rp.24,920,0000
4 - 6 WEEKS
Checkline AWS RDF [RDFAHE-750] 750 Lb-ft / 1016 Nm Washer Encapsulated Rundown Fixture, 3/4" Drive
RDFAHE-750
Rp.24,920,0000
4 - 6 WEEKS
Checkline AWS RDF [RDFAHE-1000] 1000 Lb-ft / 1355 Nm Washer Encapsulated Rundown Fixture, 1" Drive
RDFAHE-1000
Rp.26,072,2580
4 - 6 WEEKS
Checkline AWS RDF [RDFAHE-2000] 2000 Lb-ft / 2711 Nm Washer Encapsulated Rundown Fixture, 1.5" Male Sq Drive, Specify Female Sq, 3/4, 1 or 1.5"
RDFAHE-2000
Rp.44,795,6450
4 - 6 WEEKS
Checkline AWS RDF [RDFAHE-2500] 2500 Lb-ft / 3390 Nm Washer Encapsulated Rundown Fixture, 1.5" Male Sq Drive, Specify Female Sq, 3/4, 1 or 1.5"
RDFAHE-2500
Rp.44,795,6450
4 - 6 WEEKS
Checkline AWS RDF [RDFAHE-3000] 3000 Lb-ft / 4067 Nm Washer Encapsulated Rundown Fixture, 1.5" Male Sq Drive, Specify Female Sq, 3/4, 1 or 1.5"
RDFAHE-3000
Rp.47,356,1290
4 - 6 WEEKS
Checkline AWS RDF [RDFAHE-5000] 5000 Lb-ft / 6780 Nm Washer Encapsulated Rundown Fixture, 1.5" Male Sq Drive, 1.5" Female Sq*DISCONTINUED*
RDFAHE-5000
Rp.53,885,3230
DISCONTINUED
