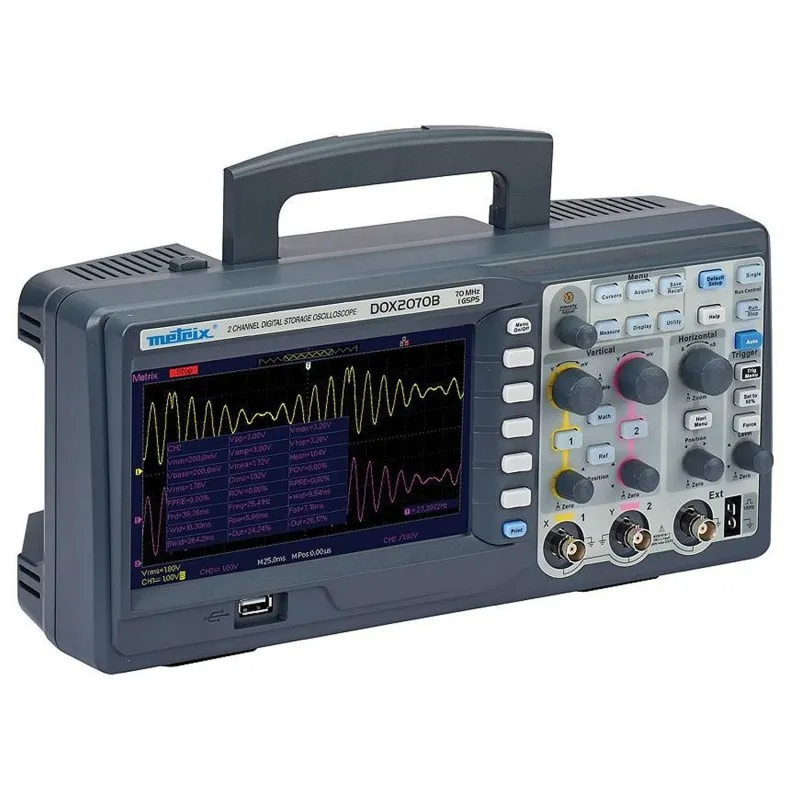

Chauvin Arnoux Metrix® [DOX 2070B] 70 MHz, 2-Channel Benchtop Digital Oscilloscope

Name: Chauvin Arnoux Metrix® [DOX 2070B] 70 MHz, 2-Channel Benchtop Digital Oscilloscope
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Chauvin Arnoux Metrix® [DOX 2070B] 70 MHz, 2-Channel Benchtop Digital Oscilloscope

0 reviews • Write a review

from

Rp.27,381,2900

Brand: Chauvin Arnoux
Part Number: DOX-2070B
Availability: 2 - 4 WEEKS
Last Updated: 21 Nov 2024

Chauvin Arnoux

Qty

Add to Cart

Add to Wish List Compare this Product

Description

Chauvin Arnoux Metrix® [DOX 2070B] 70 MHz, 2-Channel Benchtop Digital Oscilloscope. The METRIX DOX 2000B series oscilloscopes are very easy to use and are housed in a space-saving, shallow-depth enclosure designed especially for laboratory workstations. The large screen includes 16 divisions in the X-axis in full screen display and is individually configurable: normal or luminescent display, YT or XY display, adjustment of colors, screen grid, brightness, contrast, etc. Rotary knobs and illuminated direct function keys on the front panel facilitate operation. The handle makes the oscilloscope easy to transport and the non-slip feet ensure stable placement on the workbench. High performance and a wide range of acquisition and analysis functions: Signal acquisition and analysis is performed at 3 levels, in real time or time equivalent. The acquisition memory has a depth of 32K points and additional memory can be added via a USB pen for optimal analysis. Sensitivity ranges vertically in 12 measurement ranges from 2 mV/div to 10 V/div and horizontally from 5 ns/div to 50 s/div. Advanced functions are available: simple MATH functions + / - / x / ÷ and an FFT function "in real time" with simultaneous display of the curves. Practical PASS/FAIL function: OK/NOK test based on a limiting envelope. The supplied EASYSCOPE software allows the operation of the instrument, tests and the transfer of curve files and screen copies.
