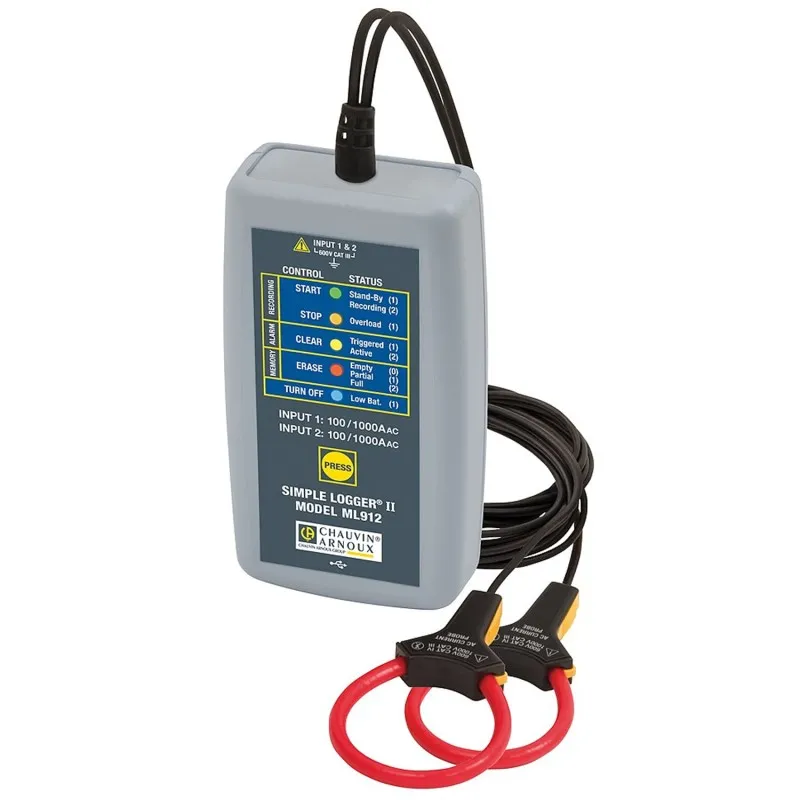

Chauvin Arnoux Simple Logger II ML912 [P01157130] 2-channel Current Logger with Flexible Sensors*DISCONTINUED*

Chauvin Arnoux Simple Logger II ML912 [P01157130] 2-channel Current Logger with Flexible Sensors*DISCONTINUED*
Chauvin Arnoux Simple Logger II ML912 [P01157130] 2-channel Current Logger with Flexible Sensors*DISCONTINUED*
0 reviews • Write a review
from
Rp.00
  • Brand: Chauvin Arnoux
  • Part Number: P01157130
  • Availability: DISCONTINUED
  • Last Updated: 02 Apr 2024
Chauvin Arnoux Chauvin Arnoux
Add to Cart
Add to Wish List Compare this Product

The Simple Logger® II Model ML912 is a twochannel AC current recording device powered by two alkaline batteries. It incorporates two user-selectable measurement ranges of 0 to 100 Aac and 0 to 1000 Aac.
Line tracking is performed at a rate of 64 samples per line cycle. Frequency tracking is performed over a range of ±2 Hz around the nominal line frequency (50 or 60 Hz). Harmonic measurements are calculated from the 64 samples (available in DataView®). The Simple Logger® II stores TRMS values at user-programmable rates of up to eight times per second. TRMS calculations are performed on a single line cycle. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software. Analogue information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information. An optically-isolated USB port allows data to be transferred from the instrument’s internal storage to the computer for analysis.
