Chauvin Arnoux E25 & E27 AC/DC Current Clamps

Name: Chauvin Arnoux E25 & E27 AC/DC Current Clamps
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Chauvin Arnoux E25 & E27 AC/DC Current Clamps

0 reviews • Write a review

from

Rp.16,616,9350

Ex Tax: Rp.16,616,9350

Brand: Chauvin Arnoux
Part Number: P0112002
Availability: 2 - 4 WEEKS
Last Updated: 22 Nov 2024

Chauvin Arnoux

Qty

Add to Cart

Add to Wish List Compare this Product

Configure Options

Description

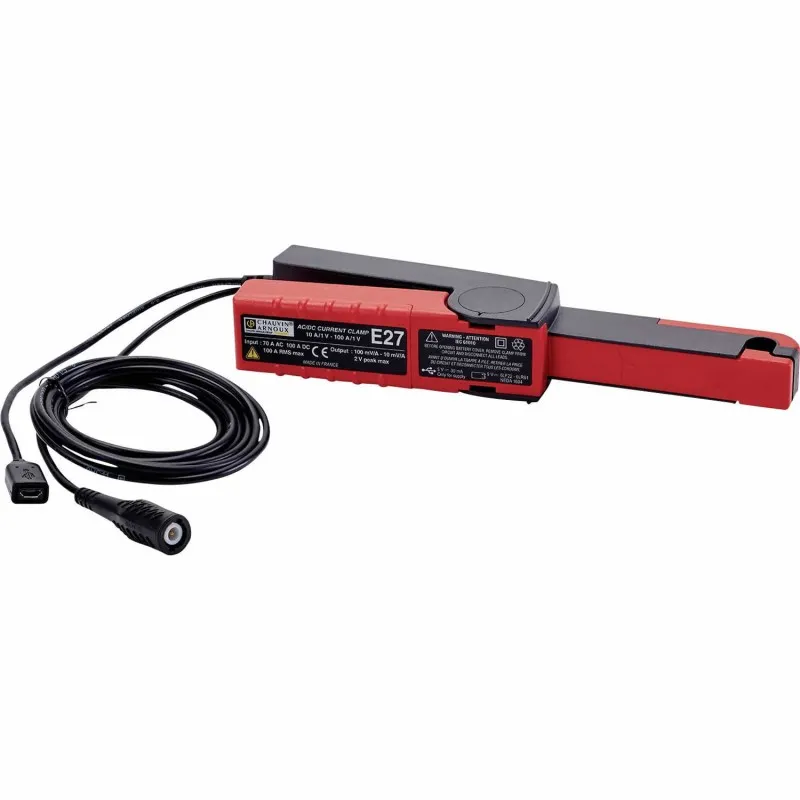

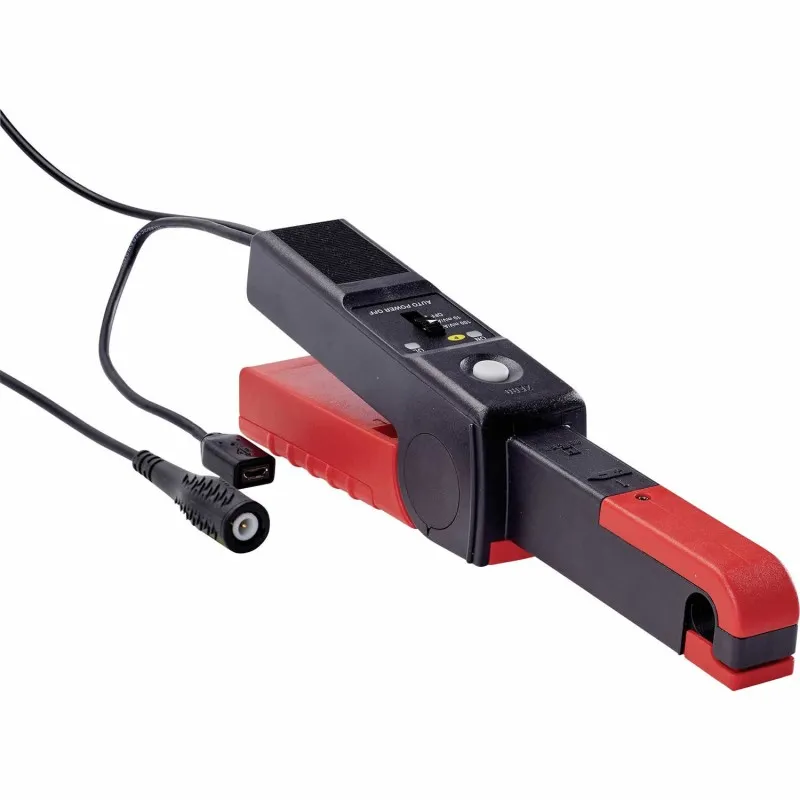

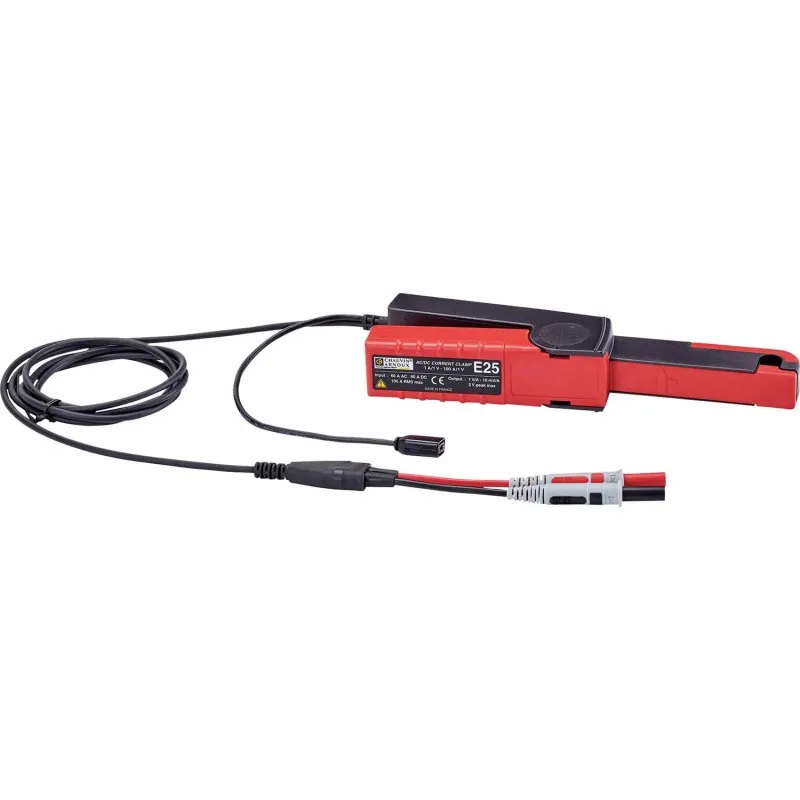

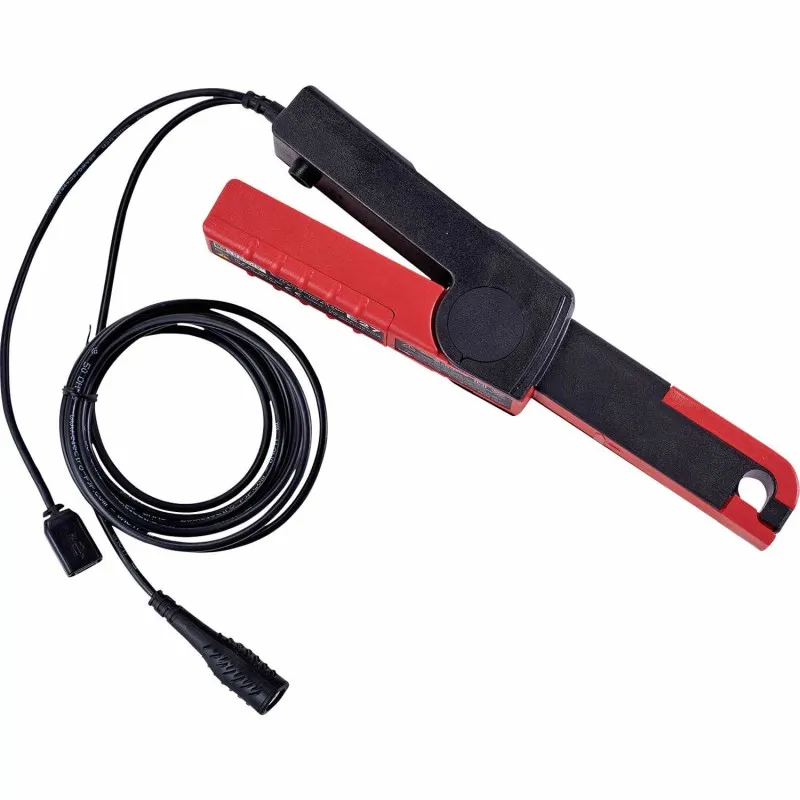

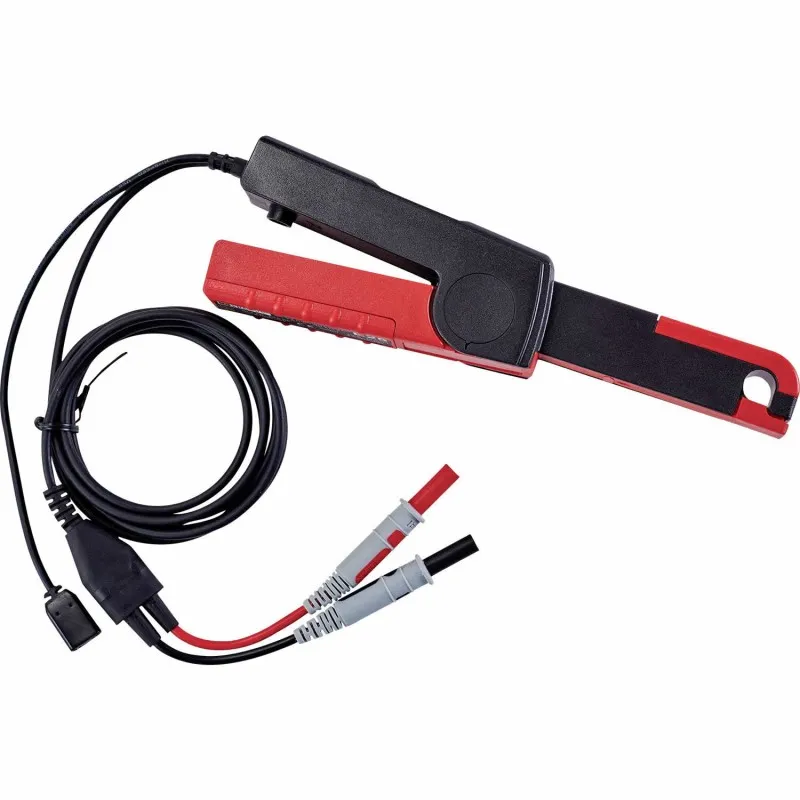

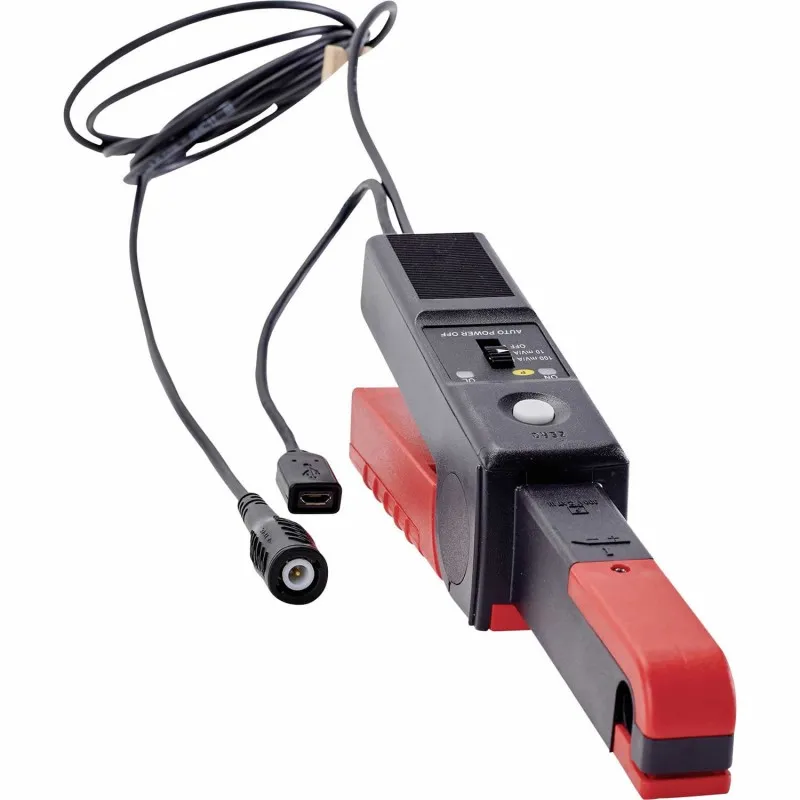

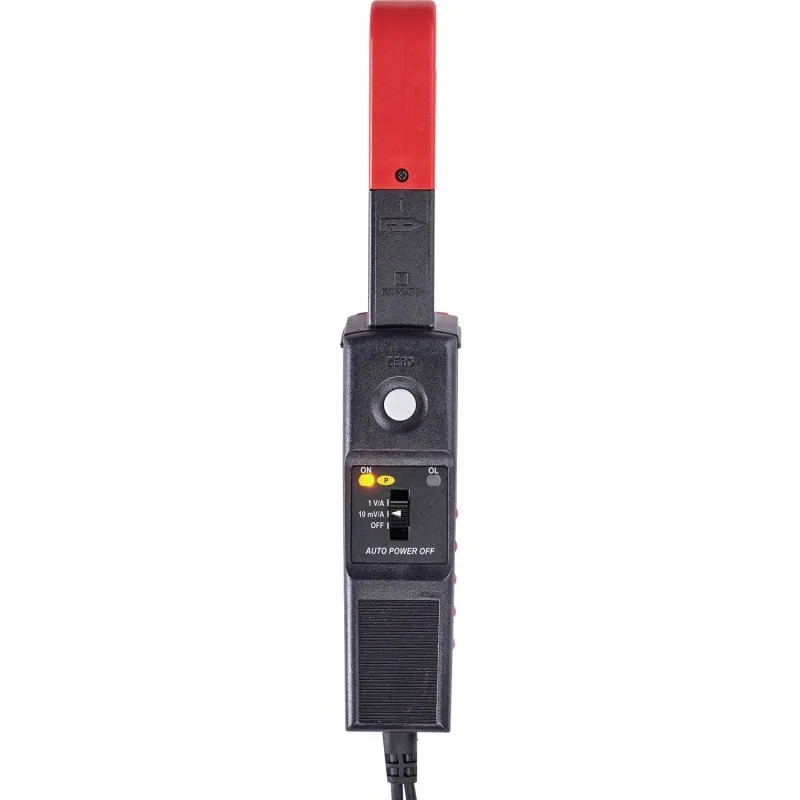

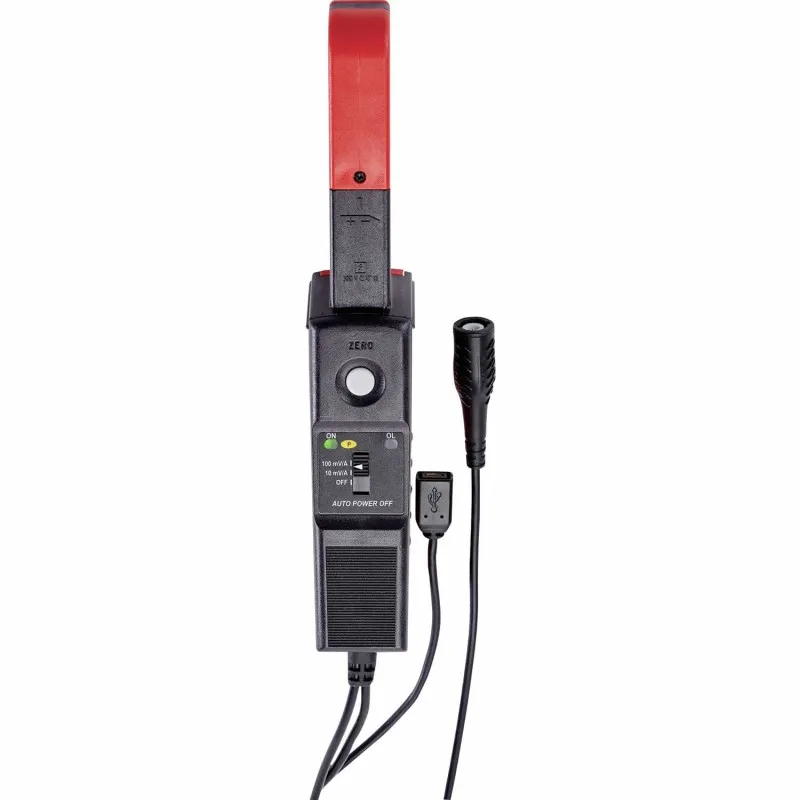

The current clamps in the E Series can be used to measure alternating and direct currents by means of Hall-effect technology. Their unique long, narrow shape facilitates measurement in confined spaces where access is difficult or when there are a large number of electrical cables and conductors present. The clamps in the E Series are all equipped with an automatic DC Zero system and a deactivatable standby mode. They can be powered by a battery or a standard 5 VDC power pack (option) via their Micro USB connector. They offer two different sensitivities and output an alternating and direct voltage signal (mVac+dc) which is a faithful image, in terms of the waveform and amplitude, of the current measured. The E25 clamp, equipped with a cable terminated by 2 x Ø4 mm insulated male banana plugs, is the ideal complement for any multimeter or other measuring instrument. The E27 clamp is an insulated current sensor whose wide bandwidth is useful for measuring and viewing complex AC+DC signals on an oscilloscope.
