Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel

Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
0 reviews • Write a review
from
Rp.45,239,302
Ex Tax: Rp.45,239,302
  • Brand: Chauvin Arnoux
  • Part Number: P01192200
  • Availability: 4 - 6 WEEKS
  • Last Updated: 04 Dec 2024
Chauvin Arnoux Chauvin Arnoux
Add to Cart
Add to Wish List Compare this Product
Tags: BK Precision , 2120C , Dual Trace , Analog , Oscilloscope

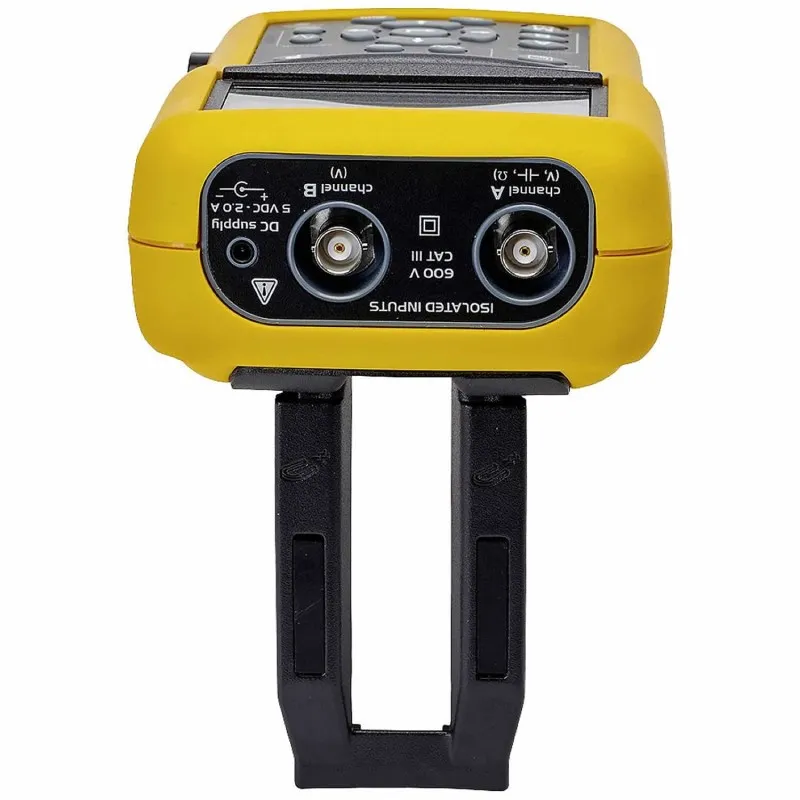

Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel. The shock-proof HANDSCOPE CA 922 fits excellently in the hand. The large, LED-lit TFT color screen of the user-friendly device offers a perfect data display.The operation is simplified with easy-to-understand function selection icons and interactive, anytime-ready help in multiple languages. The included carry case and magnetic folding support allow the device to be attached to metal switch cabinets allow hands-free use of the hand scop.The HANDSCOPE combines three devices in one through the 2 isolated channels:- Oscilloscope up to 20 MHz 2 completely isolated channels, 600 V cat III – Bandwidth: 20 MHz – 2 GS/s - 5 mV to 200 V/div and 25 ns to 200 s/div- Multimeter with 8,000 point display and power measurement- Harmonic analyzer up to rank 31 (with a fundamental of 40 to 450 Hz).As a compact device, which can also be held in just one hand, the handscope is perfectly suitable for field use on electrical systems and for general maintenance work. Thanks to the isolated channels, the user can make his measurements without any special precautions in all safety.The 2 MB storage capacity enables a storage of measured data and in the multimeter mode the graphic recording of up to 2,700 measurements (over 5 minutes up to 1 month).The data transfer takes place via optical isolated USB with the SCPI protocol. Thus, the device configuration is possible remotely with the software SX-METRO.

  Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
Chauvin Arnoux CA 922 [P01192200] 2-Ch, 20 MHz Portable Oscilloscope with Isolated Channel
P01192200
Rp.45,239,302
4 - 6 WEEKS

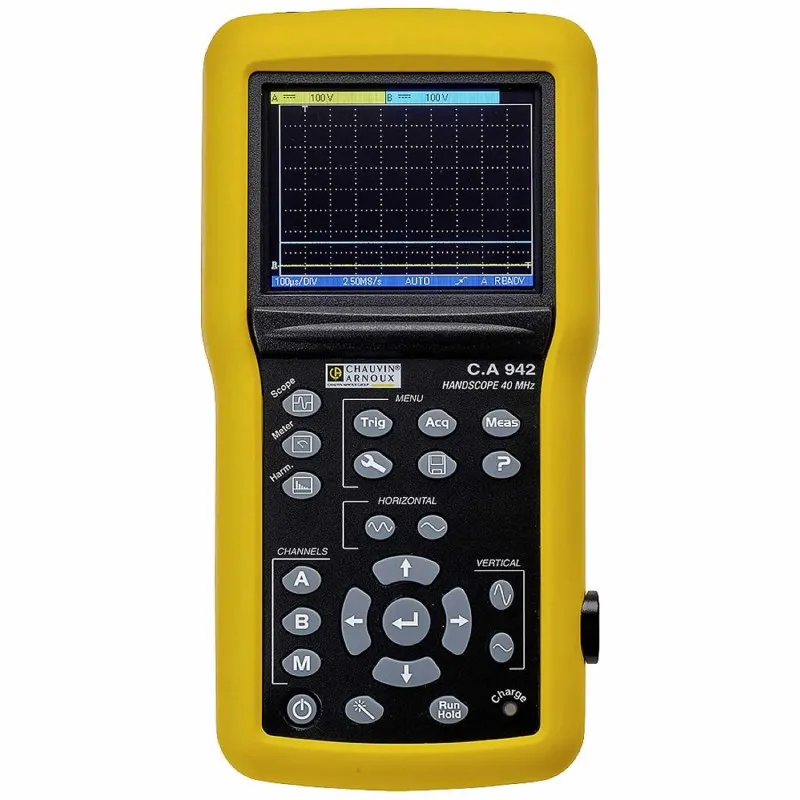

Chauvin Arnoux CA 942 [P01194200] 2-Ch, 40 MHz Portable Oscilloscope with Isolated Channel
P01194200
Rp.57,003,182
4 - 6 WEEKS
