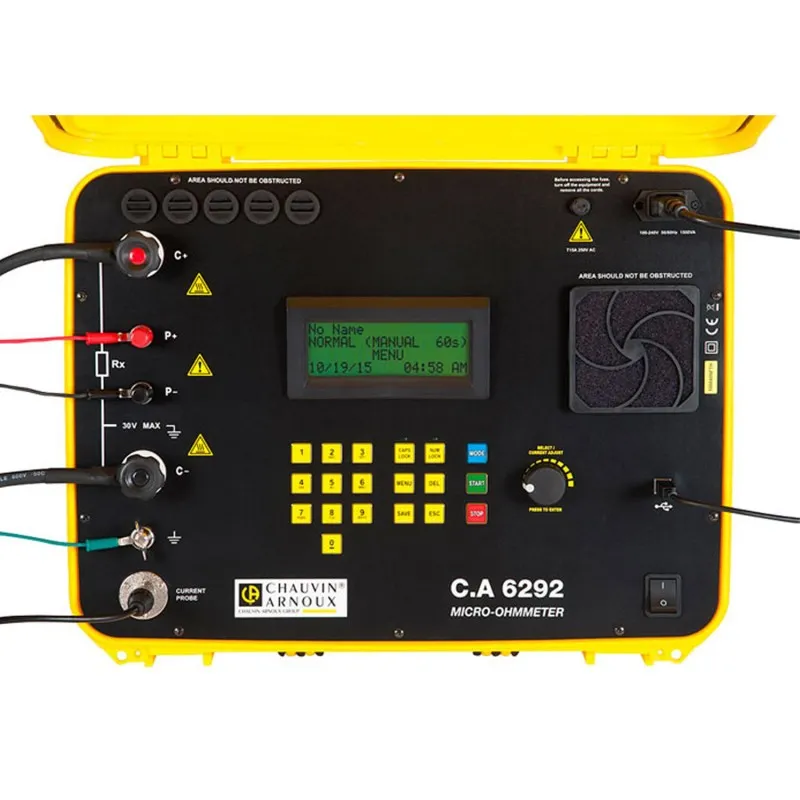

Name: Chauvin Arnoux CA 6292 [P01143300] 200A Digital Micro Ohmmeter
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Chauvin Arnoux CA 6292 [P01143300] 200A Digital Micro Ohmmeter

0 reviews • Write a review

from

Rp.269,638,2260

Ex Tax: Rp.269,638,2260

Brand: Chauvin Arnoux
Part Number: P01143300
Availability: 4 - 6 WEEKS
Last Updated: 03 Dec 2024

Chauvin Arnoux

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Additel , Digital , Pressure , Calibrators

Description

Chauvin Arnoux CA 6292 [P01143300] 200A Digital Micro Ohmmeter The Chauvin Arnoux CA6292 200A Digital Micro Ohmmeter can safely test resistance up to 1Ω with a maximum resolution of just 0.1µΩ thanks to a fully adjustable test current from 20A to 200A. Tests at up to 100A can have an unlimited duration for comprehensive testing. There are also automatic test currents of 50A, 100A, 150A and 200A for speedy testing. The micro ohmmeter can be used in a range of industries and has multiple applications across rail, maintenance, metallurgy and manufacturing. Measuring resistance with the Chauvin Arnoux CA6292 is very safe thanks to its ‘both sides grounded’ (BSG) testing method which has earths on both sides of the circuit or object under test (requires optional MR 6292 current clamp). This negates any inductive phenomena and the optional clamp can also measure current between 1 and 50A DC. Reliability is enhanced by the four-wire measurement method which produces accuracy of ±1%. Results are shown on the four-line, backlit display and up to 8,000 measurements can be stored in the Chauvin Arnoux CA6292’s internal memory. Measurement information can then be downloaded to a PC via the supplied USB cable. From there, Chauvin Arnoux DataView® software can be used for analysis and reporting. Operation is undertaken via a simple dial and push-button interface or through a PC. The Chauvin Arnoux CA6292 comes supplied with a full range of accessories and the manufacturer provides a 12-month warranty. The waterproof casing and an internal cooling system on the instrument make sure it is suitable for a wide range of challenging environments and further protect the user.
