Chauvin Arnoux CA 5292 [P01196802] 20A AC/DC, 1000V AC Handheld Digital Color Graphical Multimeter

Name: Chauvin Arnoux CA 5292 [P01196802] 20A AC/DC, 1000V AC Handheld Digital Color Graphical Multimeter
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Chauvin Arnoux CA 5292 [P01196802] 20A AC/DC, 1000V AC Handheld Digital Color Graphical Multimeter

from

Rp.27,320,0000

Ex Tax: Rp.27,320,0000

Brand: Chauvin Arnoux
Part Number: P01196802
Availability: 4 - 6 WEEKS
Last Updated: 02 Dec 2024

Chauvin Arnoux

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: BK Precision , 2120C , Dual Trace , Analog , Oscilloscope

Description

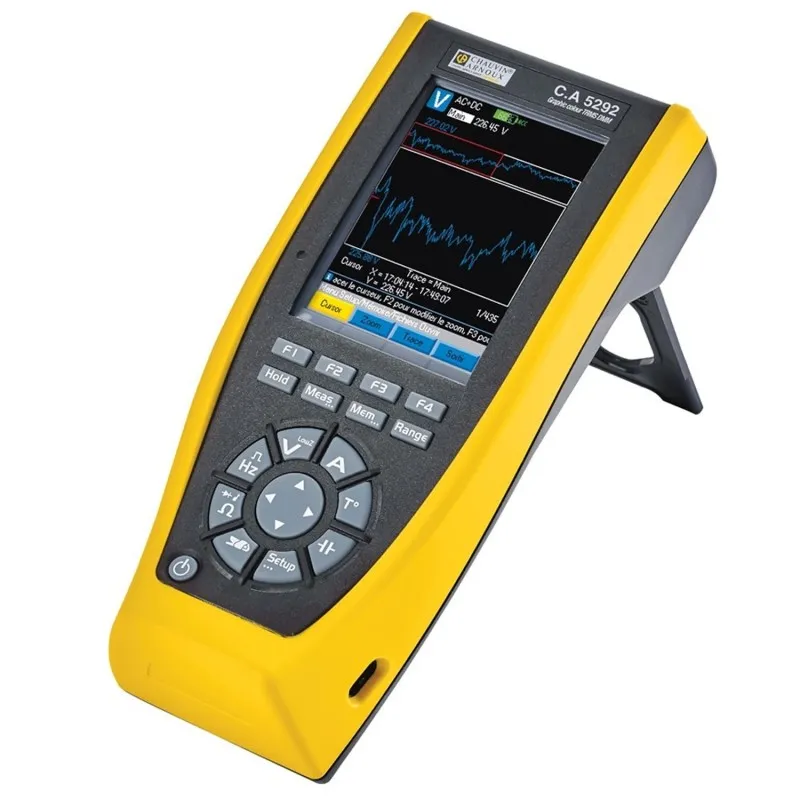

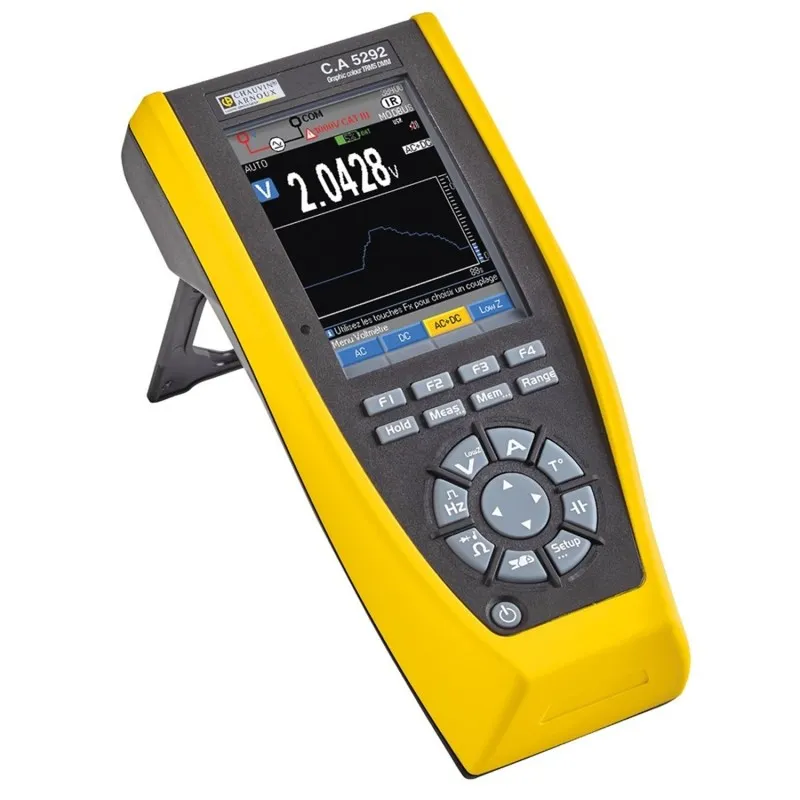

Chauvin Arnoux CA 5292 [P01196802] 20A AC/DC, 1000V AC Handheld Digital Color Graphical Multimeter. The Chauvin Arnoux CA5292 Digital Multimeter is a compact, rugged, watertight instrument suitable for measuring a variety of electrical parameters including AC/ DC voltage, AC/DC true-RMS current, frequency, resistance and continuity, capacitance, temperature, and diode. It is equipped with a variety of analytical tools such as date- and time-stamping, Min, Max, Avg and Peak monitoring, filtering, and duty cycle. Data is indicated on the multi-parameter, graphical display with a 320x240px colour matrix screen with a black background. Additionally, waveforms up to 600Hz are displayed, while trends are shown on the summary screen. The Chauvin Arnoux CA5292 Digital Multimeter offers a 0.03% accuracy (maximum) as well as a 100 kHz bandwidth. Up to ten sequences can be saved to the Chauvin Arnoux CA5292 Digital Multimeter’s internal memory as can 10 000 measurements. It includes zoom, trace, and cursor tools for evaluating recordings. Data can be downloaded to a PC/ laptop via a USB interface for evaluation using the Chauvin Arnoux SX-DMM Software. Models with Bluetooth can also wirelessly communicate readings to an Android smartphone/ tablet with the Chauvin Arnoux App installed. Finally, this ergonomic, IP67-rated, 1000V CAT III/ 600V CAT IV digital multimeter has a battery life of up to 100 hours. To maximise uptime, the Chauvin Arnoux CA5292 Digital Multimeter can be operated while charging. The Chauvin Arnoux CA5292 Digital Multimeter is a portable, practical, precise DMM.
