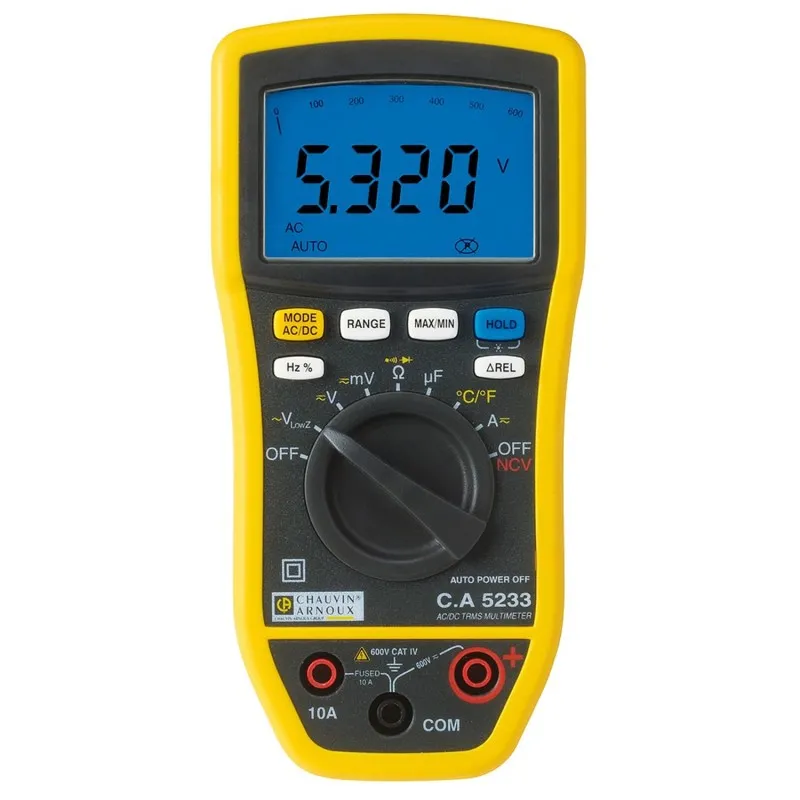

Chauvin Arnoux CA 5233 [P01196733] 10A AC / 10A DC, 600V AC True RMS Digital Multimeter with Type K Adaptor

Name: Chauvin Arnoux CA 5233 [P01196733] 10A AC / 10A DC, 600V AC True RMS Digital Multimeter with Type K Adaptor
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Chauvin Arnoux CA 5233 [P01196733] 10A AC / 10A DC, 600V AC True RMS Digital Multimeter with Type K Adaptor

from

Rp.10,511,322

Ex Tax: Rp.10,511,322

Brand: Chauvin Arnoux
Part Number: P01196733
Availability: 2 - 4 WEEKS
Last Updated: 03 Dec 2024

Chauvin Arnoux

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: BK Precision , 2120C , Dual Trace , Analog , Oscilloscope

Description

Chauvin Arnoux CA 5233 [P01196733] 10A AC / 10A DC, 600V AC True RMS Digital Multimeter with Type K Adaptor. The Chauvin Arnoux CA 5233 True RMS Digital Multimeter is a versatile instrument which offers measurement for AC/DC voltage (600V), AC/DC current (10A), resistance (60MΩ), frequency (3kHz), capacitance (1000µF) and temperature (-20˚C to 760˚C). It can also perform continuity tests, diode testing, and testing for duty ratio. LowZ AC voltage measurement helps negate problems related to disturbance voltage and True RMS means that it can be used on non-linear wave patterns. Several different ranges apply to each parameter and these can be set to self-select automatically or be selected by the user depending on his/her requirements. High resolution aids precision and basic accuracy is just 0.2% so the user can have confidence in readings from the Chauvin Arnoux CA5233. Furthermore, Max/Min recording and relative mode add extra clarity to the user’s picture of system performance. Readings for each of the many different measurement values are shown on the Chauvin Arnoux CA5233’s large, blue screen. It is very clear indeed, features data hold, and also has an analogue bar graph display alongside the large digital value. An audible buzzer sounds during continuity testing whilst the screen is also useful in non-contact voltage detection mode as it glows bright red if it senses voltage. Operation is carried out through the simple dial which feature two OFF positions for speed and simplicity. The Chauvin Arnoux CA 5233 has an articulated Multistand™ which allows it to sit vertically on a range of surfaces whilst its shock-proof casing contributes to an IP rating of IP54. It can withstand overloads up to 8000V and is safety rated as Cat III 600V and Cat IV 600V so it is very safe. Supplied accessories include a thermocouple, test leads, test probes and a battery, and the Chauvin Arnoux CA5233 constitutes an extremely clear, adaptable addition to any toolbox.
