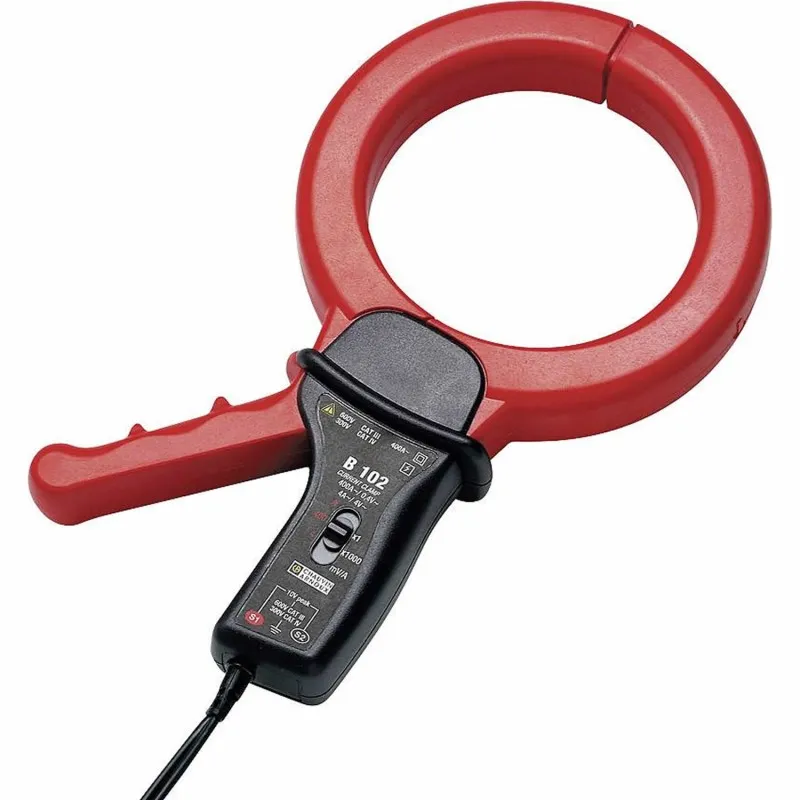

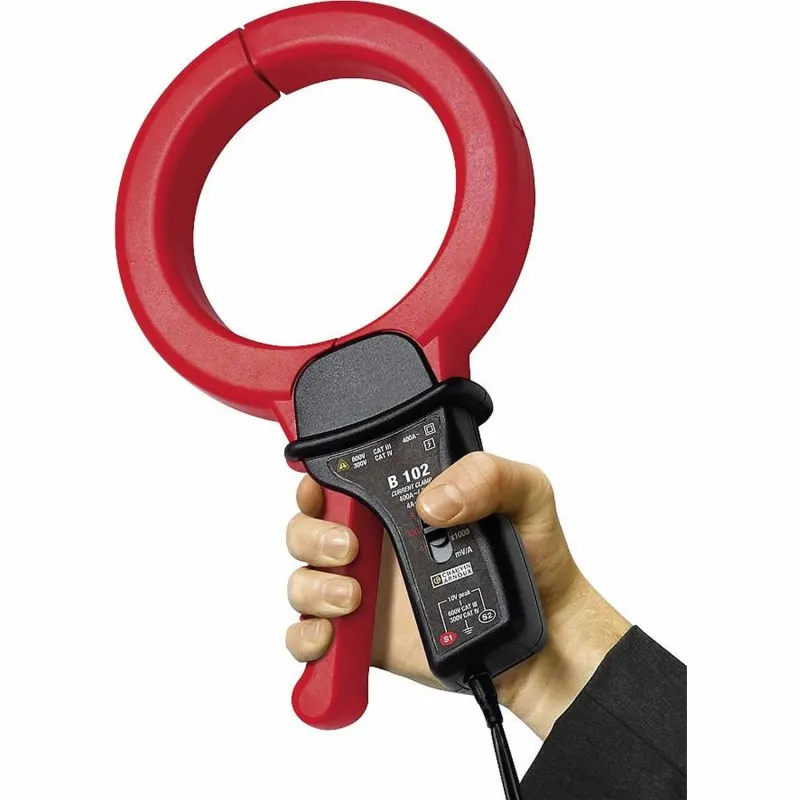

Name: Chauvin Arnoux B102 [P01120083] 0.5 mA - 400 A Earth Leakage Clamp
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Chauvin Arnoux B102 [P01120083] 0.5 mA - 400 A Earth Leakage Clamp

0 reviews • Write a review

from

Rp.41,381,4520

Ex Tax: Rp.41,381,4520

Brand: Chauvin Arnoux
Part Number: P01120083
Availability: 4 - 6 WEEKS
Last Updated: 22 Nov 2024

Chauvin Arnoux

Qty

Add to Cart

Add to Wish List Compare this Product

Description

Chauvin Arnoux B102 [P01120083] 0.5 mA - 400 A Earth Leakage Clamp. The only model in the B series, the B102 is designed to measure earth leakage currents caused by insulation faults. It enables the fault to be located and diagnosed before failure occurs thus avoiding installation shutdown. It is designed specifi cally for locating low-current faults on high-current circuits. The B102 measures differential or leakage current from 500 μA upwards and may be used to measure currents up to 400 A in continuous use (400 A max.). The B102 has two measurement ranges, 1 mV/mA or 1 mV/A. As a leakage current detector, the B102 can be used on single or multiphase systems whether the currents are in or out of phase, balanced or unbalanced. The B02 may be used simply as a high-precision clamp-on current probe. With its 115 mm jaw opening and dynamic measurement range from 500 μA to 400 A, the B102 is a versatile instrument, highly useful in the analysis of unbalanced circuits, leakage currents and earth loop currents. When operated in conjunction with an artifi cial neutral, the B102 can also be used to measure fault currents on 3-phase circuits with no neutral. The B102 clamp measures leakage currents or residual currents as low as 500 µA and can be used with multimeters equipped with a calibre in mV AC. The B102 clamp measures the currents flowing in earth loops as well as leakage currents. It can be used on live installations to detect insulation faults on the earth circuits of single and three-phase networks. For three-wire three-phase systems, use the artifi cial neutral box.
