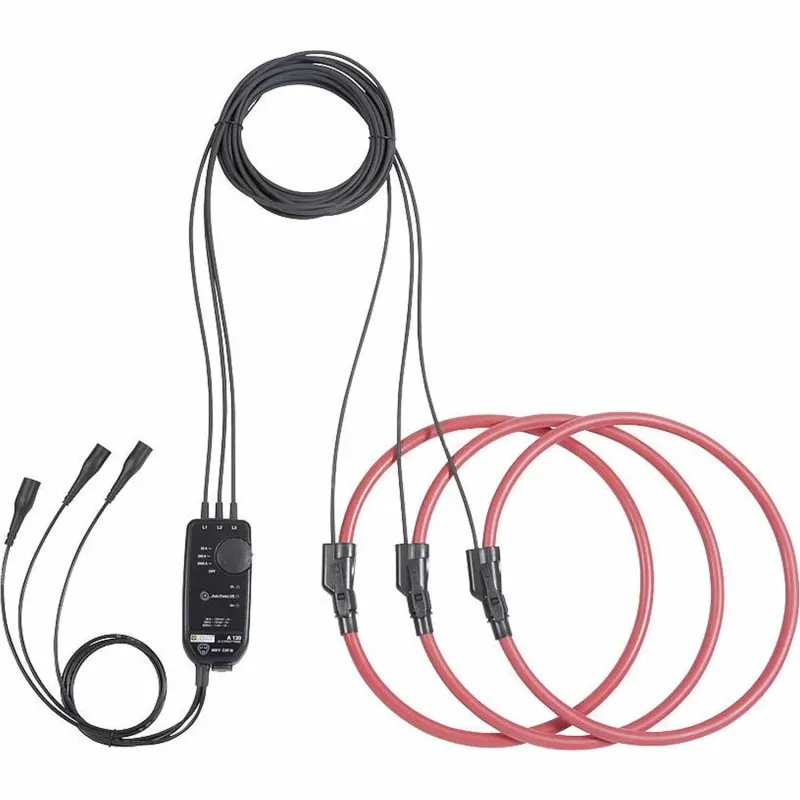

Name: Chauvin Arnoux A130-80 [P01120633] 0.08 - 3000 A AC AmpFlex Flexible Current Clamp
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Chauvin Arnoux A130-80 [P01120633] 0.08 - 3000 A AC AmpFlex Flexible Current Clamp

0 reviews • Write a review

from

Rp.41,551,1290

Brand: Chauvin Arnoux
Part Number: P01120633
Availability: 4 - 6 WEEKS
Last Updated: 22 Nov 2024

Chauvin Arnoux

Qty

Add to Cart

Add to Wish List Compare this Product

Description

Chauvin Arnoux AmpFlex A130-80 [P01120633] 0.08 - 3000 A AC Flexible Current Clamp. The AmpFlex® A130 is a flexible sensor which comprises an active part (Rogowski coil) and a casing containing an electronic processing unit. Unlike current clamps using magnetic circuits, the AmpFlex® models are flexible sensors without magnetic saturation constraints. As a result, they offer excellent linearity, low phase shift, a large dynamic range for measurement (up to several kA) while remaining easy to use. The sensors’ flexibility makes it easy to clamp the conductor, whatever its type (cable, busbar, strand, etc.) and access conditions. The design of the click-together opening and closing system means it can be handled with protective gloves. The AmpFlex® A130 can be connected to the AC voltage input (mV AC, V AC) of any multimeter or measuring instrument equipped with Ø 4 mm female banana plugs. The AmpFlex® A130 can be powered by batteries or a standard external power supply. If the power supply fails, the instrument’s batteries take over. To maximize the battery life, the MiniFlex® A130 has an automatic standby system which can be deactivated at start-up to perform long-term measurement campaigns. The MiniFlex® A130 has 3 green, yellow and red LEDs indicating, respectively, the power supply status, the status of the automatic standby function and any overruns of the measurement capacity.
