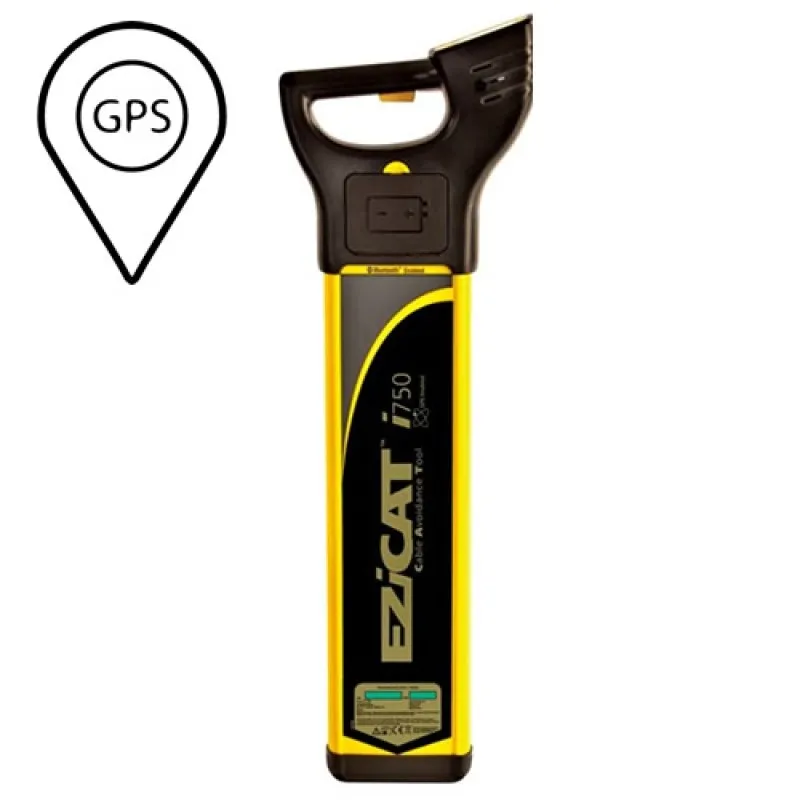

Cable Detection EZiCAT i750 [519802] Cable & Pipe Locator

Cable Detection EZiCAT i750 [519802] Cable & Pipe Locator
Cable Detection EZiCAT i750 [519802] Cable & Pipe Locator
Cable Detection EZiCAT i750 [519802] Cable & Pipe Locator
Cable Detection EZiCAT i750 [519802] Cable & Pipe Locator
Cable Detection EZiCAT i750 [519802] Cable & Pipe Locator
Cable Detection EZiCAT i750 [519802] Cable & Pipe Locator
Cable Detection EZiCAT i750 [519802] Cable & Pipe Locator
Cable Detection EZiCAT i750 [519802] Cable & Pipe Locator
Cable Detection EZiCAT i750 [519802] Cable & Pipe Locator
0 reviews • Write a review
from
Rp.38,750,000
Ex Tax: Rp.38,750,000
  • Brand: Cable Detection
  • Part Number: 519802
  • Availability: 10 - 14 DAYS WORK
  • Last Updated: 01 Apr 2024
Cable Detection Cable Detection
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The Cable Detection EZiCAT i750 is a high performance digital cable locator with depth detection, on-board data capture, wireless Bluetooth data transfer capabilities and a built-in GPS system. This ensures that the EZiCAT i750 records with a pin-point accuracy the ‘location’ of the readings.

The EZiCAT i700 locates buried conductive services by receiving electromagnetic signals which radiate from them. The EZiCAT's intelligent software interprets the signal data and provides the operator with an audible response to the location and direction of buried utilities.

Features:

  • Depth Indication, Both the EZiCAT i750 and EZiCAT i750XF features utility depth indication when used in conjunction with the EZiTX or Sonde. Operators can determine the depth of the buried utility down to 3 metres or the depth of a Sonde down to 9.9 metres.
  • GPS Function, The intelligent Cable Detection EZiCAT i700 cable locator features a fully integrated GPS technology and data logging capability, providing you with information on where, when and how the locator has been used.This information can then be transferred via Bluetooth to LOGiCAT software, making downloading and analysing the data quick and easy. This data is useful to help identify training needs of users and for traceability of locating following a near miss, utility strike or similar incident.
  • Data Logging, The Cable Detection EZiCAT i700 start to record information (every second) after completion of the initial start-up routine. These records (logs) are stored in the locators memory and can be retrieved and transferred via Bluetooth to a PC for analysis. Every activity of the locator is recorded, providing important support information following a near miss, service strike or similar incident. Managers are able to collate data on individual locator users, identify those who are most proactive and vigilant against cable strikes and those who need additional training.
  • Bluetooth Data Transfer, Integrated as standard into the Cable Detection EZiCAT i700 is wireless data transfer, allowing the EZiCAT to integrate seamlessly with mobile mapping technology to log survey data, in addition to enabling wireless Bluetooth data transfer.
  • LOGiCAT Software, With the unique LOGiCAT Software, records can be retrieved and collated helping to increase on site safety, whilst identifying training needs.
  • Signal Strength Indicator (SSI), Enables the user can trace individual services amongst a multiple of services. The numeric display shows the highest reading over the service which is connected to the EZiTX signal transmitter. This ensures the user can follow the service without straying onto another. The SSI mode can also be used to trace the Dual Frequency Sonde with ease.
  • Cable Detection EZiCAT XF, The EZiSYTEM XF range has been specifically designed with long distance tracing in mind. The ability to trace low transmitter frequencies (512Hz, 640Hz) provides a greater tracing range and the ability to locate camera inspection systems. Combined with the upgraded EZiTX XF signal generator, the Cable Detection XF range makes locating underground utilities including power cables, street lighting, telecoms, conductive pipework and camera inspection systems easier than ever before, increasing your on-site safety and ultimately saving you time and money.
  • Increased Frequency Modes, The Cable Detection EZiCAT i750XF features increased frequency modes to allow the user to detect services at a greater range. Power mode 50 Hz or 60 Hz, Radio mode 15 kHz to 60 kHz Auto mode = Power + Radio mode, Transmitter modes 8 kHz, 33 kHz, 512 Hz, 640 Hz

What's In The Box:

  • (1) EZiCAT i750 Locator
  • (6) AA (LR6) Batteries
  • (1) Quickstart Reference Guide
  • (1) Safety Concepts Manual
  • (1) CD-ROM containing User Manual & Certificate of Conformity

Brochure/Datasheet

Instruction manual

    Note: Prices are not binding , subject to change without prior notice
