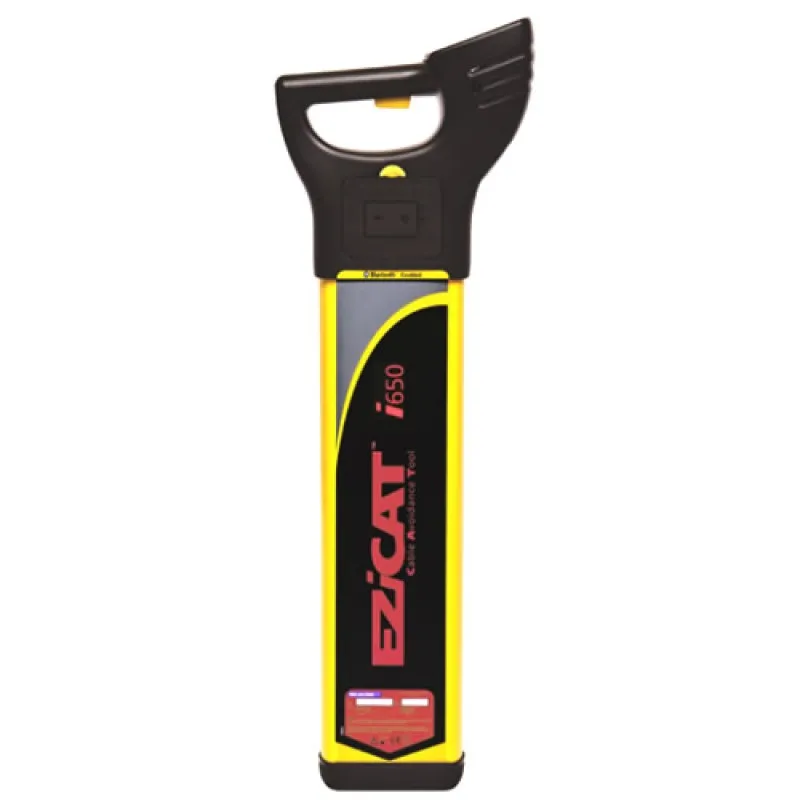

Cable Detection EZiCAT i650 [798031] Cable & Pipe Locator with Depth Indication

Cable Detection EZiCAT i650 [798031] Cable & Pipe Locator with Depth Indication
Cable Detection EZiCAT i650 [798031] Cable & Pipe Locator with Depth Indication
Cable Detection EZiCAT i650 [798031] Cable & Pipe Locator with Depth Indication
Cable Detection EZiCAT i650 [798031] Cable & Pipe Locator with Depth Indication
Cable Detection EZiCAT i650 [798031] Cable & Pipe Locator with Depth Indication
Cable Detection EZiCAT i650 [798031] Cable & Pipe Locator with Depth Indication
Cable Detection EZiCAT i650 [798031] Cable & Pipe Locator with Depth Indication
Cable Detection EZiCAT i650 [798031] Cable & Pipe Locator with Depth Indication
Cable Detection EZiCAT i650 [798031] Cable & Pipe Locator with Depth Indication
from
Rp.30,500,0000
Ex Tax: Rp.30,500,0000
  • Brand: Cable Detection
  • Part Number: 798031
  • Availability: 2 - 4 WEEKS
  • Last Updated: 01 Apr 2024
Cable Detection Cable Detection
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

Advanced buried service location technology
The EZiCAT i650 provides a unique data capture and on board memory function, allowing verification of the locators use and the ability to recall records following a near miss, service strike or similar incident.

The EZiCAT i650 locates buried conductive services by receiving electromagnetic signals which radiate from them. The EZiCAT's intelligent software interprets the signal data and provides the operator with an audiable response to the location and direction of buried utilities. The operator can mark the ground or use a GIS mapping device to note the location.

With the unique LOGiCAT Software, records can be retrieved and collated helping to increase on site safety, whilst identifying training needs.

The EZiCAT i650 makes locating underground cables and pipes a simple and efficient task, increasing your onsite safety and ultimately saving time and money.

Buried service location has never been so easy.

Features:

The EZiCAT i650 locates buried conductive services by receiving electromagnetic signals which radiate from them. The EZiCAT's intelligent software interprets the signal data and provides the operator with an audible response to the location and direction of buried utilities.

Depth Indication
Both the EZiCAT i650 and EZiCAT i650XF features utility depth indication when used in conjunction with the EZiTX or Sonde. Operators can determine the depth of the buried utility down to 3 metres or the depth of a Sonde down to 9.9 metres.

Data Logging
The Cable Detection EZiCAT i650 start to record information (every second) after completion of the initial start-up routine. These records (logs) are stored in the locators memory and can be retrieved and transferred via Bluetooth to a PC for analysis.

Every activity of the locator is recorded, providing important support information following a near miss, service strike or similar incident.

For the first time, managers are able to collate data on individual locator users, identify those who are most proactive and vigilant against cable strikes and those who need additional training.

Wireless Bluetooth Data Transfer
Integrated as standard into the Cable Detection EZiCAT i650 is wireless data transfer, allowing the EZiCAT to integrate seamlessly with mobile mapping technology to log survey data, in addition to enabling wireless Bluetooth data transfer.

LOGiCAT Software
With the unique LOGiCAT Software, records can be retrieved and collated helping to increase on site safety, whilst identifying training needs.

Cable Detection EZiCAT XF
The EZiSYTEM XF range has been specifically designed with long distance tracing in mind. The ability to trace low transmitter frequencies (512Hz, 640Hz) provides a greater tracing range and the ability to locate camera inspection systems.

Combined with the upgraded EZiTX XF signal generator, the Cable Detection XF range makes locating underground utilities including power cables, street lighting, telecoms, conductive pipework and camera inspection systems easier than ever before, increasing your on-site safety and ultimately saving you time and money.

Transmitter Modes
The Cable Detection EZiCAT i650XF features increased transmitter modes to allow the user to detect services at a greater range.

  • 512 Hz and 640 Hz - Enables long distance tracing
  • 8 kHz - Mid range distance tracing
  • 33 kHz - Standard tracing frequency on avoidance locators, used for everyday site use

Network Rail Approved
The Cable Detection EZiCAT i650 and EZiCAT i650XF has been Network Rail Approved to allow the instrument for use on the railway infrastructure. Download Network Rail Approval Certificate

What's In The Box:

  • (1) EZiCAT i650 Locator
  • (6) AA (LR6) Batteries
  • (1) Quickstart Reference Guide
  • (1) Safety Concepts Manual
  • (1) CD-ROM containing User Manual & Certificate of Conformity

Brochure/Datasheet

Instruction manual
