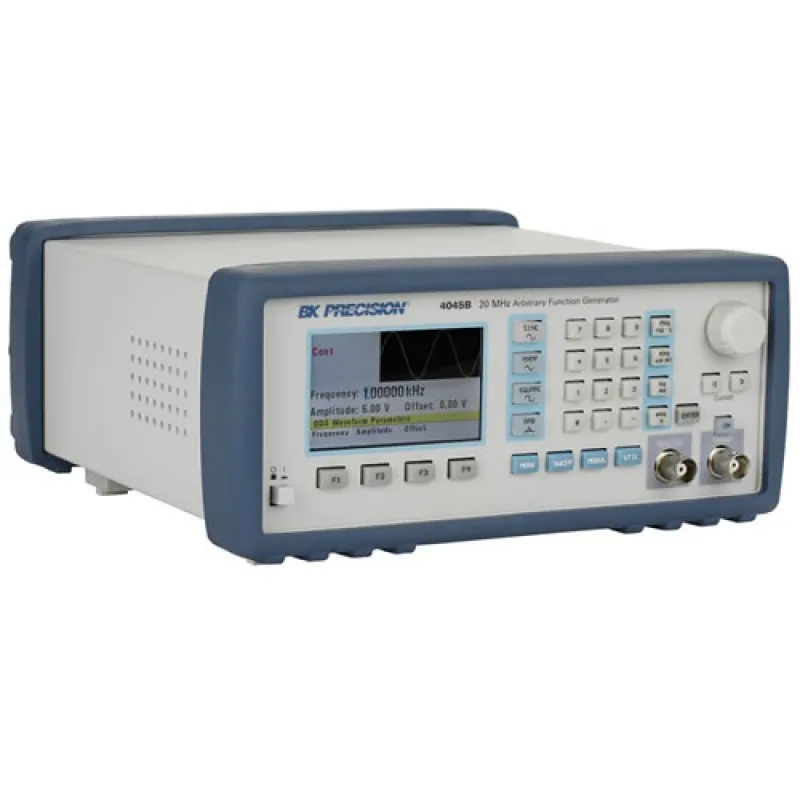

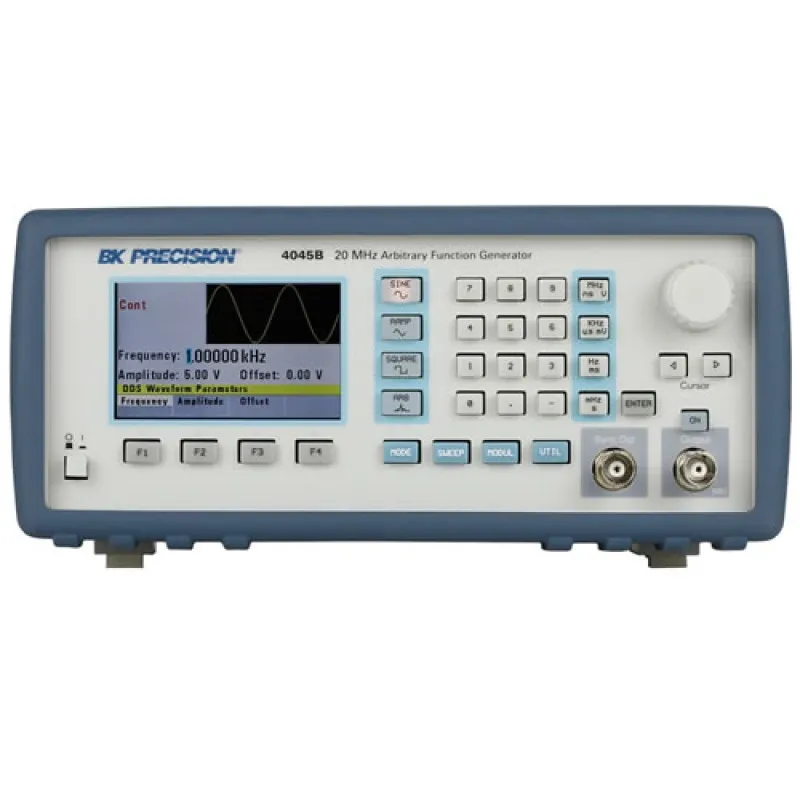

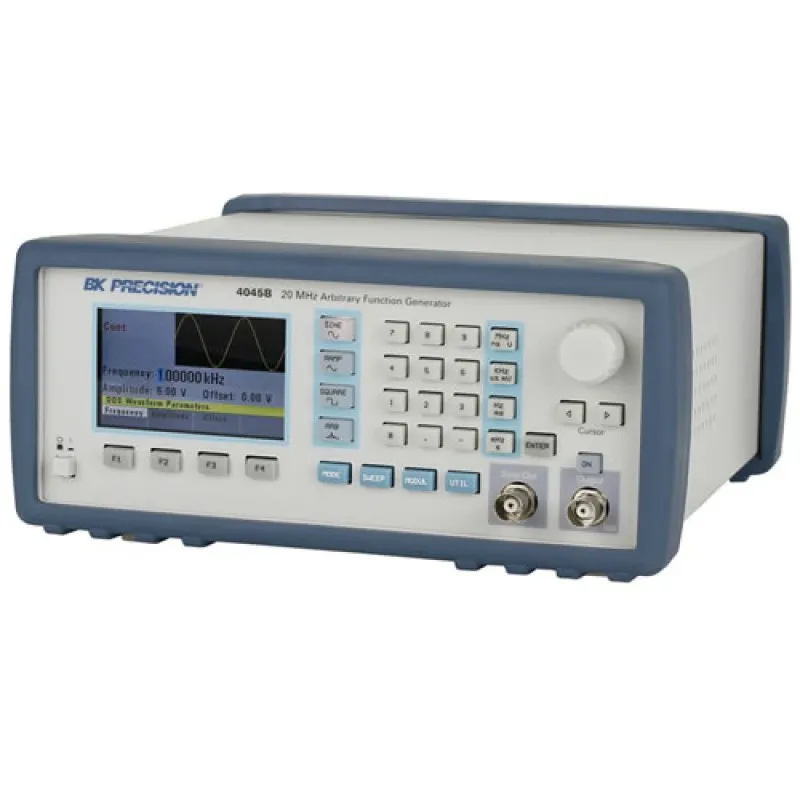

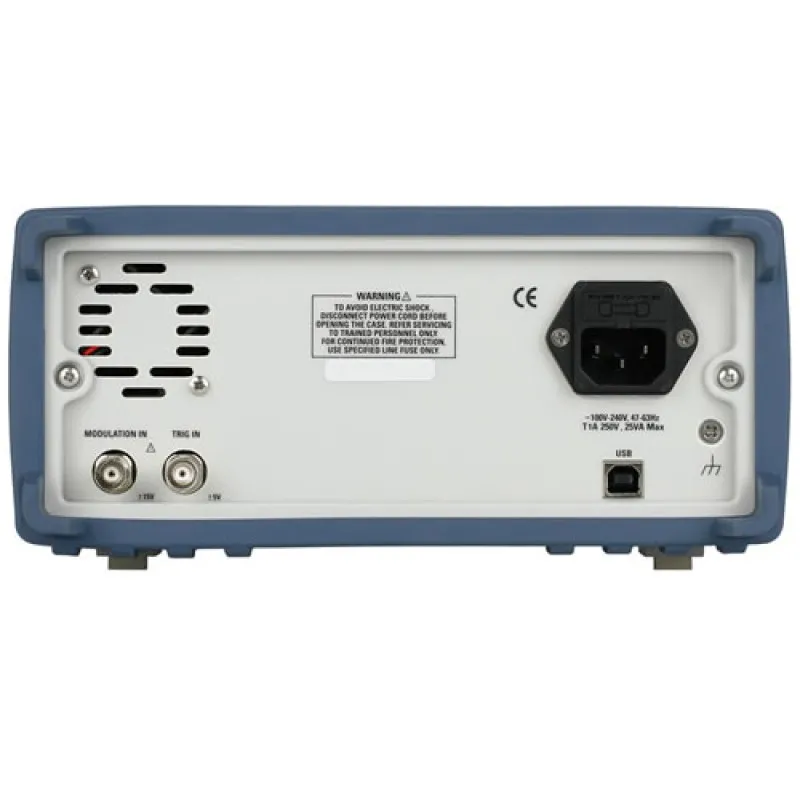

BK Precision 4045B 20 MHz DDS Arbitrary Function Generator

BK Precision 4045B 20 MHz DDS Arbitrary Function Generator
BK Precision 4045B 20 MHz DDS Arbitrary Function Generator
BK Precision 4045B 20 MHz DDS Arbitrary Function Generator
BK Precision 4045B 20 MHz DDS Arbitrary Function Generator
BK Precision 4045B 20 MHz DDS Arbitrary Function Generator
BK Precision 4045B 20 MHz DDS Arbitrary Function Generator
BK Precision 4045B 20 MHz DDS Arbitrary Function Generator
BK Precision 4045B 20 MHz DDS Arbitrary Function Generator
BK Precision 4045B 20 MHz DDS Arbitrary Function Generator
from
Rp.17,350,0000
Ex Tax: Rp.17,350,0000
  • Brand: BK Precision
  • Part Number: 4045B
  • Availability: 4 - 6 WEEKS
  • Last Updated: 26 Mar 2024
BK Precision BK Precision
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The BK Precision 4045B is a versatile 20 MHz DDS sweep function generator with arbitrary waveform capabilities. The BK Precision 4045B instrument generates sine and square waveforms up to 20 MHz, triangle/ramp waveforms up to 2 MHz, and arbitrary waveforms (12-bit, 50 MSa/s, 1k point) with high signal precision and stability.

Providing variable output voltages from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit), the 4045 B Function Generator also offers linear and logarithmic sweep, AM/FM modulation, and a continuously variable DC offset to inject signals directly into circuits at the correct bias level.

Features:

  • Sine, square, and triangle/ramp waveform generation
  • Bright color LCD display with waveform preview
  • Linear and logarithmic sweep
  • AM/FM modulation
  • Adjustable duty cycle
  • Independent DC offset amplifier design allows large offsets on small amplitude (e.g. 10 mV) waveforms
  • Low-jitter square wave generation for simulating reliable clock signals, generating triggers, or validating serial data buses
  • Store and recall instrument settings
  • Output On/Off button
  • Built-in counter
  • Gate and burst mode
  • USB interface with SCPI-compliant command set
  • Short circuit and overvoltage protection on all inputs and outputs

What's In The Box:

  • (1) Instruction Manual on CD
  • (1) Power Cord
  • (1) USB (type A to B)
  • (1) Interface Cable
  • (1) Certificate of Calibration

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice
