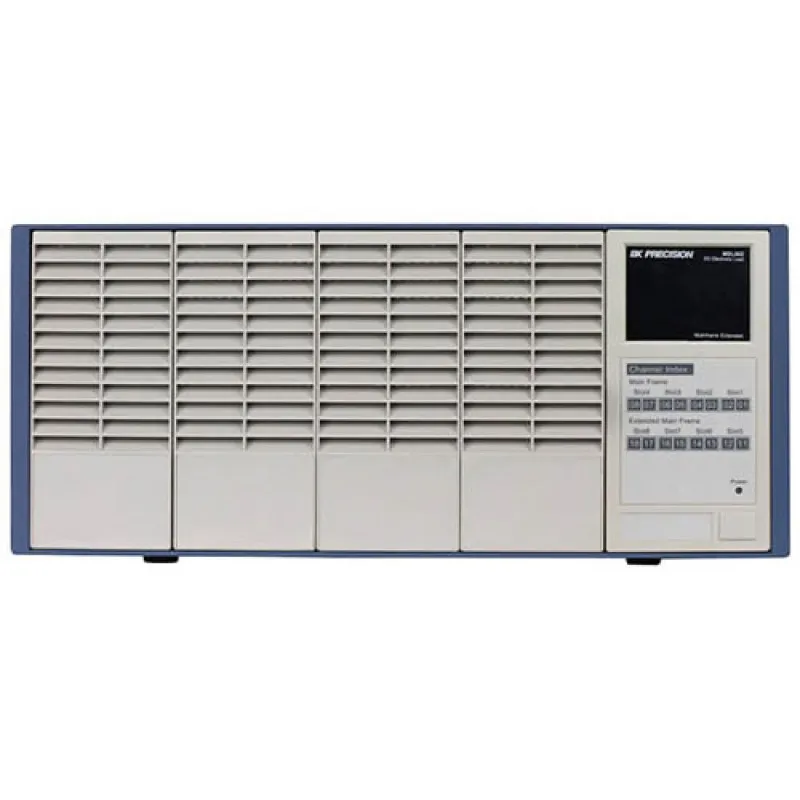

BK Precision MDL002220V [MDL002-220V] Mainframe Extension for Modular Programmable DC Electronic Load, 220 V

BK Precision MDL002220V [MDL002-220V] Mainframe Extension for Modular Programmable DC Electronic Load, 220 V
BK Precision MDL002220V [MDL002-220V] Mainframe Extension for Modular Programmable DC Electronic Load, 220 V
BK Precision MDL002220V [MDL002-220V] Mainframe Extension for Modular Programmable DC Electronic Load, 220 V
BK Precision MDL002220V [MDL002-220V] Mainframe Extension for Modular Programmable DC Electronic Load, 220 V
BK Precision MDL002220V [MDL002-220V] Mainframe Extension for Modular Programmable DC Electronic Load, 220 V
BK Precision MDL002220V [MDL002-220V] Mainframe Extension for Modular Programmable DC Electronic Load, 220 V
BK Precision MDL002220V [MDL002-220V] Mainframe Extension for Modular Programmable DC Electronic Load, 220 V
BK Precision MDL002220V [MDL002-220V] Mainframe Extension for Modular Programmable DC Electronic Load, 220 V
BK Precision MDL002220V [MDL002-220V] Mainframe Extension for Modular Programmable DC Electronic Load, 220 V
from
Rp.43,643,461
Ex Tax: Rp.43,643,461
  • Brand: BK Precision
  • Part Number: MDL002-220V
  • Availability: 4 - 6 WEEKS
  • Last Updated: 17 Nov 2024

The BK Precision MDL002-220V Mainframe Extension is designed as a companion to the MDL001 Modular Programmable Load system. The MDL002-220V is a multi-channel modular programmable electronic load system, with extensions allowing greater power and more room for modules. Six different modules of programmable DC loads ranging in power from 200 W to 600 W provide users the flexibility to test a wide range of power sources from multi-output AC/DC power supplies to batteries, fuel cells, and photovoltaic arrays. The mainframe extension has four slots that can be configured with any assortment of the modules up to 4800 W total with extension. The high-performance electronic load module of the MDL002-220V is capable of operating in constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CW), and constant impedance (CZ) mode, which uses DSP technology to simulate non-linear loads and realistic loading behavior. All panel operation and programming functions are carried out on the MDL001 mainframe panel. A wide range of dynamic loading applications can be simulated through user-programmable slew rates, load levels, duration, and conducting voltage.


Brand: BK Precision
The BK Precision MDL200 is a single channel 80V/40A/200W optional module for the MDL001 Modular Programmable DC Electronic Load Mainframe. The MDL001 ..
from
Rp.35,125,000
Ex Tax:Rp.35,125,000
Add to Cart
Brand: BK Precision
The BK Precision MDL252 is a two channel 80V/20A/250W/50W optional module for the MDL001 Modular Programmable DC Electronic Load Mainframe. The MDL001..
from
Rp.57,745,000
Ex Tax:Rp.57,745,000
Add to Cart
Brand: BK Precision
The BK Precision MDL302 is a two channel 80V/45A/300W/300W optional module for the MDL001 Modular Programmable DC Electronic Load Mainframe. The MDL00..
from
Rp.76,073,000
Ex Tax:Rp.76,073,000
Add to Cart
Brand: BK Precision
The BK Precision MDL305 is a single channel 500V/20A/300W optional module for the MDL001 Modular Programmable DC Electronic Load Mainframe. The MDL001..
from
Rp.52,177,000
Ex Tax:Rp.52,177,000
Add to Cart
Brand: BK Precision
The BK Precision MDL400 is a single channel 80V/60A/400W optional module for the MDL001 Modular Programmable DC Electronic Load Mainframe. The MDL001 ..
from
Rp.47,653,000
Ex Tax:Rp.47,653,000
Add to Cart
Brand: BK Precision
The  BK Precision MDL505 is a single channel 500V/30A/500W optional module for the MDL001 Modular Programmable DC Electronic Load Mainframe...
from
Rp.80,365,000
Ex Tax:Rp.80,365,000
Add to Cart
Brand: BK Precision
BK IT-E153A is a rack mount kit for the MDL series mainframes. You can mount the MDL Series DC Electronic Load in a standard 19-inch rackmount shelf u..
from
Rp.4,499,000
Ex Tax:Rp.4,499,000
Add to Cart
Brand: BK Precision
The BK Precision RK153 is a Bracketed Rack Mount Kit for the MDL001 and MDL002...
from
Rp.2,553,432
Ex Tax:Rp.2,553,432
Add to Cart
