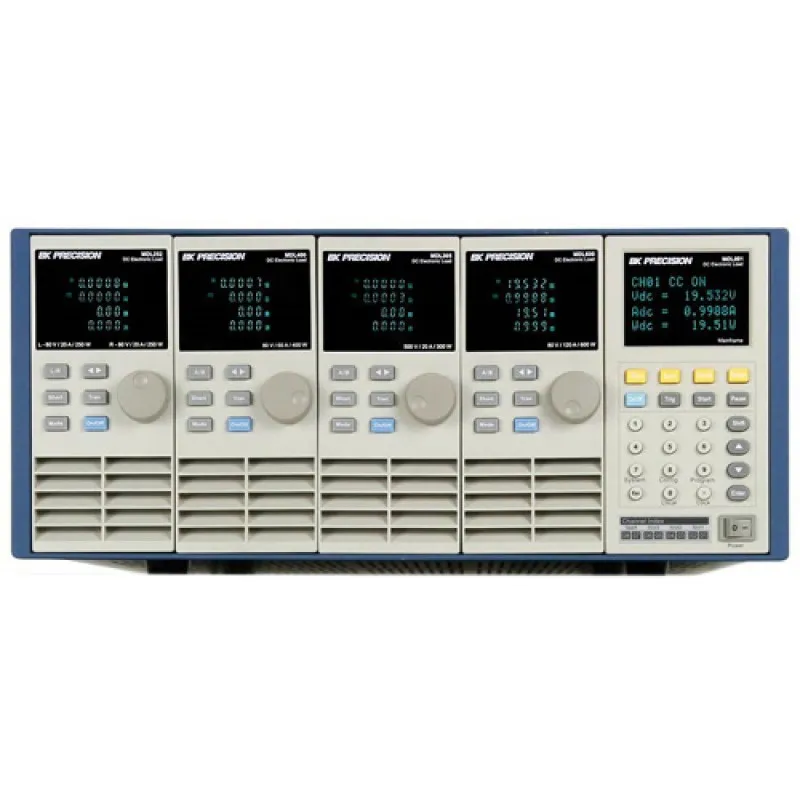

BK Precision MDL001 [MDL001-220V] Modular Programmable DC Electronic Load Mainframe w/RS232 & USB, 220 V

BK Precision MDL001 [MDL001-220V] Modular Programmable DC Electronic Load Mainframe w/RS232 & USB, 220 V
BK Precision MDL001 [MDL001-220V] Modular Programmable DC Electronic Load Mainframe w/RS232 & USB, 220 V
BK Precision MDL001 [MDL001-220V] Modular Programmable DC Electronic Load Mainframe w/RS232 & USB, 220 V
BK Precision MDL001 [MDL001-220V] Modular Programmable DC Electronic Load Mainframe w/RS232 & USB, 220 V
BK Precision MDL001 [MDL001-220V] Modular Programmable DC Electronic Load Mainframe w/RS232 & USB, 220 V
BK Precision MDL001 [MDL001-220V] Modular Programmable DC Electronic Load Mainframe w/RS232 & USB, 220 V
BK Precision MDL001 [MDL001-220V] Modular Programmable DC Electronic Load Mainframe w/RS232 & USB, 220 V
BK Precision MDL001 [MDL001-220V] Modular Programmable DC Electronic Load Mainframe w/RS232 & USB, 220 V
BK Precision MDL001 [MDL001-220V] Modular Programmable DC Electronic Load Mainframe w/RS232 & USB, 220 V
from
Rp.45,900,0000
Ex Tax: Rp.45,900,0000
  • Brand: BK Precision
  • Part Number: MDL001-220V
  • Availability: 4 - 6 WEEKS
  • Last Updated: 27 Mar 2024
BK Precision BK Precision
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The BK Precision MDL001-220V is a multi-channel modular programmable electronic load system. Six different modules of programmable DC loads ranging in power from 200 W to 600 W provide users the flexibility to test a wide range of power sources from multi-output AC/DC power supplies to batteries, fuel cells, and photovoltaic arrays.

The MDL001-220V 220V version mainframe has four slots that can be configured with any assortment of the modules up to 8 channels (up to 16 channels with mainframe extension MDL002-220V). The high-performance electronic load module of the MDL001-220V is capable of operating in constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CW), and constant impedance (CZ) mode, which uses DSP technology to simulate non-linear loads and realistic loading behavior. All panel operation and programming functions are carried out on the MDL001-220V mainframe panel. A wide range of dynamic loading applications can be simulated through user-programmable slew rates, load levels, duration, and conducting voltage.

Features:

  • 220V Version
  • Mainframe Only Modules are sold separately
  • Optional modules offer wide voltage and current range, 0 to 500 V, 0 to 120 A
  • Up to four modules can be installed into the MDL001 mainframe to support up to a total of 8 channels
  • Support for up to 16 channels with (MDL002) mainframe extension
  • Power range up to 2400 W (4800 W with mainframe extension)
  • CC/CV/CR/CW/CZ operating modes
  • Bright VFD display
  • Transient mode up to 25 kHz
  • Synchronous Load on/off function
  • Adjustable slew rate in CC mode
  • Standard LAN, GPIB, USB, and RS-232 interfaces with USBTMC/SCPI protocol support
  • Short circuit test
  • Built-in 16-bit resolution voltage and current measurement (0.1 mV, 0.01 mA)
  • Remote voltage sensing to compensate for the effect of voltage drop in wires
  • Operate identical modules in parallel mode for high current applications
  • OVP/OCP/OPP/OTP and reverse voltage protection

What's In The Box:

  • (1) Power Cord
  • (1) Instruction Manual

Brochure/Datasheet

Instruction manual
